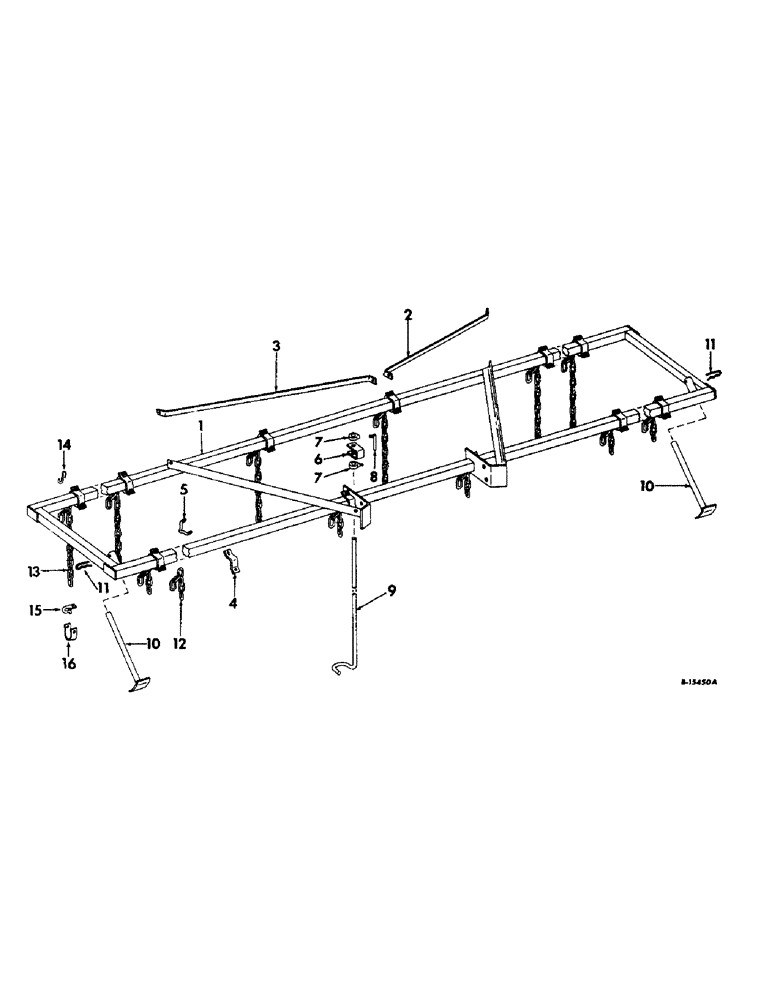

Запчасти Case IH 7 (A-12) - DRAWBAR, 3 SECTION NON-FOLDING, 1965 AND SINCE

1

480831R91

FRAME ASSY

1шт.

2

480839R1

BAR, hitch LH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

3

480840R1

BAR, hitch RH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

4

480841R1

CLAMP, V

12шт.

5

480842R1

BOLT, v-clamp

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

24шт.

120384

WASHER,1/2"

LOCK, 1/2"

24шт.

6

480843R1

CLEVIS, drawbar stand clamp

1шт.

7

2638X

COLLAR

ASSY, rear stand lower

1шт.

21689R1

SCREW

1/2-13 x 3/4 C-Z sq-hd cup-pt set

1шт.

8

481520R11

PIN ASST, stand handle

1шт.

9

480845R1

STAND, rear

1шт.

10

480846R91

STAND ASSY, front

2шт.

11

520037R11

PIN ASSY, quick attachable cot, in stand

2шт.

12

480867R1

CHAIN, pull

6шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

6шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

13

480868R1

CHAIN lift

6шт.

14

480869R1

HOOK, lift chain S

6шт.

15

480823R1

BRACKET, lift chain

6шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 C-Z hex-hd cap

6шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 C-Z stover automatic hex lock

6шт.

16

480877R1

CLAMP, lift chain U

6шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 C-Z hex-hd cap

12шт.

NLS

NO LONGER SERVICED

NUT, 3/8-16 cd-plth hex lock

12шт.
