Запчасти Case IH 690 (39.100.02) - FRONT CONSTANT LEVEL AND PULL FRAME

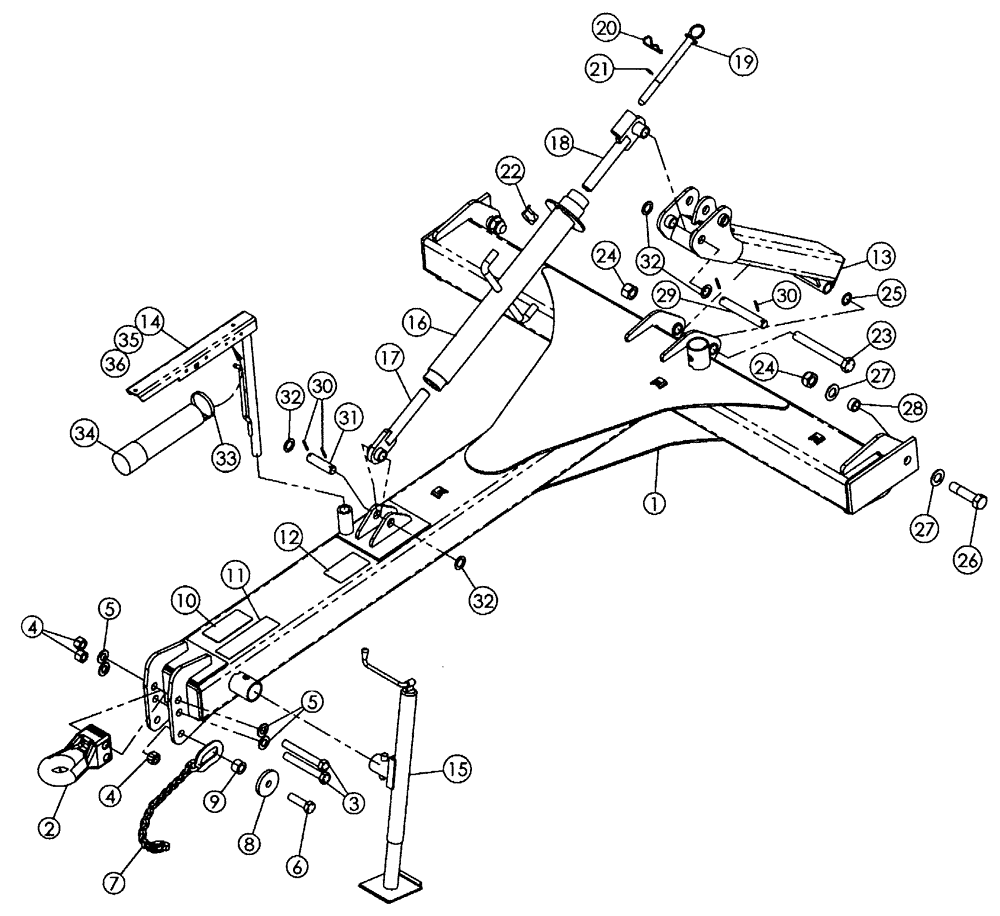

Схема запчастей Case IH 690 - (39.100.02) - FRONT CONSTANT LEVEL AND PULL FRAME
23
36
4
13
8
21
14
1
33
28
9
24
10
15
3
18
24
27
30
34
4
22
16
6
5
30
2
26
11
7
32
5
32
32
19
27
17
35
31
25
20
12
29

Артикул

Название

Примечание

Количество

1

395087A1

FRAME ASSY

Pull

1шт.

2

251366A1

TOW BAR

Hitch Assembly - Category 4, Perfect Hitch

1шт.

3

426-16120

BOLT,Hex, 1" - 8 x 7-1/2", Gr 8

2шт.

4

86992219

LOCK NUT

1, NC Stover

3шт.

5

495-11106

WASHER,1", SAE

4шт.

6

413-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 5

1шт.

7

87393082

CHAIN

Safety, 20200 LB

1шт.

8

06400065

WASHER

Heavy

1шт.

9

04681211

BUSHING

1шт.

10

18534228

DECAL

Caution Sign - Pull Type

1шт.

11

406861A1

DECAL

Warning Sign - Transport

1шт.

12

18534282

WARNING DECAL

Warning Sign - Hydraulic

1шт.

13

395089A1

LINKAGE

Front Constant Level

1шт.

14

05302150

STAND

Swinging Hose Boom

1шт.

15

32252000

JACK ASSY.

Hammerblow

1шт.

NSS

NOT SOLD SEPARAT

Turnbuckle - (395079A1)

1шт.

16

427289A1

TURNBUCKLE

Body

1шт.

17

395042A1

ADJUSTABLE CLEVIS

Rod- Threaded, Lh

1шт.

18

395043A1

ADJUSTABLE CLEVIS

Rod - Threaded, Rh

1шт.

19

395028A2

HITCH PIN

Locking Turnbuckle

1шт.

20

1978738C1

HAIR PIN COTTER

1шт.

21

103-11100

SNAP RING,#100, .925", Ext

Retaining

1шт.

22

18534310

DECAL

Depth Control, Turnbuckle

1шт.

23

399031A1

BOLT

1-1/4, NC x 10, GD 5, ZP

1шт.

24

86992220

NUT

1-1/4, NC Stover

1шт.

25

495-81237

WASHER,1 17/64" x 1 7/8" x 048"

2шт.

26

252079A1

BOLT

1-1/4, NC x 5, GD 8, Special

2шт.

27

496-81017

WASHER,1 3/8" x 2 1/2" x .156", HDN

4шт.

28

398182A1

BUSHING

1-1/4, I.D.

2шт.

29

395490A1

HITCH PIN

Turnbuckle, 1-1/4, ZP, Top

1шт.

30

438-11632

LOCK PIN,1/4" x 2", Slotted

4шт.

31

395489A1

HITCH PIN

Turnbuckle, 1-1/4, ZP, Bottom

1шт.

32

495-81203

WASHER,1 9/32" x 2" x .120"

4шт.

33

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

1шт.

34

30026030

TUBE

Manual Canister

1шт.

Выбрано товаров: 35
