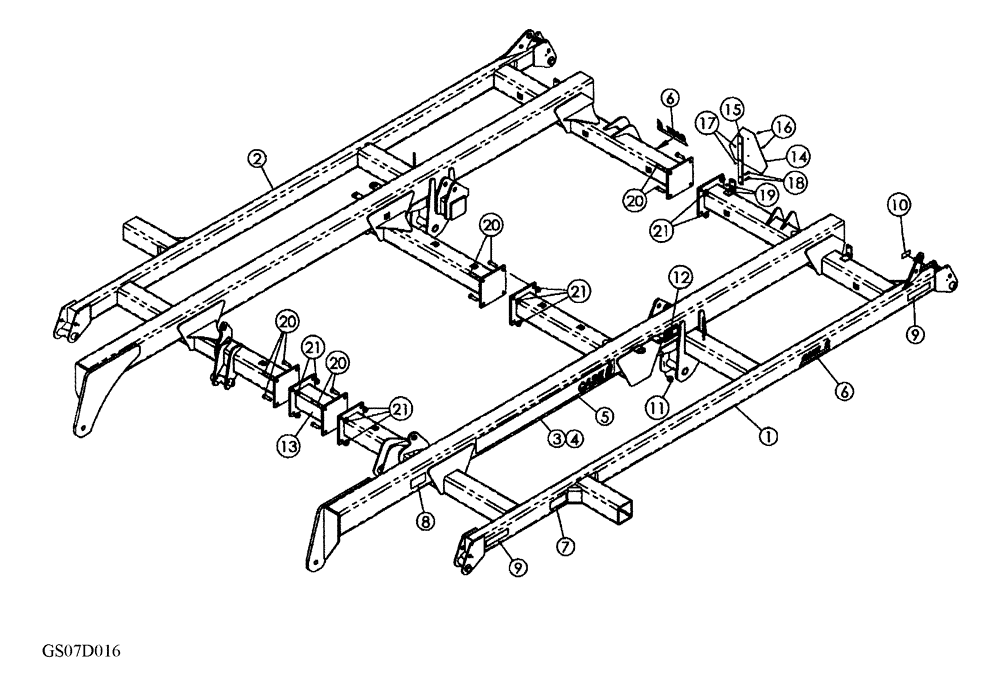

Запчасти Case IH 690 (39.100.01) - MAIN FRAME

1

395066A1

FRAME ASSY

Main, Lh 7-Shank

1шт.

395219A1

FRAME ASSY

Main, Lh 5-Shank

1шт.

2

395067A1

FRAME ASSY

Main, Rh 7-Shank

1шт.

395220A1

FRAME ASSY

Main, Rh 5-Shank

1шт.

3

411224A1

DECAL

Case IH, Lh, Serial Range: -JFH0033099

1шт.

3

87638498

DECAL

Case IH, Lh, Start Serial: JFH0033100

1шт.

4

411225A1

DECAL

Case IH, Rh, Serial Range: -JFH0033099

1шт.

4

87638503

DECAL

Case IH, Rh, Start Serial: JFH0033100

1шт.

5

411226A1

DECAL

DECAL - MRX690, Serial Range: -JFH0033099

2шт.

5

87653276

DECAL

CIH Drip Mold, Start Serial: JFH0033100

2шт.

6

192849A2

DECAL

DECAL - Case IH logo

3шт.

Used On 2006 And Prior Units

1шт.

87653276

DECAL

Case IH

3шт.

Used On 2007 And After Models

1шт.

7

18534277

DECAL

Warning Sign - Spring Compression

2шт.

8

406860A1

DECAL

Warning Sign - Pinch Hazard

2шт.

9

311864A1

REFLECTOR

Amber, 7-Shank

2шт.

10

NSS

NOT SOLD SEPARAT

Plate - Serial Number (87444766)

1шт.

11

112886C1

BUSHING

Tension

2шт.

12

432774A1

DECAL

Shank Depth

2шт.

13

395065A1

SUPPORT TUBE

Spacer

1шт.

NSS

NOT SOLD SEPARAT

Kit - SMV (18581004)

1шт.

14

311860A1

EMBLEM

Plate - Steel Back, SMV

1шт.

15

09983415

BRACKET

SMV

1шт.

16

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

17

86992211

NUT

1/4, NC Stover

2шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

19

86992213

NUT

3/8, NC Stover

2шт.

20

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

NC, ZP

16шт.

21

280375

NUT,3/4"-10, GC

3/4, NC Stover

16шт.
