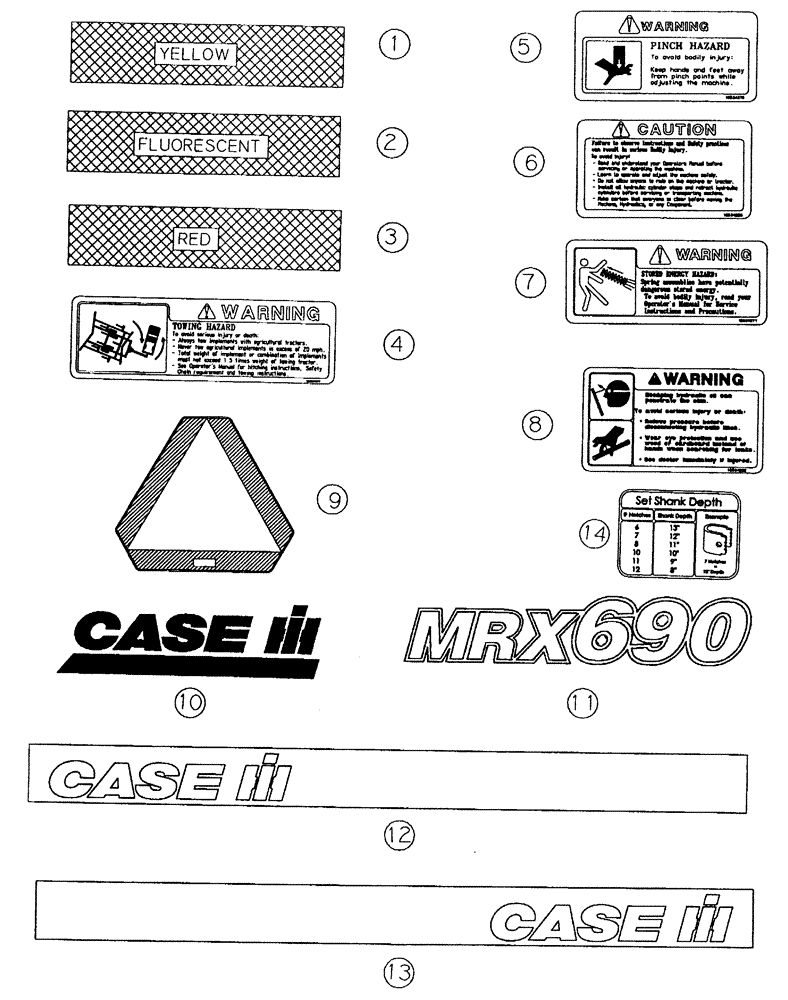

Запчасти Case IH 690 (90.108.03.01) - DECALS (ALL QUANTITIES ARE PER MACHINE)

1

311864A1

REFLECTOR

mber Figures 4-2 & 9-2

10шт.

2

311865A1

REFLECTOR

Fluorescent, Figure 4-2

4шт.

3

311863A1

REFLECTOR

Red, Figure 4-2

4шт.

4

406861A1

DECAL

Towing Hazard, Figure 9-4

1шт.

5

406860A1

DECAL

Pinch Hazard, Figure 9-2

2шт.

6

18534228

DECAL

Pull Type, Figure 9-4

1шт.

7

18534277

DECAL

Spring Energy, Figure 9-2

2шт.

8

18534282

WARNING DECAL

Hydraulic, Figure 9-4

1шт.

9

311860A1

EMBLEM

SMV, Figure 9-2

1шт.

10

192849A2

DECAL

Case IH Logo, Figure 9-2

3шт.

Used On 2006 And Prior Units

1шт.

10

87653276

DECAL

Case IH

3шт.

Used On 2007 And After Models

1шт.

11

411226A1

DECAL

MRX690, Figure 9-2, Serial Range: -JFH0033099

2шт.

12

411225A1

DECAL

Case IH, Rh, Long, Figure 9-2, Serial Range: -JFH0033099

1шт.

13

411224A1

DECAL

Case IH, Lh, Long, Figure 9-2, Serial Range: -JFH0033099

1шт.

14

432774A1

DECAL

Shank Depth, Figure 9-2

2шт.
