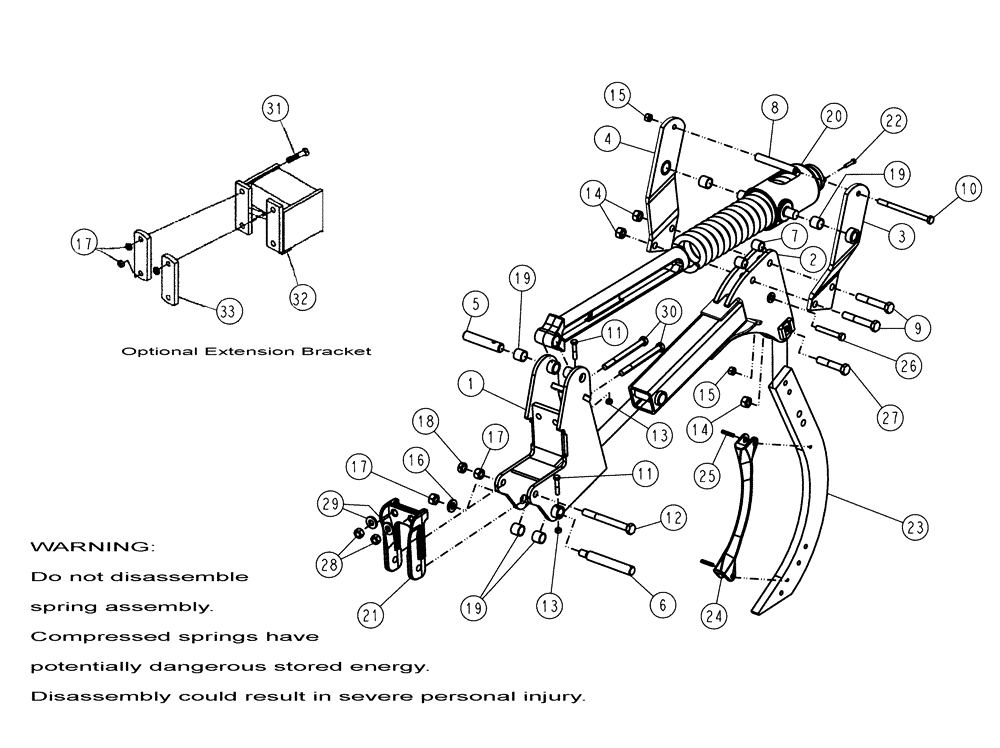

Запчасти Case IH 690 (75.200.16) - SR-13 SHANK ASSEMBLY USED ON 2008 AND AFTER UNITS

1

87564600

MOUNT

Shank Mount

1шт.

2

87564590

SUPPORT

SR-13 Beam

1шт.

3

87637851

PLATE

Spring Plate Assembly, Lh

1шт.

4

87637855

PLATE

Spring Plate Assembly, Rh

1шт.

5

84208990

PIN

1.25 Diameter Pin

1шт.

6

84208990

PIN

1.25 Machined Pin

1шт.

7

87559546

SPACER

Spacer

2шт.

8

87620731

SPACER

Spacer

1шт.

9

87019287

BOLT

5.25 x .875, Gd 5

2шт.

10

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

1шт.

11

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

2шт.

12

413-14128

BOLT,Hex, 7/8" - 9 x 8", Gr 5

1шт.

13

86992215

LOCK NUT,1/2"-13, GC

2шт.

14

87681198

NUT,Hex, 7/8"-9, 0.45 high

GC, .875

3шт.

15

85700693

NUT,5/8" - 11, Gr C

1шт.

16

87012439

WASHER,0.91" ID x 1.75" OD x 0.24" Thk

2шт.

17

425-1014

NUT,7/8"-9, G5

5шт.

18

425-1414

JAM NUT,Jam, 7/8"-9, G5

1шт.

19

87433288

GUIDE BUSHING,31.9mm ID x 38.28mm OD x 31.75mm L

6шт.

20

87640498

SPRING

Spring Assembly

1шт.

21

87441694

CLAMP

Clamp Mount

1шт.

22

113-235

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5, Full Thd

1шт.

23

87553161

POINT RIPPER SHANK

Parabolic Shank

1шт.

24

87549262

SHANK

Shin Cast, Optional

1шт.

25

86624061

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

Used with #24

2шт.

26

86597433

BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 5

1шт.

27

426-1472

BOLT,Hex, 7/8" - 9 x 4-1/2", Gr 8

1шт.

28

280375

NUT,3/4"-10, GC

2шт.

29

17413011

WASHER

13/16 x 1-3/4 OD. 240 ZND

2шт.

30

280441

BOLT,Hex, 3/4" - 10 x 9", Gr 5

2шт.

31

413-14136

BOLT,Hex, 7/8" - 9 x 8-1/2", Gr 5

4шт.

32

87627907

BRACKET

Set-Back, SR-13

1шт.

33

87653050

STRAP

SR-13

2шт.
