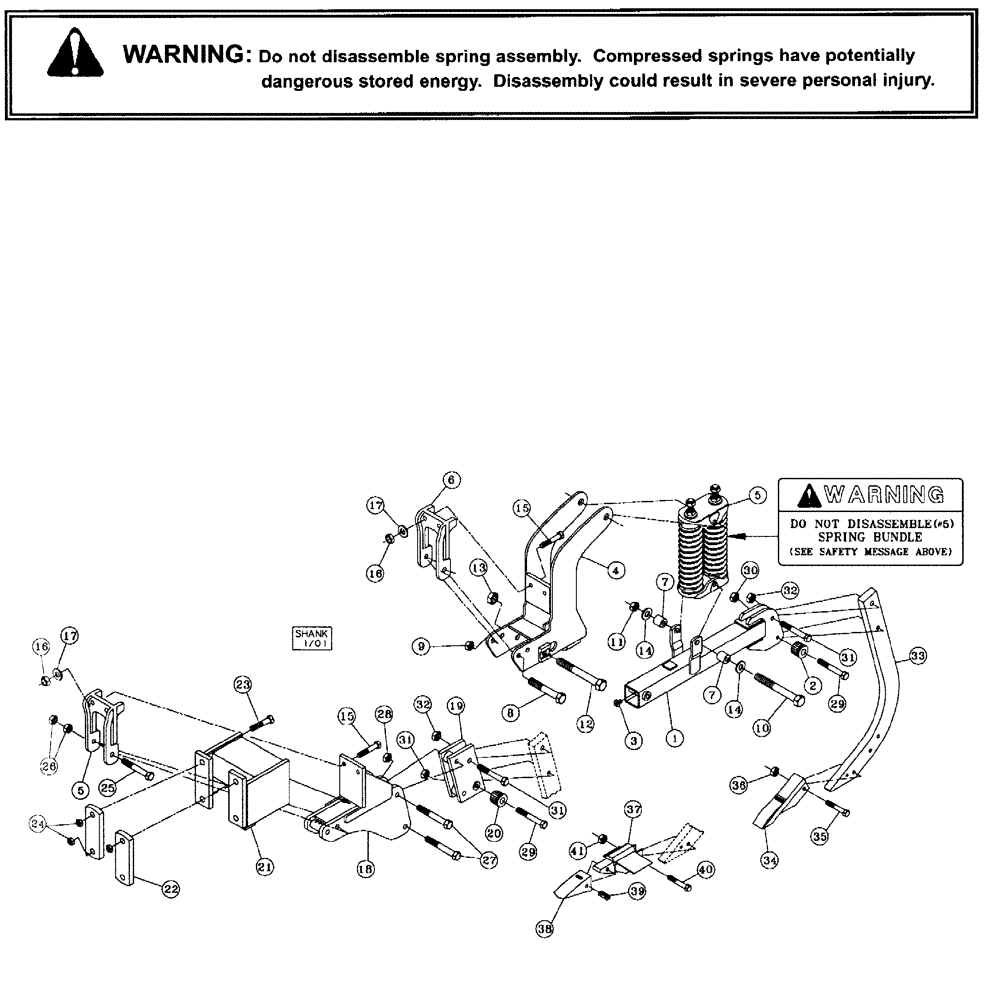

Запчасти Case IH 690 (75.200.15) - SHANK ASSEMBLY

NSS

NOT SOLD SEPARAT

Package - S/R-12 Bundle (87443456)

1шт.

1

398305A1

BEAM ASSY.

S/R-12

1шт.

2

44006510

BUSHING

5/8 Serrated

2шт.

3

219-86

LUBE NIPPLE,1/8" NPTF

Self Tapping

1шт.

4

09651518

MOUNTING PARTS

S/R-12

1шт.

5

09651530

COIL SPRING

1шт.

6

09651540

MOUNTING CLIP

CLAMP, Mount

1шт.

7

44006201

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

Heat Treated

4шт.

8

16901226

SPECIAL BOLT

3/4 NC X 6-7/8 GD 5, ZP

1шт.

9

280375

NUT,3/4"-10, GC

1шт.

10

16901024

BOLT

5/8 NC x 7-1/4 GD 5, ZP, Special

2шт.

11

85700693

NUT,5/8" - 11, Gr C

2шт.

12

16901431

SPECIAL BOLT

7/8 NC x 7-5/8 GD 5, ZP

1шт.

13

87681198

NUT,Hex, 7/8"-9, 0.45 high

7/8 NC Stover

1шт.

14

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

Standard

4шт.

15

280293

BOLT,Hex, 5/8" - 11 x 7", Gr 5

(4 inch tube)

2шт.

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

(6 inch tube)

2шт.

16

425-1010

NUT,5/8"-11, G5

2шт.

17

495-81028

WASHER,21/32" x 1 1/2" x .240"

11/16 I.D. X 1-3/4 O.D. x .250

2шт.

18

09651560

MOUNTING PARTS

Shear Bolt

1шт.

19

09651570

HOLDER

Shank

1шт.

20

44006510

BUSHING

5/8 Serrated

2шт.

21

09576810

BRACKET

10 Set Back

1шт.

22

09576757

STRAP

2шт.

23

413-14136

BOLT,Hex, 7/8" - 9 x 8-1/2", Gr 5

4шт.

24

425-1014

NUT,7/8"-9, G5

4шт.

25

16901217

BOLT

3/4 NC x 6 Special

1шт.

26

425-1412

JAM NUT,Jam, 3/4"-10, G5

2шт.

27

16901205

BOLT

3/4 NC X 4-3/4 A-325

2шт.

28

425-1012

NUT,3/4"-10, G5

2шт.

29

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8 NC X 3-3/4 GD 5, ZP

1шт.

30

425-1010

NUT,5/8"-11, G5

1шт.

31

16901215

BOLT

3/4 NC X 3-3/4 A-325

1шт.

32

425-1012

NUT,3/4"-10, G5

1шт.

33

33020040

SHANK

Parabolic

1шт.

34

87460075

POINT RIPPER SHANK

2 W/Hardware

1шт.

Does Not Inlude Hardware

1шт.

87460069

POINT RIPPER SHANK

5 Tiger® W/Hardware

1шт.

Does Not Inlude Hardware

1шт.

87460070

POINT RIPPER SHANK

7 Tiger® W/Hardware

1шт.

Does Not Inlude Hardware

1шт.

35

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

36

425-108

NUT,1/2" - 13, Gr 5

1шт.

37

87460158

POINT RIPPER SHANK

7 Replaceable Tip Tiger® W/Hardware

1шт.

38

87412311

TIP

Replaceable

1шт.

39

245466A1

RETAINER,Flexpin, Bucket Tooth

3/8, Flex

1шт.

40

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

41

425-108

NUT,1/2" - 13, Gr 5

1шт.
