Запчасти Case IH 690 (75.200.12) - R DISK GANG (7 SHANK FOLDING ASSY) (QUANTITIES FOR ONE GANG ASSEMBLY) 2007 MODELS & AFTER

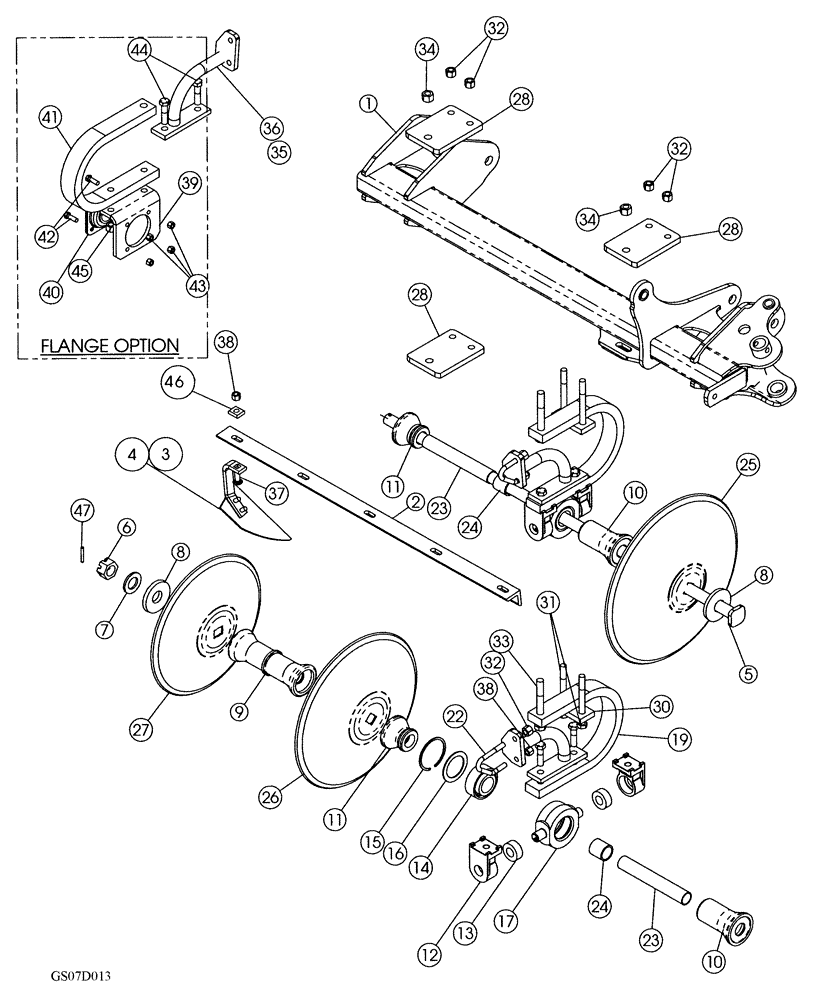

Схема запчастей Case IH 690 - (75.200.12) - R DISK GANG (7 SHANK FOLDING ASSY) (QUANTITIES FOR ONE GANG ASSEMBLY) 2007 MODELS & AFTER
41
24
40
17
36
25
30
8
32
28
38
34
26
44
46
11
35
39
13
4
37
4
23
9
1
24
8
32
7
6
31
10
23
10
5
32
30
12
47
28
28
16
2
27
43
42
22
11
14
33
45
34
15
38

Артикул

Название

Примечание

Количество

1a

87574328

TUBE,1494 mm L

Rear Gang, Lh, 7 Shank

1шт.

1b

87574331

TUBE,1494, 194 mm L

Rear Gang, Rh, 7 Shank

1шт.

2a

87565578

BRACKET

Scraper Angle, Lh

1шт.

2b

87565579

BRACKET

Scraper Angle, Rh

1шт.

3

87567016

BRACKET

Scraper Assembly, Rh

5шт.

4

87567015

BRACKET

Scraper Assembly, Lh

5шт.

5

118889A1

SQUARE BOLT

Arbor, 1-1/2 Round

1шт.

6

425-1224

SLOTTED NUT,1 1/2"-6, G5

1шт.

7

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

Arbor, 1-1/2 Dia.

1шт.

8

139773C1

WASHER

End

2шт.

9

118888A1

HUB

Spacing, 12

3шт.

10

409778A1

SPOOL

Bearing, Long, 12

2шт.

11

409776A1

SPOOL

Bearing, Short, 12

2шт.

NSS

NOT SOLD SEPARAT

Bearing And Standard Trunnion, (409577A1)

2шт.

12

195109A1

TRUNNION

Pivot

4шт.

13

197334A1

BUSHING,32.13mm ID x 63.83mm OD x 25.91mm L

Special Bonded

4шт.

NSS

NOT SOLD SEPARAT

Bearing Assembly Trunnion (409555A1)

2шт.

14

409556A1

BEARING, BALL,55.56mm ID x 110mm OD x 55.56mm W

Trunnion

2шт.

15

101-21433

SNAP RING,#433, 4.641", Int

2шт.

16

193929A1

WASHER,79 mm ID x 109 mm OD x 3.35 mm

Bearing Retainer

2шт.

17

NSS

NOT SOLD SEPARAT

Housing Bearing Trunnion (193907A1)

2шт.

18

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

19

86988372

SPRING

Bearing Standard

2шт.

20

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

4шт.

22

87562173

BOLT

5/8, J-Bolt

2шт.

23

118886A1

BUSHING,38.91mm ID x 44.45mm OD x 295mm L

Arbor Bolt Support

2шт.

24

409805A1

BUSHING

Arbor Bolt Support

2шт.

25

87442997

PLOW DISC

24 x 6.5 mm Thick

4шт.

26

87442995

PLOW DISC

DISK, 22"X6.5MM CC PLAIN

1шт.

27

87442985

PLOW DISC

20 x 6.5 mm Thick

1шт.

28

410081A1

BAR

Gang Holder, Top

3шт.

30

410082A1

STRAP

Gang Holder

2шт.

31

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

4шт.

32

280375

NUT,3/4"-10, GC

3/4, NC, Stover

4шт.

33

413-14112

BOLT,Hex, 7/8" - 9 x 7", Gr 5

2шт.

34

87681198

NUT,Hex, 7/8"-9, 0.45 high

7/8, NC, Stover

2шт.

35

87561687

MOUNTING PLATE

Scraper Angle, Lh

2шт.

36

87562221

MOUNTING PLATE

Scraper Angle, Rh

2шт.

37

416-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 8

5шт.

38

85700693

NUT,5/8" - 11, Gr C

5шт.

NSS

NOT SOLD SEPARAT

Bearing And Standard, Rh Flange (406684A1)

2шт.

NSS

NOT SOLD SEPARAT

Bearing And Standard, Lh Flange (409177A1)

2шт.

39

405202A1

PLATE

Bearing Support

2шт.

40

ST740B

BALL BEARING,55.58mm ID

Flange

2шт.

40

ST740BGV

BEARING

Value, Ball Bearing

2шт.

41

193831A1

SPRING

Bearing Standard, Serial Range: -JFH0033099

2шт.

41

86988372

SPRING

Bearing Standard, Start Serial: JFH0033100

2шт.

42

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

43

86992215

LOCK NUT,1/2"-13, GC

Stover

8шт.

44

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

4шт.

45

280375

NUT,3/4"-10, GC

3/4, Stover

4шт.

46

87623346

WASHER,16.66mm ID x 38.1mm OD x 13.72mm Thk

5/8 x 1-1/2 Sq Special

5шт.

47

438-12036

LOCK PIN,5/16" x 2 1/4", Slotted

1шт.

Выбрано товаров: 53
