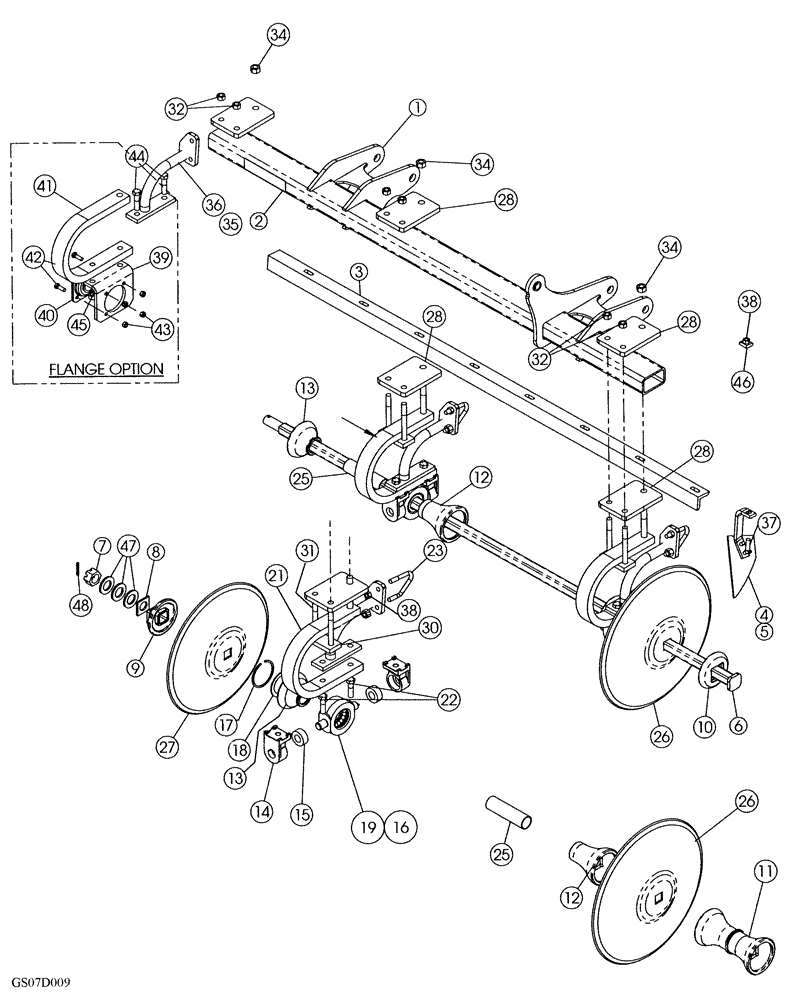

Запчасти Case IH 690 (75.200.04) - FRONT DISK GANG - 5 SHANK ASSEMBLY (QUANTITIES FOR ONE GANG ASSEMBLY) 2007 MODELS & AFTER

1

395097A1

TUBE

Front Gang, Lh 5-Shank

1шт.

1

395098A1

TUBE

Front Gang, Rh, 5-Shank

1шт.

2

311864A1

REFLECTOR

Amber

1шт.

3a

87565570

ANGLE BAR

Scraper, Lh

1шт.

3b

87565571

ANGLE BAR

Scraper, Rh

1шт.

4

87567013

SCRAPER

Scraper, Front, Rh

5шт.

5

87566995

SCRAPER

Scraper, Front, Lh

5шт.

6

404069A1

PLOW BOLT

Arbor, 1-1/2

1шт.

7

425-1224

SLOTTED NUT,1 1/2"-6, G5

Hex

1шт.

8

488836R2

NUT

Nut

1шт.

9

549973R2

SQ HOLE WASHER

End

1шт.

10

60615C1

WASHER

Head

1шт.

11

403931A1

SPOOL

Spacing, 12

3шт.

12

409807A1

SPOOL

Bearing, 12, Long

2шт.

13

409806A1

SPOOL

Bearing, 12, Short

2шт.

NSS

NOT SOLD SEPARAT

Cushion, Bearing And Standard, Trunnion (409577A1)

2шт.

14

195109A1

TRUNNION

Pivot

4шт.

15

197334A1

BUSHING,32.13mm ID x 63.83mm OD x 25.91mm L

Special Bonded

4шт.

NSS

NOT SOLD SEPARAT

Bearing Assembly, Trunnion (409555A1)

2шт.

16

409556A1

BEARING, BALL,55.56mm ID x 110mm OD x 55.56mm W

Trunnion

2шт.

17

101-21433

SNAP RING,#433, 4.641", Int

2шт.

18

193929A1

WASHER,79 mm ID x 109 mm OD x 3.35 mm

Bearing Retainer

2шт.

19

193907A1

HOUSING, BEARING,109.971 mm ID x 133 mm OD x 64 mm

Bearing Trunnion

2шт.

20

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

21

86988372

SPRING

Bearing Standard

2шт.

22

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

4шт.

23

87562173

BOLT

J-Bolt, 5/8

4шт.

25

403922A1

SLEEVE,49.276mm ID x 55.17mm OD x 197mm L

Arbor Bolt Support

2шт.

26

87443006

PLOW DISC

DISK, 24"X6.5MM CC 920ROC

5шт.

27

87443002

PLOW DISC

DISK, 22"X6.5MM CC 920ROC

1шт.

28

410081A1

BAR

Gang Holder, Top

6шт.

30

410082A1

STRAP

Gang Holder

2шт.

31

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

4шт.

32

280375

NUT,3/4"-10, GC

3/4, NC, Stover

4шт.

33

413-14112

BOLT,Hex, 7/8" - 9 x 7", Gr 5

2шт.

34

87681198

NUT,Hex, 7/8"-9, 0.45 high

7/8, NC, Stover

2шт.

35

87561687

MOUNTING PLATE

Scraper Angle, Lh

2шт.

36

87562221

MOUNTING PLATE

Scraper Angle, Rh

2шт.

37

416-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 8

5шт.

38

85700693

NUT,5/8" - 11, Gr C

5/8 Stover

5шт.

NSS

NOT SOLD SEPARAT

Bearing And Standard, Rh, Flange (406684A1)

2шт.

NSS

NOT SOLD SEPARAT

Bearing And Standard, Lh, Flange (409177A1)

2шт.

39

405202A1

PLATE

Bearing Support

2шт.

40

ST740B

BALL BEARING,55.58mm ID

Flange

2шт.

40

ST740BGV

BEARING

Value, Ball Bearing

2шт.

41

193831A1

SPRING

Bearing Standard, Serial Range: -JFH0033099

2шт.

41

86988372

SPRING

Bearing Standard, Start Serial: JFH0033100

2шт.

42

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

43

86992215

LOCK NUT,1/2"-13, GC

Stover

8шт.

44

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

Special

4шт.

45

280375

NUT,3/4"-10, GC

3/4, NC, Stover

4шт.

46

87623346

WASHER,16.66mm ID x 38.1mm OD x 13.72mm Thk

5/8 x 1-1/2 Sq Special

5шт.

47

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

Arbor, 1-1/2 Dia.

1шт.

48

438-12036

LOCK PIN,5/16" x 2 1/4", Slotted

1шт.
