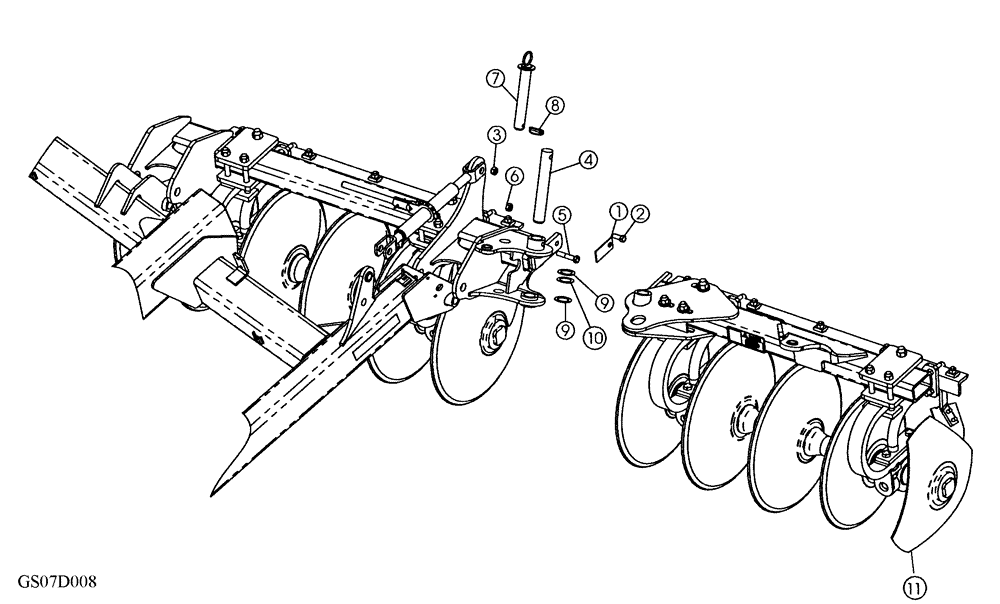

Запчасти Case IH 690 (75.200.02) - REAR GANG WING ASSEMBLY (ALL QUANTITIES ARE FOR ONE WING ASSEMBLY)

1

09661456

SHIM

1шт.

2

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

3

85700693

NUT,5/8" - 11, Gr C

5/8, NC Stover

2шт.

4

399340A1

PIN

Hinge, 1-5/8 Dia.

2шт.

5

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

2шт.

6

85700693

NUT,5/8" - 11, Gr C

2шт.

7

395516A1

PIVOT PIN

Wing Latch, 1-1/2 Dia.

2шт.

8

D33805

PIN

Klik, 7/16x 2

2шт.

9

495-81091

WASHER,1 21/32" x 2 1/2" x .060"

1шт.

10

495-81090

WASHER,42.06mm ID x 63.5mm OD x 0.84mm Thk

1шт.

11

87415788

DISC

1шт.
