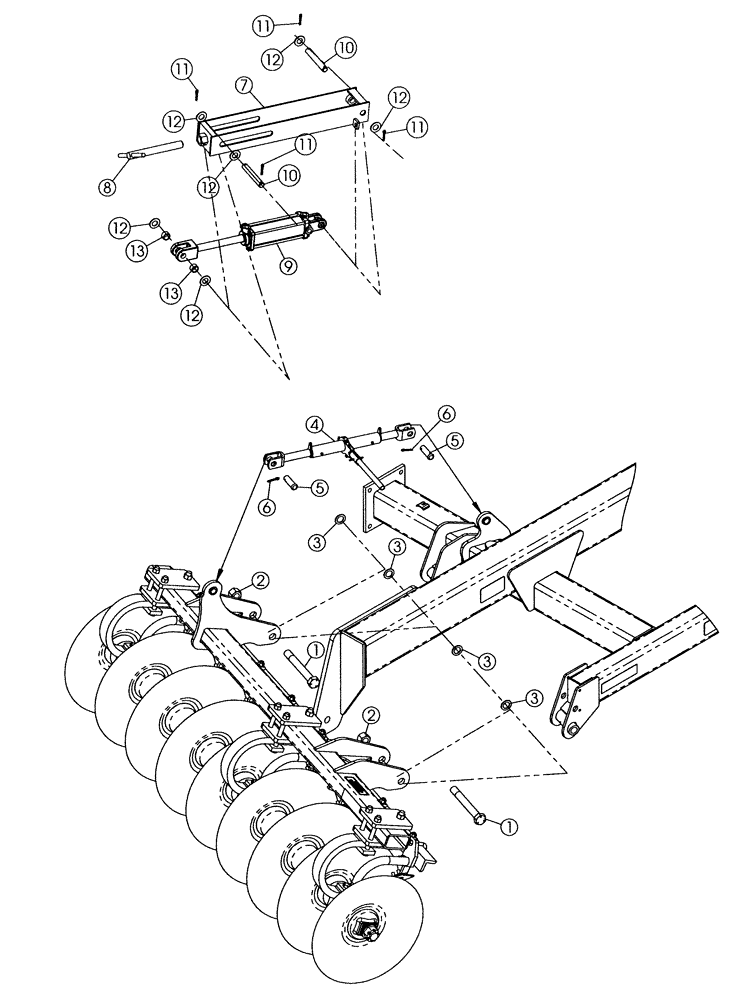

Запчасти Case IH 690 (75.200.01) - DISK DEPTH ADJUST (ALL QUANTITIES ARE FOR ONE GANG ASSEMBLY)

1

399031A1

BOLT

1-1/4, NC x 10, GD 5 ZP

2шт.

2

86992220

NUT

1-1/4 Stover

2шт.

3

495-81203

WASHER,1 9/32" x 2" x .120"

1шт.

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1шт.

4

32400100

TURNBUCKLE

Ratchet Jack - 8 Stroke

1шт.

5

439-51644

HEADED PIN,1" x 2 3/4", G5

2шт.

6

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

7

87550891

STOP

Cylinder Depth Adjust

1шт.

8

429722A1

ADJUSTMENT SCREW,9.70" L

9.70 Thread Length, ZP

1шт.

9

429582A1

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 203.2mm Stroke

Hydraulic, 3 x 8, 3000 PSI, Rephasing, Rh

1шт.

429583A1

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 203.2mm Stroke

Hydraulic, 3-1/4 x 8, 3000 PSI, Rephasing Lh

1шт.

10

429719A1

PIN

Cylinder, 1 Dia.

2шт.

11

432-1624

COTTER PIN,1/4" x 1 1/2"

4шт.

12

495-11106

WASHER,1", SAE

6шт.

13

09102904

SPACER

1 x 3/4

2шт.
