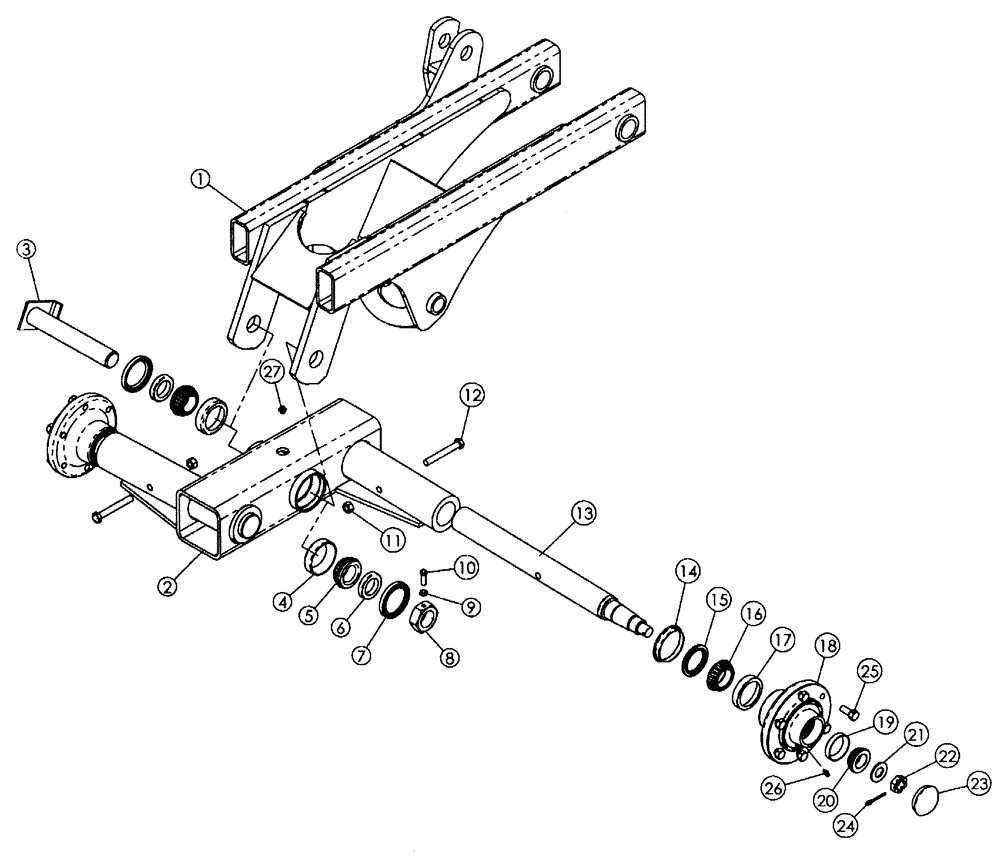

Запчасти Case IH 690 (44.100.01) - WALKING TANDEM ASSEMBLY

1

395077A1

PEDESTAL

Lh Wheel

1шт.

395078A1

PEDESTAL

Rh Wheel

1шт.

2

395068A1

AXLE

Lh Tandem

1шт.

395069A1

AXLE

Rh Tandem

1шт.

3

395485A1

CLEVIS PIN

Tandem Pivot, 1-1/2 Dia.

1шт.

4

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

3.00, Timken #2720

2шт.

5

21871501

BEARING CONE,38.1mm ID x 25.65mm W

1.50 Bore, Timken #2776

2шт.

6

06400573

SPACER

Bearing

2шт.

7

21932510

SEAL

CR #22870

2шт.

8

14032409

NUT

1-1/2, Jam

1шт.

9

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

10

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

1шт.

11

86992215

LOCK NUT,1/2"-13, GC

Stover

2шт.

12

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

NSS

NOT SOLD SEPARAT

Hub & Spindle Assembly - 6-Bolt Heavy (385225A1)

2шт.

13

395060A1

SPINDLE

2-1/8 Dia. .

2шт.

14

594703R1

SLEEVE

Wear

2шт.

15

594702R91

SEAL

Type X15

2шт.

16

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

Timken #LM501349

2шт.

17

663558R1

BEARING CUP

Timken #LM501310

2шт.

18

606468R21

HUB

2шт.

19

651817R1

BEARING CUP

Timken #LM67010

2шт.

20

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

Timken #LM67048

2шт.

21

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

29/32 x 1-3/4 x 11 Ga

2шт.

22

70120D

SLOTTED NUT,7/8"-14

2шт.

23

224066C1

HUB CAP

2шт.

24

432-1024

COTTER PIN,5/32" x 1 1/2"

2шт.

25

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

Wheel, 1/2 X 1

12шт.

26

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

27

219-86

LUBE NIPPLE,1/8" NPTF

Self Tapping

2шт.
