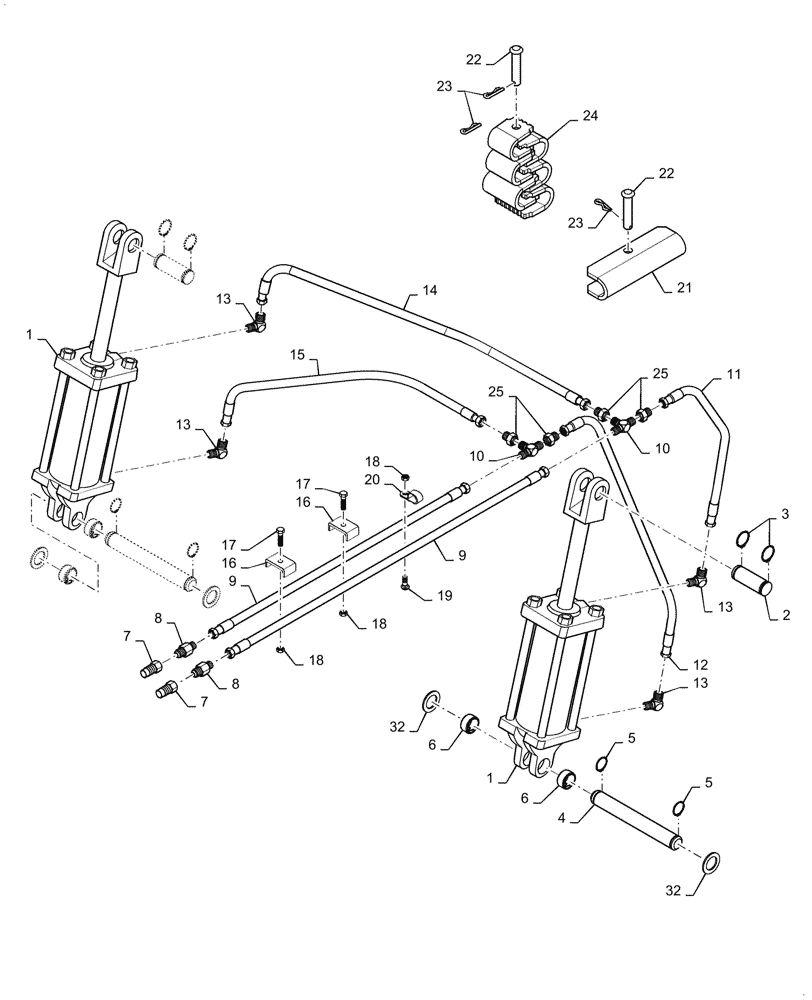

Запчасти Case IH 690 (35.100.01) - MAIN FRAME LIFT SYSTEM HYDRAULICS

1

398561A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 203.2mm Stroke

Hydraulic, 4 X 8, 3000 PSI, Main Lift

2шт.

NSS

NOT SOLD SEPARAT

BAG - 1-14 Cylinder Pins W/Retaining Rings (409851A1)

1шт.

2

427287A1

HEADLESS PIN

Cylinder, 1-1/4 Dia.

2шт.

3

103-16125

SNAP RING,#125, Ext

4шт.

4

395670A1

HEADLESS PIN

Cylinder, 1-1/4 Dia.

2шт.

5

103-16125

SNAP RING,#125, Ext

2шт.

6

44012500

BUSHING

2шт.

7

25705041

COUPLING

3/4 SAEF

2шт.

8

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

2шт.

9

411929A1

HYDRAULIC HOSE

1/2 x 330

2шт.

10

218-594

TEE,3/4"-16, 37 Degree

2шт.

11

1270453C1

HYDRAULIC HOSE

3/8 x 35

1шт.

12

1284301C1

HYDRAULIC HOSE

3/8 x 45

1шт.

13

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

4шт.

14

812381C2

HYDRAULIC HOSE

3/8 x 115

1шт.

15

139654C2

HYDRAULIC HOSE

3/8 x 125

1шт.

16

06200125

HOSE CLAMP

2шт.

17

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(one hose clamp)

2шт.

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

(Two hose clamps)

2шт.

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

(three hose clamps)

2шт.

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

(four hose clamps)

2шт.

18

86992213

NUT

3/8, NC Stover

1шт.

19

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

(up to two cushion clamps)

1шт.

134-3

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 2", Gr 5, Full Thd

(up to four cushion clamps)

1шт.

20

22510710

HOSE CLAMP

Cushion, 3/4

12шт.

21

398307A1

STOP

Stop - 1-1/2 Rod

2шт.

22

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8 Dia. x 3-1/4

4шт.

23

14720411

COTTER PIN

PIN, COTTER Hair, 1/4 x 2

3шт.

24

406386A1

KIT

Stroke Control, 1-1/2 Rod, Inc 26 - 31

1шт.

25

218-786

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

4шт.

26

433026A1

CHANNEL

2.75, Not Shown

2шт.

27

433027A1

CHANNEL

3.00, Not Shown

2шт.

28

433028A1

CHANNEL

3.25, Not Shown

2шт.

29

433029A1

CHANNEL

3.75, Not Shown

2шт.

30

433030A1

CHANNEL

4.00, Not Shown

2шт.

31

433031A1

CHANNEL

4.25, Not Shown

2шт.

32

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

Cylinder Pin

8шт.
