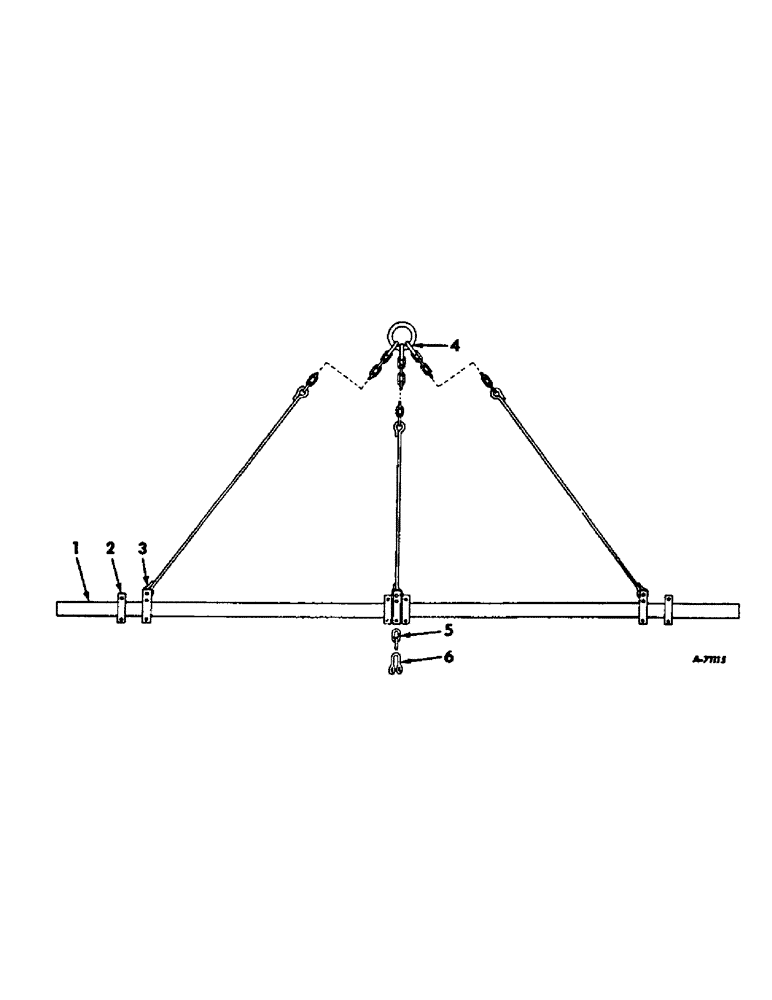

Запчасти Case IH 401 (M-09) - MANUAL CONTROL DRAWBARS, FOR 8, 9 AND 10 FT. HARROWS, BUILT

1

463464R1

DRAWBAR, 10 ft.

1шт.

2

463468R1

CLAMP

draft, 8 for unit B, 12 for unit A

1шт.

NUT, 7/16, 8 for unit B, 12 unit A

1шт.

SCREW, 7/16 x 1 cap, 4 for unit B, 6 for unit A

1шт.

SCREW, 7/16 x 1-1/2 cap, 4 for unit B, 6 for unit A

1шт.

WASHER, 7/16 lock, 8 for unit B, 12 for unit A

1шт.

3

463469R1

CLAMP

draw

6шт.

NUT, 7/16

6шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

3шт.

21939R1

HEADED PIN,1/2" x 1 7/16"

PIN, 1/2 x 1-7/16 C-Z std-hd

3шт.

SCREW, 7/16 x 1-1/4 cap

3шт.

SCREW, 7/16 x 1-1/2 cap

3шт.

WASHER, 7/16 lock

6шт.

4

467118R91

LINK ASSY, draft, 10 ft.

1шт.

5

455386R91

CHAIN, 2 steel links, 4 used unit B, 6 used unit A

1шт.

6

455369R2

CLEVIS

chain shackle, 4 used unit B, 6 used unit A

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), , 4 used unit B; 6 used unit A 3/16" x 1 1/4"

1шт.

21931R1

PIN

1/2 x 1-7/8 C-Z std-hd, 4 used unit B, 6 used unit A

1шт.
