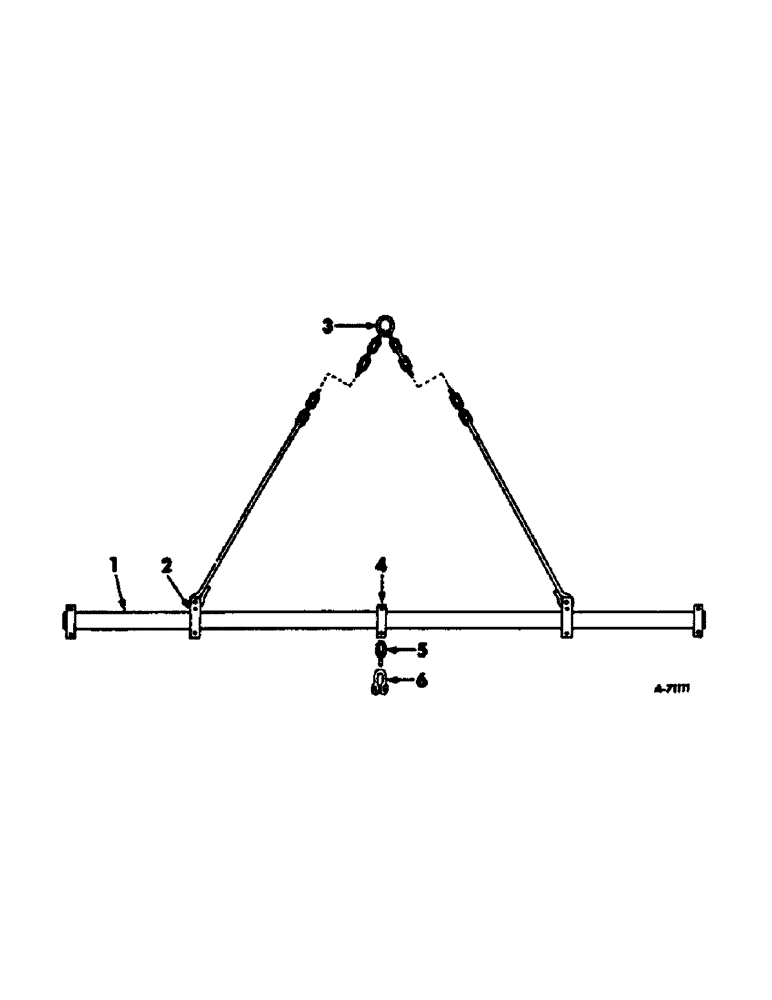

Запчасти Case IH 401 (M-08) - MANUAL CONTROL DRAWBAR, FOR 8 FT. HARROWS, JOINED SECTIONS

1

463463R1

DRAWBAR

1шт.

2

463469R1

CLAMP

draw

4шт.

NUT, 7/16

4шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

21939R1

HEADED PIN,1/2" x 1 7/16"

PIN, 1/2 x 1-7/16 C-Z std-hd

2шт.

SCREW, 7/16 x 1-1/4 cap

2шт.

SCREW, 7/16 x 1-1/2 cap

2шт.

WASHER, 7/16 lock

4шт.

3

467113R91

LINK ASSY, draft

1шт.

4

463468R1

CLAMP

draft

6шт.

NUT, 7/16

6шт.

SCREW, 7/16 x 1 cap

3шт.

SCREW, 7/16 x 1-1/2 cap

3шт.

WASHER, 7/16 lock

6шт.

5

455386R91

CHAIN, 2 steel links

3шт.

6

455369R2

CLEVIS

chain shackle

3шт.

21931R1

PIN

1/2 x 1-7/8 C-Z std-hd

3шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

3шт.
