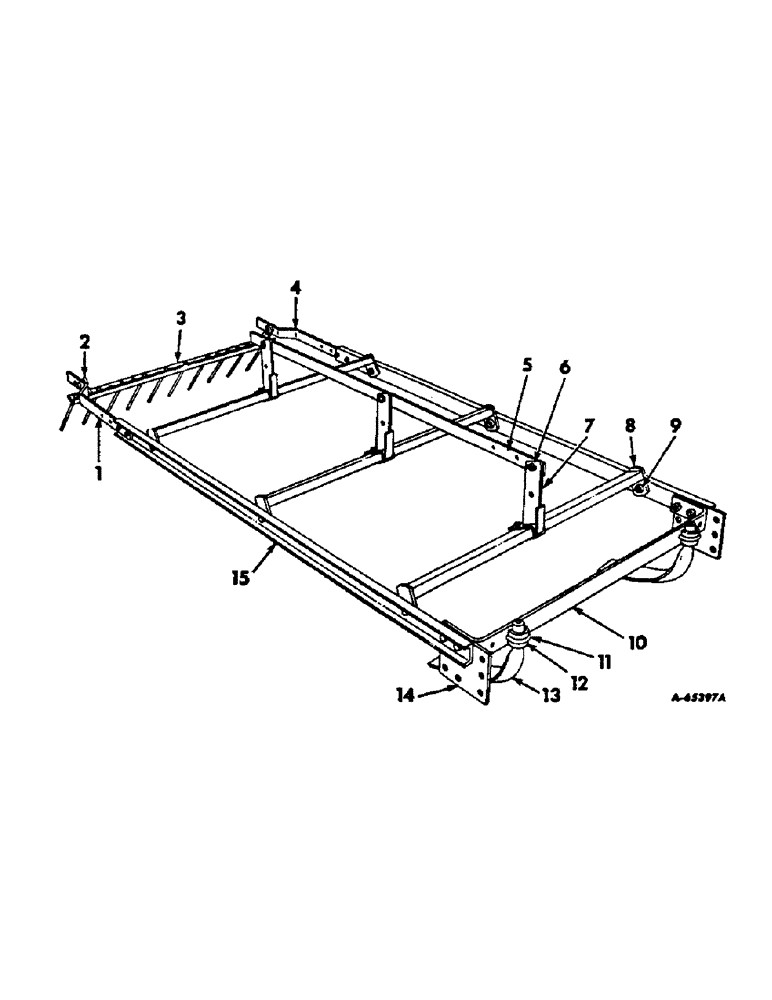

Запчасти Case IH 401 (M-07) - GAUGE SHOE SECTION

1

463462R1

SUPPORT, smoothing bar RH

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

21952R1

PIN, 1/2 x 1-1/8 C-Z std-hd

1шт.

2

458490

BRACKET, hinge

2шт.

BOLT W/NUT, 1/2 x 1-1/4 mach

2шт.

WASHER, 1/2 lock

2шт.

3

458483R21

BAR, smoothing tooth, 3 ft.

1шт.

3

458485R11

BAR, smoothing tooth, 4 ft.

1шт.

4

463461R1

SUPPORT, smoothing bar LH

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

21952R1

PIN, 1/2 x 1-1/8 C-Z

1шт.

5

467139R1

BAR, tooth set, for hydraulic and power control

1шт.

5

467086R1

BAR

tooth set, for manual control lever

1шт.

6

49335K

SPACER,1/2" X-Strng Pipe x .406"

tooth set bar

2шт.

BOLT W/NUT, 1/2 x 1-1/2 mach

2шт.

WASHER, 1/2 lock

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

7

467083R11

SUPPORT ASSY.

STANDARD ASSY, tooth bar

2шт.

BOLT W/NUT, 7/16 x 2 crg

3шт.

WASHER, 7/16 lock

3шт.

8

465843R11

BAR, 3 ft. tooth

3шт.

9

27465B

BUSHING

SPACER, tooth bar bearing

2шт.

BOLT W/NUT, 1/2 x 1-1/2 mach

6шт.

WASHER, 1/2 lock

6шт.

893862R1

WASHER

15/32 x 1-1/4 x 11 ga

6шт.

10

463460R1

CHANNEL, frame cross tie

1шт.

11

463457R1

U-BOLT W/NUTS

2шт.

NUT, 3/8

4шт.

WASHER, 3/8 lock

4шт.

12

463458R1

BRACEKT, swivel shoe

2шт.

13

13848

ROLL PIN

SWIVEL, shoe

2шт.

14

463459R1

PLATE, draft

2шт.

BOLT W/NUT, 1/2 x 1-1/4 mach

4шт.

WASHER, 1/2 lock

4шт.

15

464765R2

CHANNEL, frame side

2шт.

BOLT W/NUT, 3/8 x 1-1/4 mach

4шт.

WASHER, 3/8 lock

4шт.
