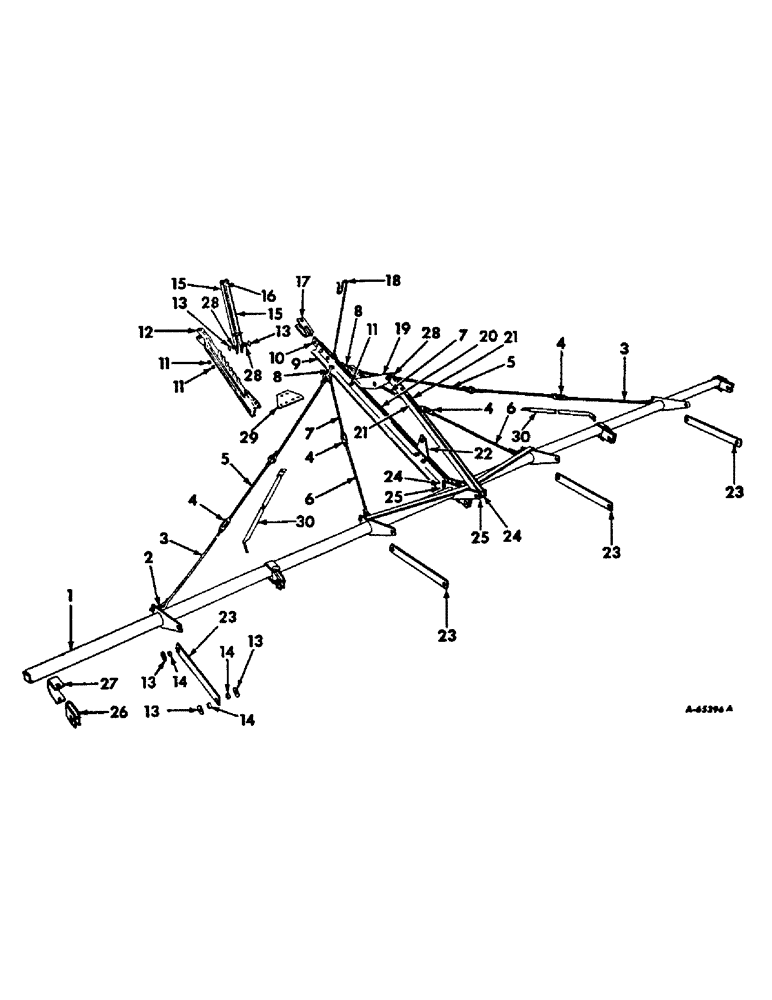

Запчасти Case IH 401 (M-03) - HYDRAULIC AND POWER CONTROL HITCH WITH DRAWBARS, BUILT 1961

1

465815R91

DRAWBAR, unit A

1шт.

1

465818R11

DRAWBAR, unit B

1шт.

1

465821R91

DRAWBAR, unit C

1шт.

1

465823R91

DRAWBAR, unit D

1шт.

1

465824R11

DRAWBAR, unit E

1шт.

1

465826R11

DRAWBAR, unit F

1шт.

1

478264R91

DRAWBAR, unit G

1шт.

NUT, 7/16, 5 used units A, B, and C, 6 used units G, 7 units D, E and F

1шт.

SCREW, 7/16 x 1-1/4 cap, 2 used units A, 3 used units B and C, 4 used units D and F, 5 used units E and G

1шт.

SCREW, 7/16 x 1-1/2 cap, 2 used units A, B and C, 4 used units D, E, F and G

1шт.

SCREW, 7/16 x 2-1/4 cap, 1 used units A thru F

1шт.

SCREW, 7/16 x 2-1/2 cap, 1 used unit G, 2 used unit G, 2 used units A thru F

1шт.

WASHER, 7/16 lock, 5 used units A, B and C, 6 used unit G, 7 used unit D, E and F

1шт.

893862R1

WASHER

15/32 x 1-1/4 x 11 ga C-Z, 4 used units A, B, C and G, 6 used units D, E and F

1шт.

21712R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

2шт.

2

478271R1

U-BOLT, drawbar, 2 for unit G

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

4 used unit G Jam, 1/2"-13, G5

1шт.

2

465838R1

U-BOLT, W/NUTS, drawbar, 2 used units A, B and C, 4 used units D, E and F

1шт.

NUT, 1/2, 8 used units A, B and C, 16 used units D, E and F

1шт.

120384

WASHER,1/2"

LOCK, , 4 used units A, B and C, 8 used units D, E and F 1/2"

1шт.

3

465834R1

LINK, bail, 2 used units E and F

1шт.

3

459849R1

LINK, bail, 2 used unit D

1шт.

4

M383D

TURNBUCKLE

TRUNBUCKLE, 2 used units A, B and C, 4 used units D, E and F

1шт.

NUT, 1/2, 2 used units A, B and C, 4 used units D, E and F

1шт.

NUT, 1/2 LH thread, 2 used units A, B and C, 4 used units D, E and F

1шт.

5

465831R91

LINK, bail, 2 used units D, E and F

1шт.

5

478269R91

LINK ASSY, bail, 100 in., 2 used unit G

1шт.

6

465835R1

LINK, bail, 2 used unit E

1шт.

6

465836R1

LINK, bail, 2 used unit B

1шт.

6

459848R1

LINK, bail, 2 used unit D

1шт.

6

459849R1

LINK, bail, 2 used unit C

1шт.

6

465834R1

LINK, bail, 2 used units A and F

1шт.

7

465837R1

LINK, bail, 2 used units A, B, D, E and F

1шт.

7

465833R91

LINK, bail, 2 used unit C

1шт.

8

459842R1

CLEVIS, bail, 2 used units A thru F

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

COTTER, 2 used units A thru F

1шт.

465839R1

PIN, 1/2 x 2-5/16 dld-std-hd, 2 used units A thru F

1шт.

9

465812R2

ANGLE, hitch tongue LH

1шт.

10

465807R2

PLATE, hitch, for hydraulic control

1шт.

NUT, 7/16

2шт.

SCREW, 7/16 x 1-3/4 cap

2шт.

WASHER, 7/16 lock

2шт.

11

22586N

SPACER,3/8" Pipe x 9/16"

6шт.

12

465810R1

RATCHET, depth control, for power control

1шт.

BOLT W/NUT, 1/2 x 3-1/2 mach

1шт.

NUT, 7/16

2шт.

SCREW, 7/16 x 1-3/4 cap

2шт.

WASHER, 7/16 lock

2шт.

WASHER, 1/2 lock

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

13

893862R1

WASHER

15/32 x 1-1/4 x 11 ga C-Z, 14 used units A, B and C, 16 used units D, E, F and G

1шт.

14

49335K

SPACER,1/2" X-Strng Pipe x .406"

4 used unit A, 6 used units B and C, 8 used units D and F, 10 used units E and G

1шт.

15

465811R1

ARM, lever power lock, for power control

2шт.

16

SA10227

SPACER,3/8" Pipe x 1 1/8"

for power control

2шт.

NUT, 7/16

2шт.

SCREW, 7/16 x 2-1/4 cap

2шт.

WASHER, 7/16 lock

2шт.

17

465806R2

CLEVIS, hitch, for hydraulic control, 1 used units A thru F

1шт.

BOLT W/NUT, 3/4 x 3-1/4 mach, 1 used units A thru F

1шт.

WASHER, 3/4 lock, 1 used units A thru F

1шт.

21712R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z, 2 used units A thru F

1шт.

18

651793R1

SUPPORT

hose, for hydraulic control, 1961 to 1963, 1 used units A thru F

1шт.

BOLT W/NUT, 1/2 x 4 mach, 1 used units A thru F

1шт.

120384

WASHER,1/2"

LOCK, , 1 used units A thru F 1/2"

1шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z, 2 used units A thru F

1шт.

18

651793R1

SUPPORT

hose, for hydraulic support, 1964 and since

1шт.

NUT, 1/2

1шт.

SCREW, 1/2 x 1-3/4 cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

460908

WASHER, 17/32 x 1-1/2 x 11 ga C-Z

1шт.

19

465809R1

ARM, lift, for hydraulic control, 1961 to 1963, 1 used units A thru F

1шт.

NUT, 7/16, 1 used units A thru F

1шт.

SCREW, 7/16 x 1-3/4 cap, 1 used units A thru F

1шт.

WASHER, 7/16 lock, 1 used units A thru F

1шт.

21712R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z, 1 used units A thru F

1шт.

19

478272R1

BAR, lift arm, 1964 and since

1шт.

458188R1

NUT

5/8 lock

2шт.

SCREW, 5/8 x 2 cap

2шт.

20

465813R2

ANGLE, hitch tongue RH, 1 used units A thru F

1шт.

21

465814R1

LINK, connecting

2шт.

NUT, 7/16

1шт.

SCREW, 7/16 x 2-1/4 cap

1шт.

WASHER, 7/16 lock

1шт.

893862R1

WASHER

15/32 x 1-1/4 x 11 ga C-Z

2шт.

22

465808R1

SUPPORT, cylinder, for hydraulic control

1шт.

BOLT W/NUT, 1/2 x 2 mach

2шт.

WASHER, 1/2 lock

2шт.

23

465830R1

STRAP, connecting, 2 used unit A, 3 used units B and C, 4 used units D and F, 5 used units E and F

1шт.

BOLT, 1/2 x 2 mach, 2 used units A, 3 used units B and C, 4 used units D and F, 5 used units E and G

1шт.

NUT, 1/2, 2 used unit A, 3 used units B and C, 4 used unit D and F, 5 used units E and G

1шт.

PIN, 3/32 x 1-1/4 cotter, 2 used unit A, 2 used units B and C, 4 used units D and F, 5 used units E and G

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z, 4 used unit A, 6 used units B and C, 8 used units D and F, 10 used units E and G

1шт.

24

K11064

SPACER,3/8" Pipe x 1 1/4"

torque arm

2шт.

25

614119R1

BLOCK, spacer, 1 used units B, C, E and G, 2 used units A, D and F

1шт.

26

465829R1

CLEVIS, draft, 3 used units D and F, 6 used units E and G

1шт.

465839R1

PIN, 1/2 x 1-5/16 C-Z std-hd, 3 used unit A, 4 used units B and C, 5 used units D and F, 6 used units E and G

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), , 3 used unit A; 4 used units B and C; 5 used units D and F; 6 used units E and G 3/16" x 1 1/4"

1шт.

27

465828R2

STRAP, draft, 3 used units A, 4 used units B and C, 5 used units D and F, 6 used units E and G

1шт.

BOLT W/NUT, 7/16 x 3-1/2 crg, 3 used unit A, 4 used units B and C, 5 used units D and F, 6 used units E and G

1шт.

WASHER, 7/16 lock, 3 used unit A, 4 used units B and C, 5 used units D and F, 6 used units E and G

1шт.

28

RA927R

BUSHING

SPACER, 3/8 x 3/8 long, 6 used unit A, 7 used units B and C, 8 used units D, F and G, 9 used unit E

1шт.

29

478267R1

BAR, cross plate, 1 used unit G

1шт.

27465B

BUSHING

SPACER, cross bar, 17/32 x 1/2, 4 used unit G

1шт.

NUT, 1/2, 3 used unit G

1шт.

SCREW, 1/2 x 1-3/4 cap, 3 used unit G

1шт.

SCREW, 1/2 x 2-1/4 cap, 1 used unit G

1шт.

120384

WASHER,1/2"

LOCK, , 3 used unit G 1/2"

1шт.

30

478268R1

PIPE, brace, 2 used unit G

1шт.

13544S

SPACER, brace pipe, 7/16 x 3/8, 2 used unit G

1шт.

PO15237

SPACER

brace pipe, 7/8 x 1/2, 2 used unit G

1шт.

271501

SOCKET

NUT, 1/2-13 C-Z hex., lock, 2 used unit G

1шт.

NUT, 1/2, 2 used unit G

1шт.

SCREW, 7/16 x 1-1/2 cap, 2 used unit G

1шт.

SCREW, 1/2 x 2 cap, 2 used unit G

1шт.

WASHER, 1/2 lock, 2 used unit G

1шт.

893862R1

WASHER

15/32 x 1-1/4 x 11 ga C-Z, 2 used unit G

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z, 2 used unit G

1шт.
