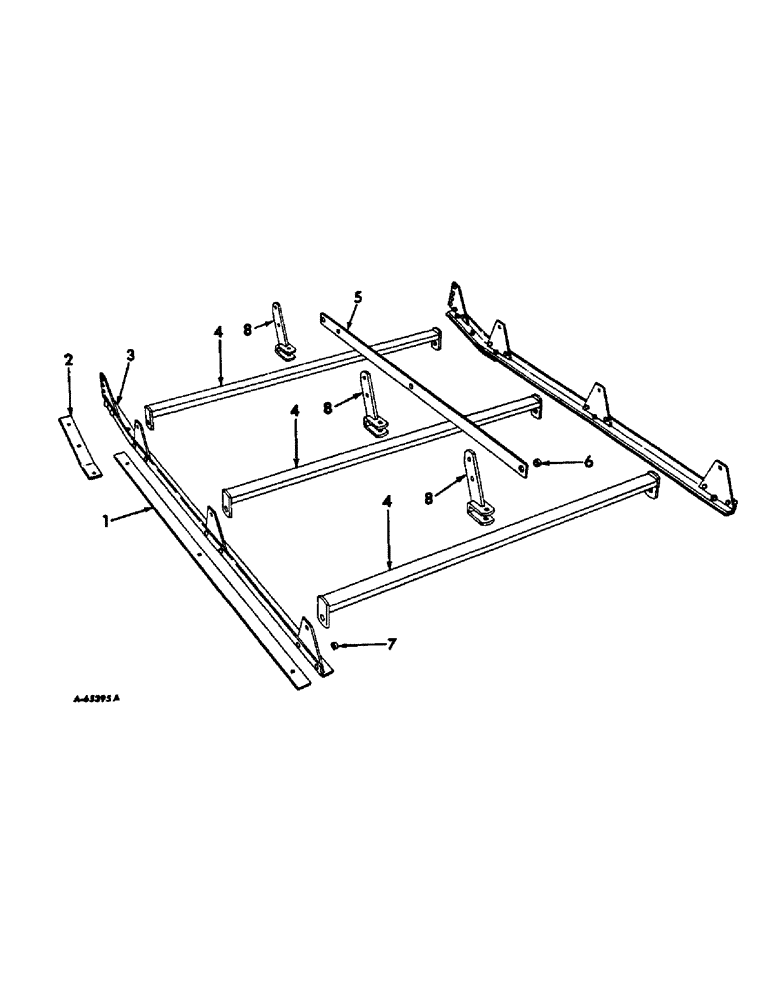

Запчасти Case IH 401 (M-02) - HARROW SECTION

1

464749R1

BAR

SOLE, frame side bar

2шт.

BOLT W/NUT, 1/2 x 1-3/4 crg

3шт.

BOLT W/NUT, 3/8 x 1 no. 3 plow

4шт.

WASHER, 3/8 lock

4шт.

WASHER, 1/2 lock

3шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

3шт.

2

464750R1

SUPPORT

SHOE, front

2шт.

BOLT W/NUT, 3/8 x 1 crg

4шт.

BOLT W/NUT, 3/8 x 1-1/4 no. 3 plow

2шт.

WASHER, 3/8 lock

6шт.

3

464745R91

FRAME

BAR ASSY, frame side LH

1шт.

3

464746R91

FRAME

BAR ASSY, frame side RH

1шт.

RIVET, 3/8 x 1 b-hd

6шт.

RIVET, 7/16 x 1 b-hd

2шт.

4

465840R11

BAR

4 ft. tooth, 3 for units C and D

1шт.

4

465843R11

BAR, 3 ft. tooth, 3 used units A and B

1шт.

5

467086R1

BAR

tooth set, for manual control lever

1шт.

5

467139R1

BAR, tooth set, for hydraulic and power control

1шт.

6

49335K

SPACER,1/2" X-Strng Pipe x .406"

tooth set bar

2шт.

BOLT W/NUT, 1/2 x 1-1/2 mach

2шт.

WASHER, 1/2 lock

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

7

27465B

BUSHING

SPACER, tooth bearing

6шт.

BOLT W/NUT, 1/2 x 2-1/4 mach

3шт.

WASHER, 1/2 lock

3шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

6шт.

8

467083R21

SUPPORT ASSY.

STANDARD, tooth bar

3шт.

BOLT W/NUT, 7/16 x 2 crg

3шт.

WASHER, 7/16 lock

3шт.
