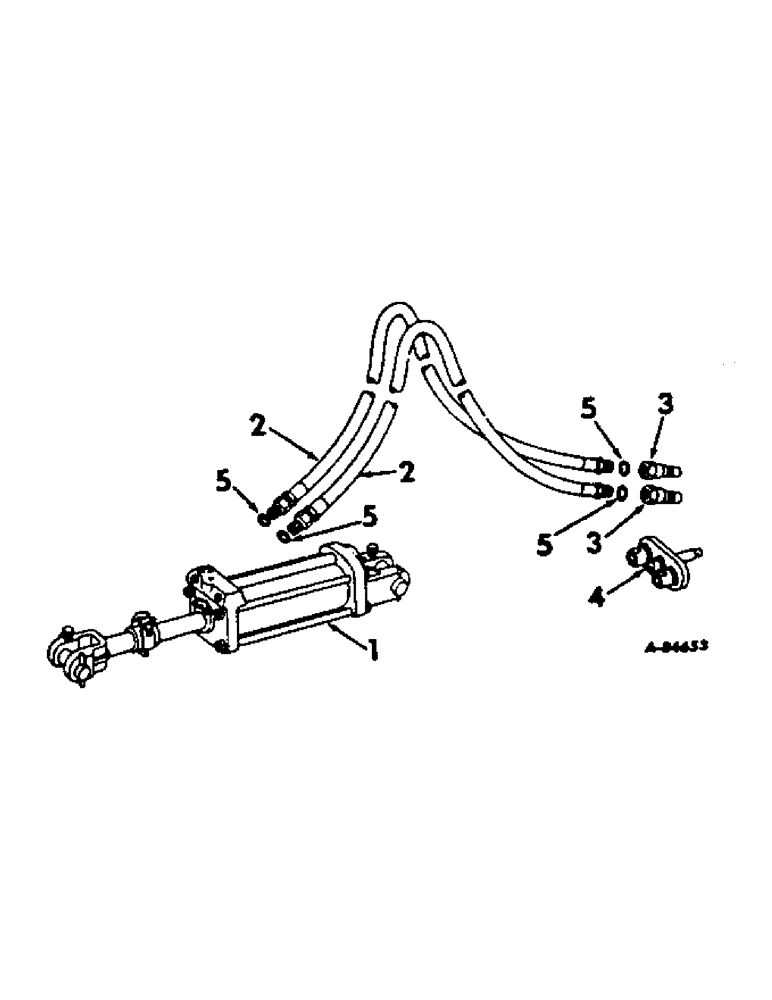

Запчасти Case IH 401 (M-15) - HYDRAULIC CYLINDER AND CONNECTIONS

Tractors w/tapered thread fittings, consists of all unmarked parts and those marked unit A

1шт.

Tractors w/stragiht thread fittings, consists of all unmarked parts and those marked unit B

1шт.

1

360994R94

CYLINDER ASSY.

CYLINDER ASSY, hydraulic 2-1/2 x 8 in. unit A

1шт.

1

360997R95

CYLINDER

ASSY, hydraulic 3-1/2 x 8 in. unit A

1шт.

1

371291R97

CYLINDER

ASSY, hydraulic 2-1/2 x 8 in. unit B, refer to cyl, 1 for components

1шт.

1

371292R95

CYLINDER

ASSY, hydraulic 3-1/2 x 8 in., unit B, refer to cyl, 1 for components

1шт.

2

366088R91

HOSE

ASSY, 1/2 x 61 in., unit A

2шт.

2

372433R91

HOSE ASSY, 1/2 x 60 in., unit B

2шт.

3

395149R1

QUICK MALE COUPLING

COUPLING ASSY, self-sealing male, unit B

2шт.

4

353216R91

COUPLING

ASSY, breakway, unit A

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 4 for unit B

1шт.
