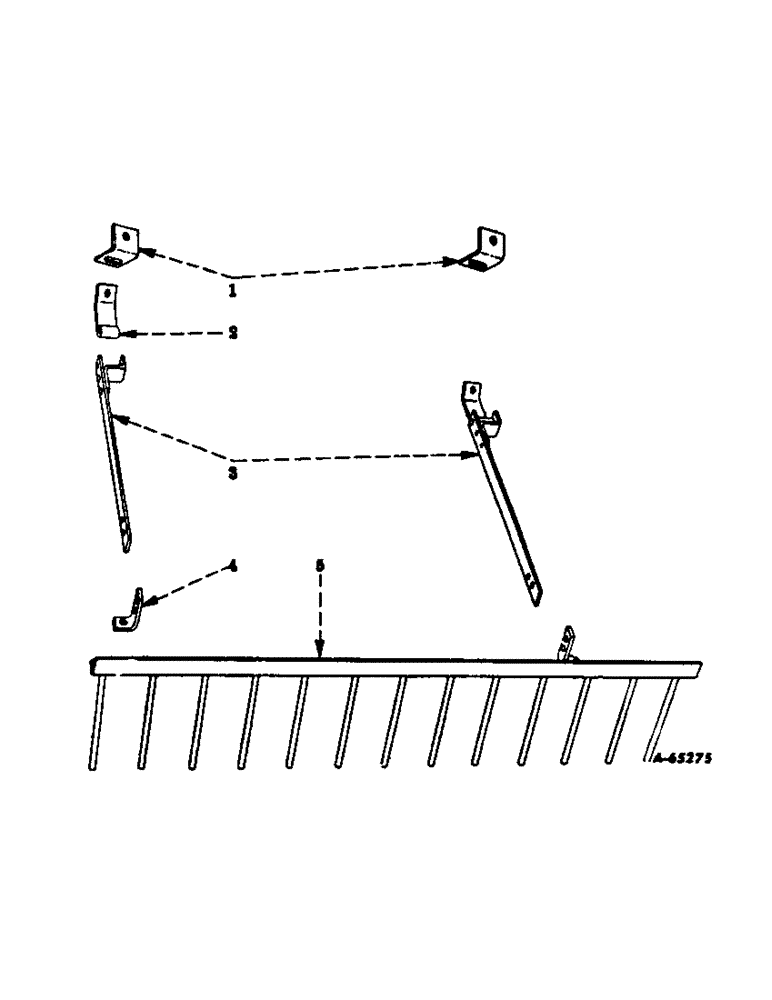

Запчасти Case IH 401 (M-14) - SMOOTHING ATTACHMENT, SPECIAL, PRODUCT GRAPHICS

1

465844R1

ANGLE

CLAMP, tooth

2шт.

BOLT W/NUT, 7/16 x 2-1/4 mach

2шт.

WASHER, 7/16 lock

2шт.

2

458489R2

HINGE, support bar

2шт.

3

458487R11

SUPPORT, tooth bar

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

4шт.

21952R1

PIN, 1/2 x 1-1/8 C-Z std-hd

2шт.

21958R1

HEADED PIN,1/2" x 2 3/4"

PIN, 1/2 x 2-3/4 C-Z std-hd

2шт.

22141R1

RIVET, 5/16 x 7/8 C-Z b-hd

4шт.

4

458483R21

BAR, smoothing, 1 used unit A

1шт.

5

458485R11

BAR, smoothing, 1 used unit B

1шт.

1009029R3

PRODUCT GRAPHIC, IH, on front set bar, on connecting link

1шт.

2754030R1

PRODUCT GRAPHIC

model designation, on side of set bar of each section

1шт.

2751264R1

PRODUCT GRAPHIC

International, on set bar front, on connecting links

1шт.
