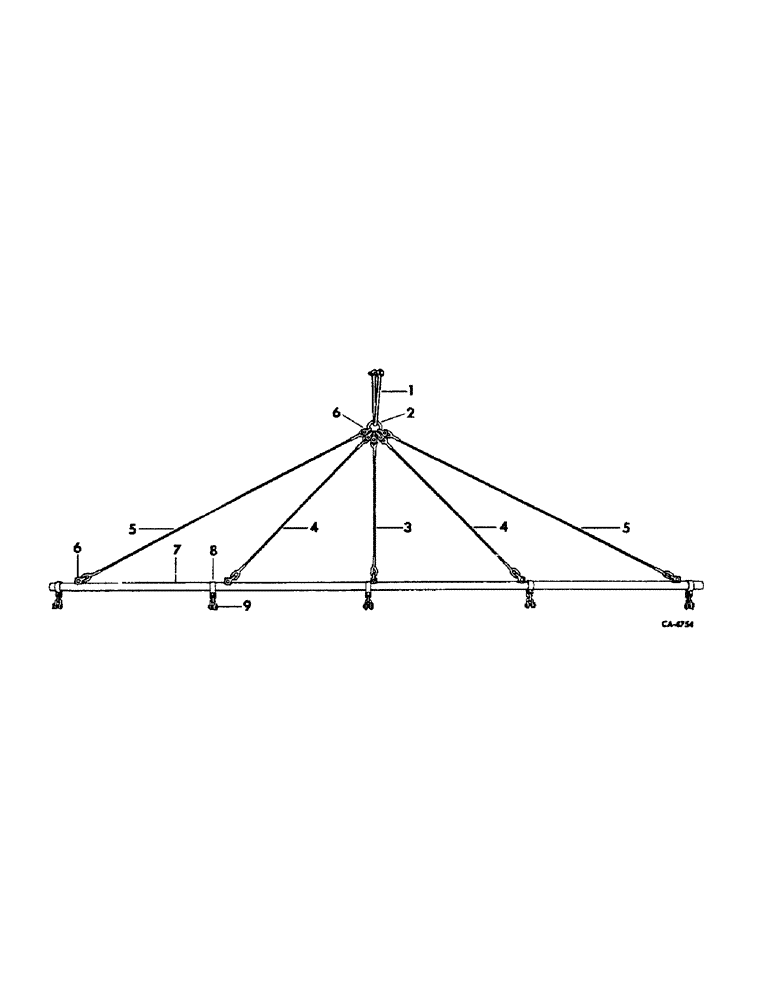

Запчасти Case IH 401 (M-13) - DRAWBAR, BUILT 1975 AND SINCE

1

63059C1

CLEVIS, safety

1шт.

18829R1

BOLT

5/8 x 4-1/2 znd hex-hd cap

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 znd hex

1шт.

2

63140C1

RING

hitch

1шт.

3

63141C1

CABLE ASSY, 39-7/8 in., used w/8 and 16 ft. drawbars

1шт.

4

63142C1

CABLE ASSY, 57-15/16 in., used w/8 and 16 ft. drawbars

2шт.

4

63141C1

CABLE ASSY, 39-7/8 in., used w/12 ft. drawbars

2шт.

5

63143C1

CABLE ASSY, 73-1/4 in., used w/12 ft. drawbars

2шт.

5

63144C1

CABLE ASSY, 95-11/16 in., used w/16 ft. drawbars

2шт.

6

453967R1

CLEVIS

2 per cable assy

1шт.

21989R1

PIN, 7/16 x 2 znd hd

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

1шт.

7

63145C1

DRAWBAR ASSY, 2 section, used w/8 ft. drawbars

1шт.

7

63146C1

DRAWBAR ASSY, 3 setion, used w/12 ft. drawbars

1шт.

7

63147C1

DRAWBAR ASSY, 4 section, used w/16 ft. drawbars

1шт.

8

63148C1

CLAMP

pull, 1 per cable assy

1шт.

18798R1

BOLT,Hex, 7/16"-14 x 2", G2

7/16 x 2 znd hex-hd mach

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-18 znd hex.

1шт.

9

63149C1

CLEVIS ASSY, pull chain, 1 per cable assy

1шт.

21989R1

PIN, 7/16 x 2 znd hd

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

1шт.
