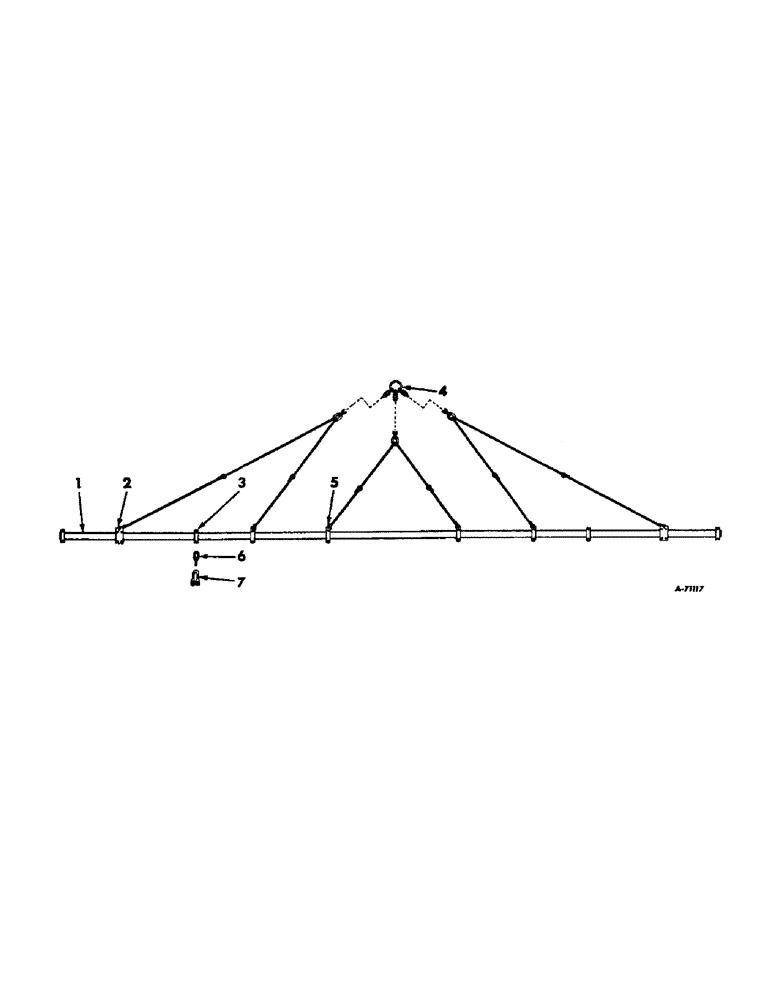

Запчасти Case IH 401 (M-12) - MANUAL CONTROL DRAWBARS

1

463467R1

DRAWBAR, 20 ft.

1шт.

2

468237R1

CLAMP, draw

4шт.

BOLT W/NUT, 1/2 x 1-3/4 mach

8шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

21939R1

HEADED PIN,1/2" x 1 7/16"

PIN, 1/2 x 1-7/16 C-Z std-hd

2шт.

WASHER, 1/2 lock

8шт.

3

463468R1

CLAMP

draft, 8 used unit B, 24 used unit A

1шт.

NUT, 7/16, 8 used unit B, 24 used unit A

1шт.

SCREW, 7/16 x 1 cap, 4 used unit B, 12 used unit A

1шт.

SCREW, 7/16 x 1-1/2 cap, 4 used unit B, 12 used unit A

1шт.

WASHER, 7/16 lock, 8 used unit B, 34 used unit A

1шт.

4

467130R91

LINK ASSY, draft, 20 ft.

1шт.

5

463469R1

CLAMP

draw

8шт.

NUT, 7/16

8шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

4шт.

21939R1

HEADED PIN,1/2" x 1 7/16"

PIN, 1/2 x 1-7/16 C-Z std-hd

4шт.

SCREW, 7/16 x 1-1/4 cap

4шт.

SCREW, 7/16 x 1-1/4 cap

4шт.

WASHER, 7/16 lock

8шт.

6

455386R91

CHAIN, 2 steel links, 6 used unit B, 12 used unit A

1шт.

7

455369R2

CLEVIS

chain shackle, 6 used unit B, 12 used unit A

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), , 6 used unit B; 12 used unit A 3/16" x 1 1/4"

1шт.

21931R1

PIN

1/2 x 1-7/8 C-Z std-hd, 6 used unit B, 12 used unit A

1шт.
