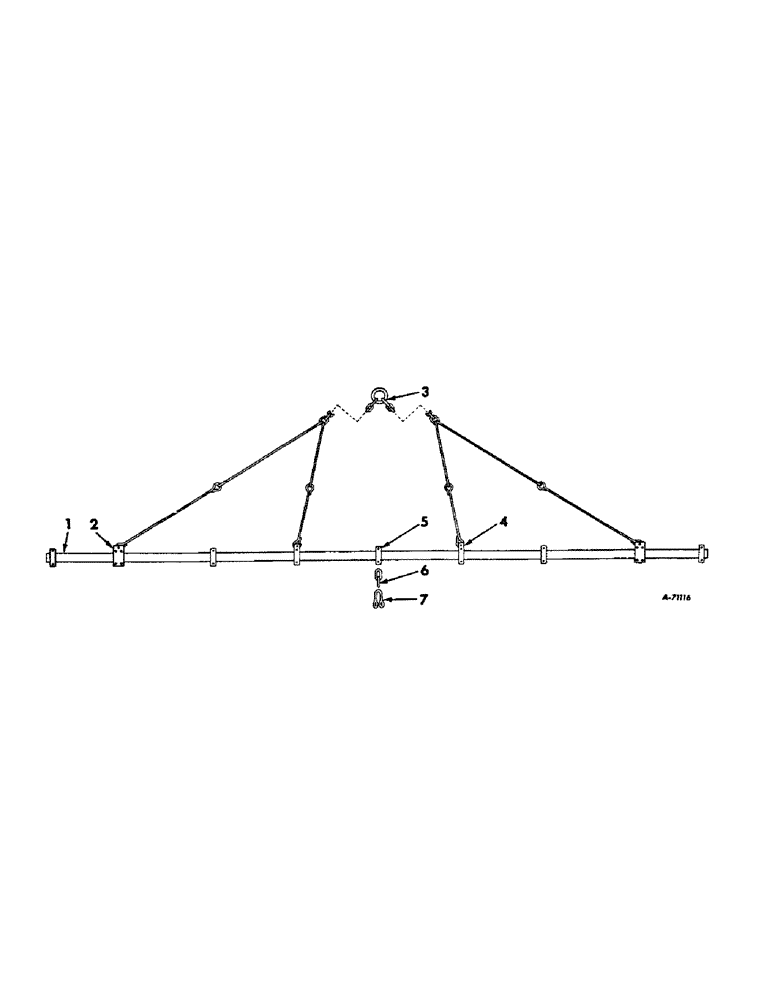

Запчасти Case IH 401 (M-10) - MANUAL CONTROL DRAWBARS

1

463465R1

DRAWBAR, 12 ft., 1 used units A, B and C

1шт.

1

463466R1

DRAWBAR, 16 ft., 1 used units D, E and F

1шт.

2

468237R1

CLAMP, draw, 4 used units D, E and F

1шт.

BOLT, w/nut, 1/2 x 1-3/4 mach, 8 used units D, E and F

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), , 2 used units D, E and F 3/16" x 1 1/4"

1шт.

21939R1

HEADED PIN,1/2" x 1 7/16"

PIN, 1/2 x 1-7/16 C-Z std-hd, 2 used units D, E and F

1шт.

120384

WASHER,1/2"

LOCK, , 8 used units D, E and F 1/2"

1шт.

3

467122R91

LINK ASSY, draft, 12 FT., 1 used units A, B and C

1шт.

3

467127R91

LINK ASSY, draft, 15 and 16 ft., 1 used units D, E and F

1шт.

4

463469R1

CLAMP

draw, 4 used units D, E and F, 8 used units A, B and C

1шт.

NUT, 7/16, 4 used units D, E and F, 8 used units A, B and C

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), , 2 used units D, E and F; 8 used units A, B and C 3/16" x 1 1/4"

1шт.

21939R1

HEADED PIN,1/2" x 1 7/16"

PIN, 1/2 x 1-7/16 C-Z std-hd, 2 used units D, E and F, 4 used units A, B and C

1шт.

SCREW, 7/16 x 1-1/4 cap, 2 used units D, E and F, 4 used units A, B and C

1шт.

SCREW, 7/16 x 1-1/2 cap, 2 used units D, E and F, 4 used units A, B and C

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , 4 used units D, E and F; 8 used units A, B and C 7/16"

1шт.

5

463468R1

CLAMP

draft, 4 used unit A, 8 used unit F, 10 used unit C, 12 used unit E, 16 used unit B, 20 used unit D

1шт.

NUT, 7/16, 4 used unit A, 8 used unit F, 10 used unit C, 12 used unit E, 16 used unit B, 20 used unit D

1шт.

SCREW, 7/16 x 1 cap, 2 used unit A, 4 used unit F, 5 used unit C, 6 used unit E, 8 used unit B, 10 used unit D

1шт.

SCREW, 7/16 x 1-1/2 cap[, 2 used unit A, 4 used unit F, 5 used unit C, 6 used unit E, 8 used unit B, 10 used unit D

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , 4 used unit A; 8 used unit F; 10 used unit C; 12 used unit E; 16 used unit B; 20 used unit D 7/16"

1шт.

6

455386R91

CHIAN, 2 steel links, 4 used units A, 5 used units C and F, 6 used unit B, 10 used unit D

1шт.

7

455369R2

CLEVIS

chain shackle, 4 used unit A, 5 used units C and F, 6 used unit E, 8 used unit B, 10 used unit D

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), , 4 used unit A; 5 used units C and F; 6 used E; 8 used unit B; 10 used unit D 3/16" x 1 1/4"

1шт.

21931R1

PIN

1/2 x 1-7/8 C-Z std-hd, 4 used unit A, 5 used units C and F, 6 used unit E, 8 used unit B, 10 used unit D

1шт.
