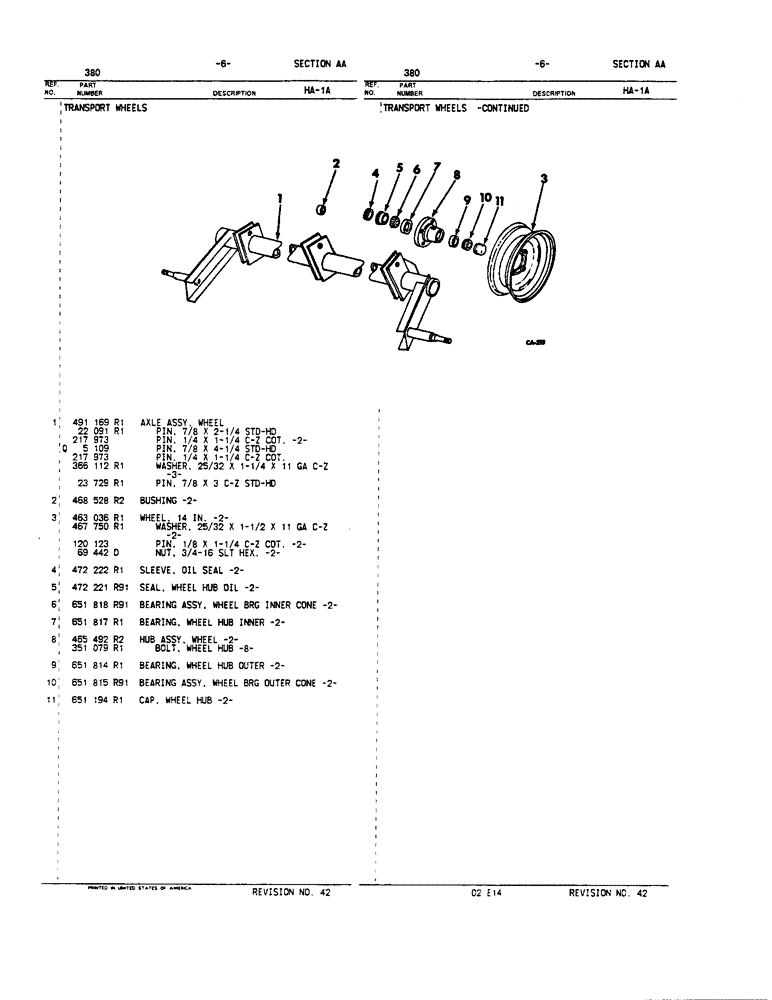

Запчасти Case IH 380 (AA-6) - TRANSPORT WHEELS

1

491169R1

AXLE ASSY, wheel

1шт.

22091R1

PIN, 7/8 x 2-1/4 std-hd

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

Q5109

HEADED PIN,7/8" x 4 1/4"

PIN, 7/8 x 4-1/4 std-hd

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

3шт.

23729R1

HEADED PIN,22.23mm OD x 76.2mm L

PIN, 7/8 x 3 C-Z std-hd

1шт.

2

468528R2

BUSHING

2шт.

3

463036R1

WHEEL (STEERING)

WHEEL, 14 in.

2шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

69442D

NUT

3/4-16 slt hex.

2шт.

4

472222R1

SLEEVE

oil seal

2шт.

5

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil

2шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, wheel brg inner cone

2шт.

7

651817R1

BEARING CUP

BEARING, wheel hub inner

2шт.

8

465492R2

HUB

ASSY, wheel

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel hub

8шт.

9

651814R1

BEARING CUP

BEARING, wheel hub outer

2шт.

10

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, wheel brg outer cone

2шт.

10

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

11

651194R1

CAP

wheel hub

2шт.
