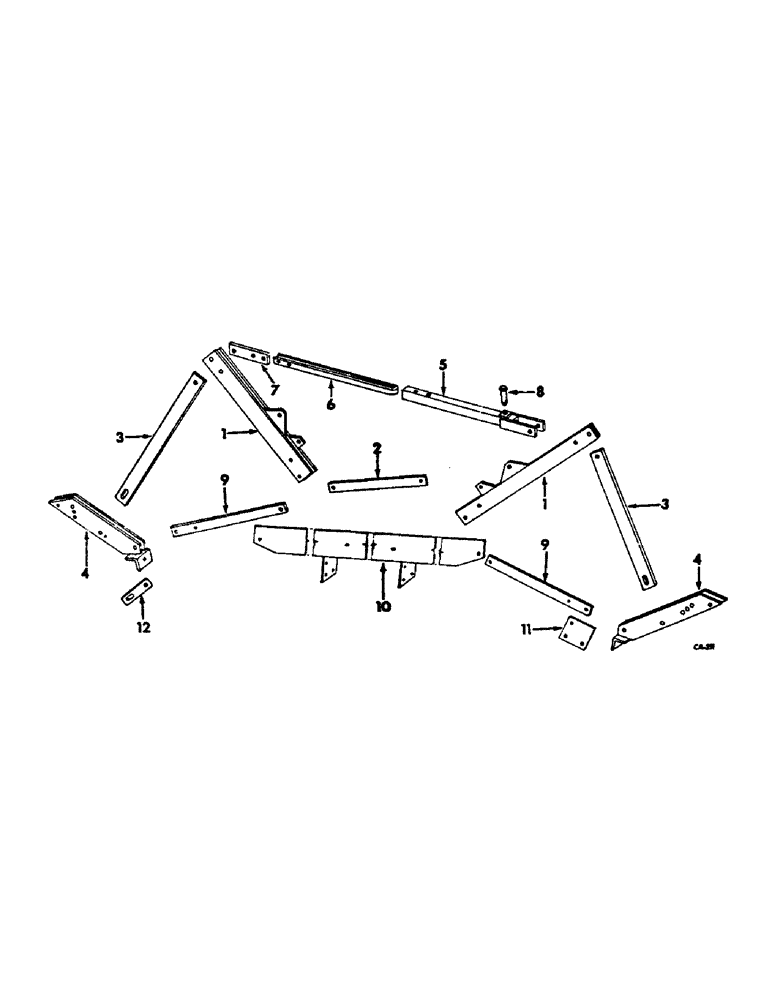

Запчасти Case IH 380 (AA-5) - HYDRAULIC FOLDING MECHANISM

1

493272R1

LEVER ASSY, cylinder

2шт.

21954R1

HEADED PIN,3/4" x 2 3/8"

PIN, 3/4 x 2-3/8 C-Z std-hd

2шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

2шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

2

493278R1

BAR, equalizer

2шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 znd hex-hd cap

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

4шт.

9413948

NUT,5/8"-11, GA

5/8-11 cdp hex. lock

4шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znd hex-hd cap

2шт.

3

491285R1

BAR, lift

2шт.

21954R1

HEADED PIN,3/4" x 2 3/8"

PIN, 3/4 x 2-3/8 C-Z std-hd

2шт.

21672R1

PIN,3/4" x 1 11/16"

3/4 x 1-11/16 znp std-hd

2шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

4шт.

4

484590R3

BAR ASSY, wing pivot

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znd hex-hd cap

4шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

4шт.

9413948

NUT,5/8"-11, GA

5/8-11 CDP hex. lock

4шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 C-Z hex-hd cap

2шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

2шт.

462248R1

LOCK NUT

3/4-10 hex. lock

2шт.

21955R1

HEADED PIN,1/2" x 1 5/8"

PIN, 1/2 x 1-5/8 C-Z std-hd

4шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

4шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

4шт.

5

484605R91

TUBE ASSY, stop

1шт.

6

484651R1

STOP, wing extension

1шт.

7

484652R1

BAR, pivot

1шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2-13 x 2 C-Z hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

21954R1

HEADED PIN,3/4" x 2 3/8"

PIN, 3/4 x 2-3/8 C-Z std-hd

1шт.

20813R1

PIN, 3/4 x 3-1/8 C-Z std-hd

1шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

2шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

8

486762R1

PIN

lockout

1шт.

610784

PIN, quick attachable cot.

1шт.

9

491293R1

BAR, center pivot

2шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

10

493276R1

PIVOT ASSY, folding mechanical

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 C-Z hex-hd cap

2шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

11

491290R1

BAR, lockout retainer

1шт.

12

491291R1

BAR, lockout

1шт.

21377R1

HEADED PIN,3/4" x 2"

PIN, 3/4 x 2 C-Z std-hd

1шт.

491292R1

PIN, hd

1шт.

517843R1

COTTER PIN

PIN, quick attachable cot.

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.
