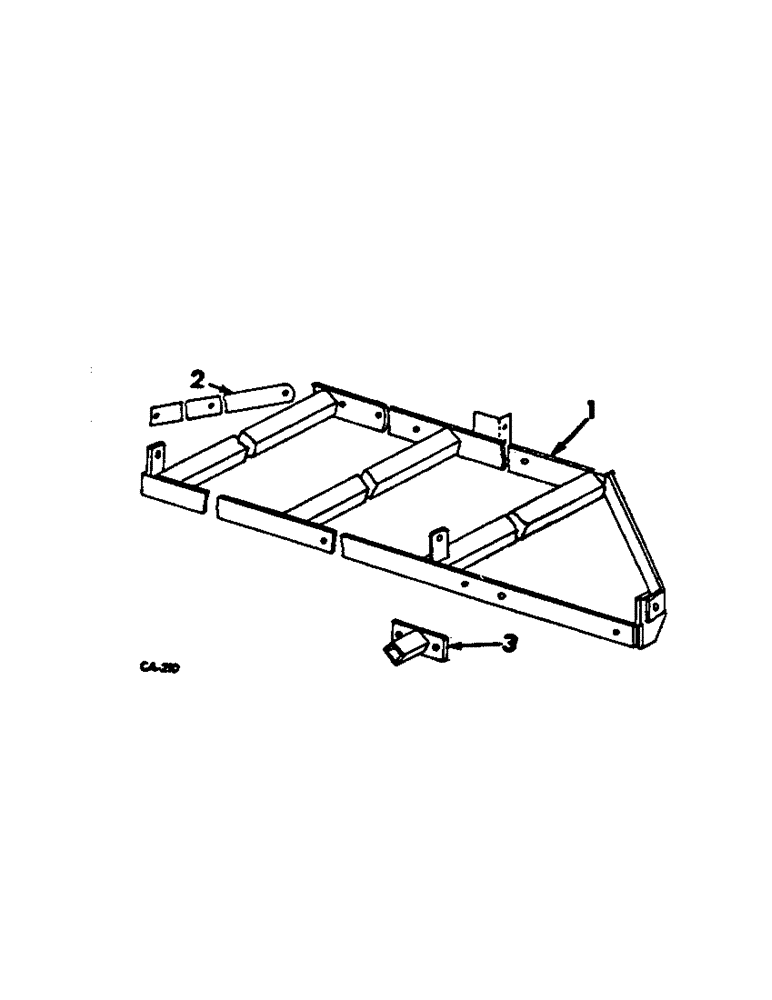

Запчасти Case IH 380 (AA-4) - EXTENSION WING

1

493254R1

FRAME ASSY, LH wing, 4 ft. 6 in.

1шт.

1

493255R1

FRAME ASSY, RH wing, 4 ft. 6 in

1шт.

1

493263R1

FRAME ASSY, LH wing, 5 ft. 9 in.

1шт.

1

493264R1

FRAME ASSY, RH wing, 5 ft. 9 in

1шт.

1

493266R1

FRAME ASSY, LH wing, 7 ft.

1шт.

1

493267R1

FRAME ASSY, RH wing, 7 ft.

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 C-Z hex-hd cap

2шт.

217771

SCREW, 3/4-10 x 2 C-Z hex-hd cap

4шт.

462248R1

LOCK NUT

3/4-10 hex. lock

6шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

6шт.

2

493269R1

BAR, center wing brace, used with 4 ft. 6 in. wing

2шт.

2

493270R1

BAR, center wing brace, used with 5 ft 9 in. wing

2шт.

2

493271R1

BAR, center wing brace, used with 7 ft. wing

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

2шт.

589068R1

WASHER

21/32 x 1-1/4 C-Z x 11 ga

2шт.

9413944

NUT

5/8-11 C-Z hex. lock

2шт.

3

484618R91

TUBE ASSY, extension LH

1шт.

3

484619R91

TUBE ASSY, extension RH

1шт.

18825R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 2

5/8-11 x 2-3/4 C-Z hex-hd mach

2шт.

20511R1

WASHER, 5/8 znp med lock

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.
