Запчасти Case IH 380 (AA-4[A]) - GAUGE SHOE

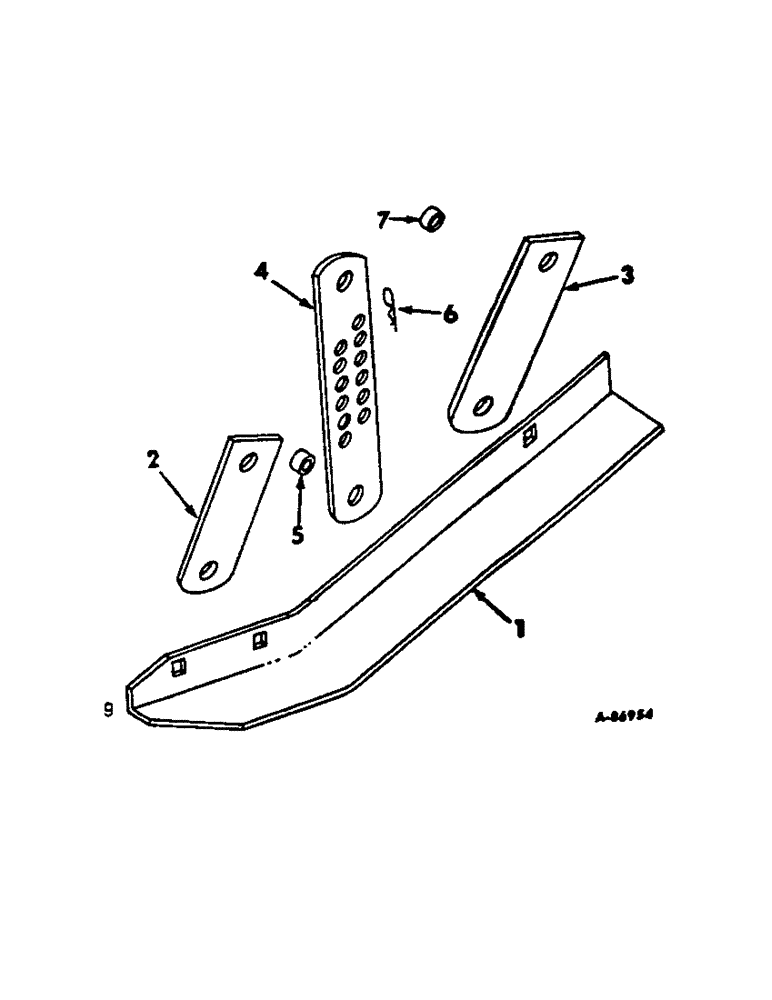

Схема запчастей Case IH 380 - (AA-4[A]) - GAUGE SHOE
1
2
3
9
7
4
5
6

Артикул

Название

Примечание

Количество

1

484629R1

SHOE, gauge LH, 1 used, standard, 2 used, machines w/additional flotation feature

1шт.

1

484630R1

SHOE, gauge RH, 1 used, stabdard, 2 used, machines w/additional flotation feature

1шт.

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT, 5/8-11 x 2 C-Z sq-nk crg

2шт.

18719R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8-11 x 1-3/4 C-Z sq-nk crg

4шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

5/8-11 x 2 C-Z hex-hd mach

2шт.

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

21/32 x 1-1/4 x 7 ga

8шт.

9413948

NUT,5/8"-11, GA

5/8-11 cdp hex. lock

8шт.

18721R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 2

BOLT, 5/8-11 x 2-1/4 C-Z sq-nk crg, 2 used, machines w/additional flotation feature

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8-11 x 2-1/2 C-Z sq-nk crg, 2 used, machines w/additional flotation feature

1шт.

9413948

NUT,5/8"-11, GA

5/8-11 cdp hex. lock, machines w/additional flotation feature

4шт.

2

484626R1

BAR, gauge shoe front

2шт.

3

484627R1

BAR, gauge shoe rear

2шт.

4

484628R1

BAR, gauge shoe adjusting

2шт.

5

484745R1

SPACER

2шт.

6

517843R1

COTTER PIN

PIN, QA cot.

2шт.

7

484624R1

SPACER

8шт.

Выбрано товаров: 16
