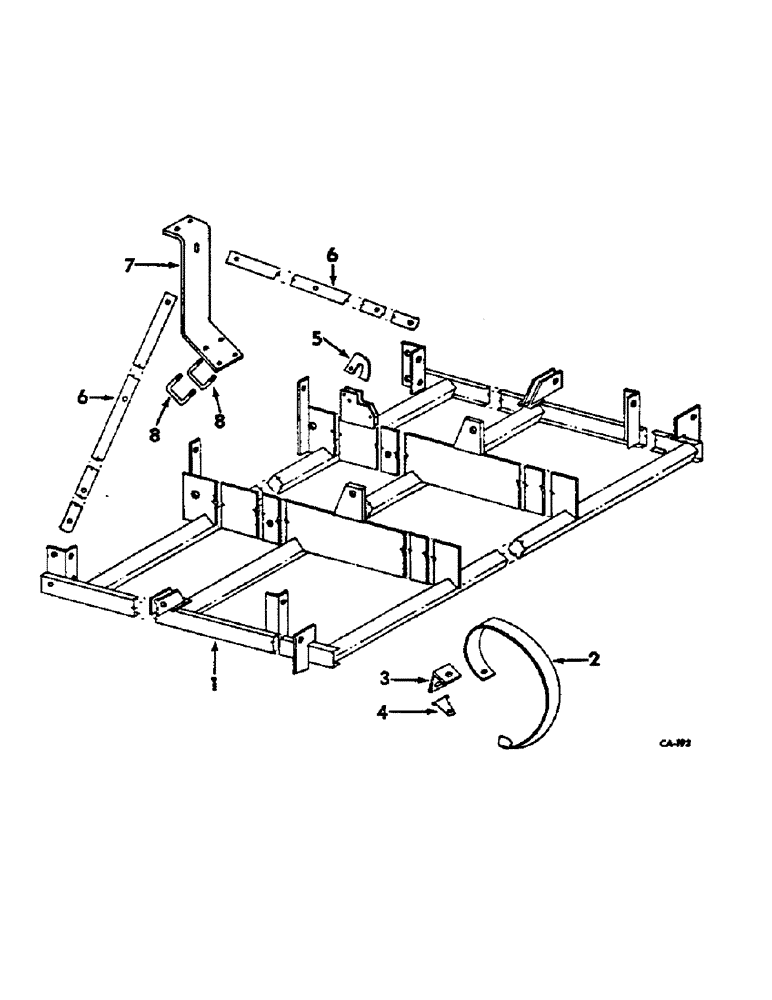

Запчасти Case IH 380 (AA-3) - CENTER FRAME 9 FT. 3 IN.

CENTER FRAME w/4-1/2 in. spacing, consists of all unmarked parts and those marked unit A

1шт.

CENTER FRAME w/6 in. spacing, consists of all unmarked parts and those marked unit B

1шт.

1

491149R1

FRAME ASSY, center

1шт.

2

470963R2

SPRING

TOOTH, pointed spring, 25 for unit A, 19 for unit B

1шт.

3

484623R1

ANGLE

tooth clamp, 25 for unit A, 19 for unit B

1шт.

4

484625R1

STRAP

tooth locator, 25 for unit A, 19 for unit B

1шт.

DKN6466

SPRING

SCREW, 7/16-14 x 3-1/4 C-Z hex-hd cap, one used per strap

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , 1 used per strap 7/16"

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex., one used per strap

1шт.

5

653673R2

LATCH

cyl

1шт.

21816R1

HEADED PIN,1/2" x 1 3/8"

PIN, 1/2 x 1-3/8 C-Z std-hd

1шт.

S3631/2

PIN

3/8 x 1-1/4 std-hd

1шт.

591107R1

COTTER PIN

quick attachable cotter

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

6

491161R1

BAR, front wing pivot

2шт.

18838R1

BOLT, 3/4-10 x 2 C-Z hex-hd mach Hex, 3/4"-10 x 2", G2

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

7

491162R1

BRACKET, front truss

1шт.

18174R1

BOLT,Hex, 3/4"-10 x 2 1/2", G2

3/4-10 x 2-1/2 C-Z hex-hd mach

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

8

PO27435

U-BOLT

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.
