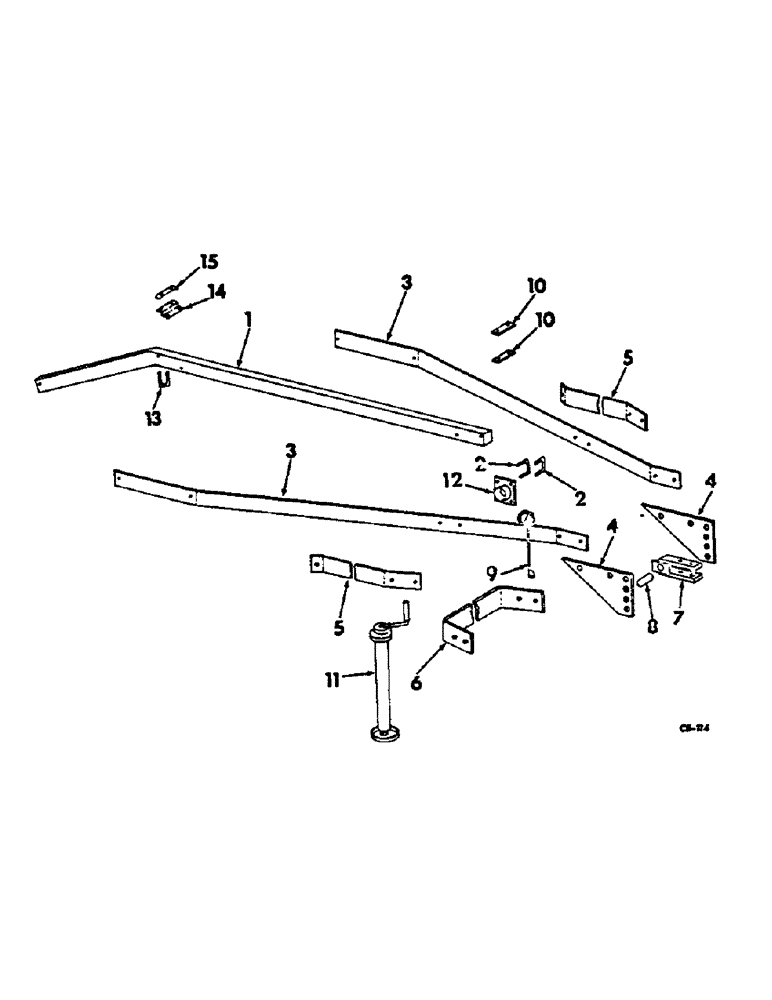

Запчасти Case IH 380 (AA-2) - HITCH AND JACK

1

491163R1

TUBE, hitch

1шт.

2

491281R1

U-BOLT

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

3

491165R1

BAR, hitch pull

2шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

4

490166R1

PLATE, hitch

2шт.

19866R1

BOLT,Hex, 3/4" - 10 x 6 1/2", Gr 5

SCREW, 3/4-10 x 6-1/2 C-Z hex-hd cap

1шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

SCREW, 3/4-10 x 7 C-Z hex-hd cap

1шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

5

491167R1

BAR, hitch brace

2шт.

6

491168R1

BRACE, hitch

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 C-Z hex-hd cap

6шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

280954

NUT,3/4"-10, G5

6шт.

7

468546R11

CLEVIS

ASSY, hitch

1шт.

8

468548R1

BUSHING

hitch clevis

1шт.

271827

SEAL KIT

SCREW, 7/8-9 x 5 C-Z hex-hd cap

1шт.

NLS

NO LONGER SERVICED

7/8"

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

9

463115R1

SUPPORT, hyd hose

1шт.

10

491276R1

BAR, pipe support

2шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8-16 x 1-1/2 C-Z hex-hd mach

2шт.

18789R1

BOLT

3/8-16 x 5 C-Z hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

11

491277R1

JACK ASSY

1шт.

12

491278R1

BRACKET ASSY, jack

1шт.

13

491164R1

U-BOLT

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

14

491282R1

BRACKET, pipe support

1шт.

15

491283R1

CLAMP, pipe

2шт.
