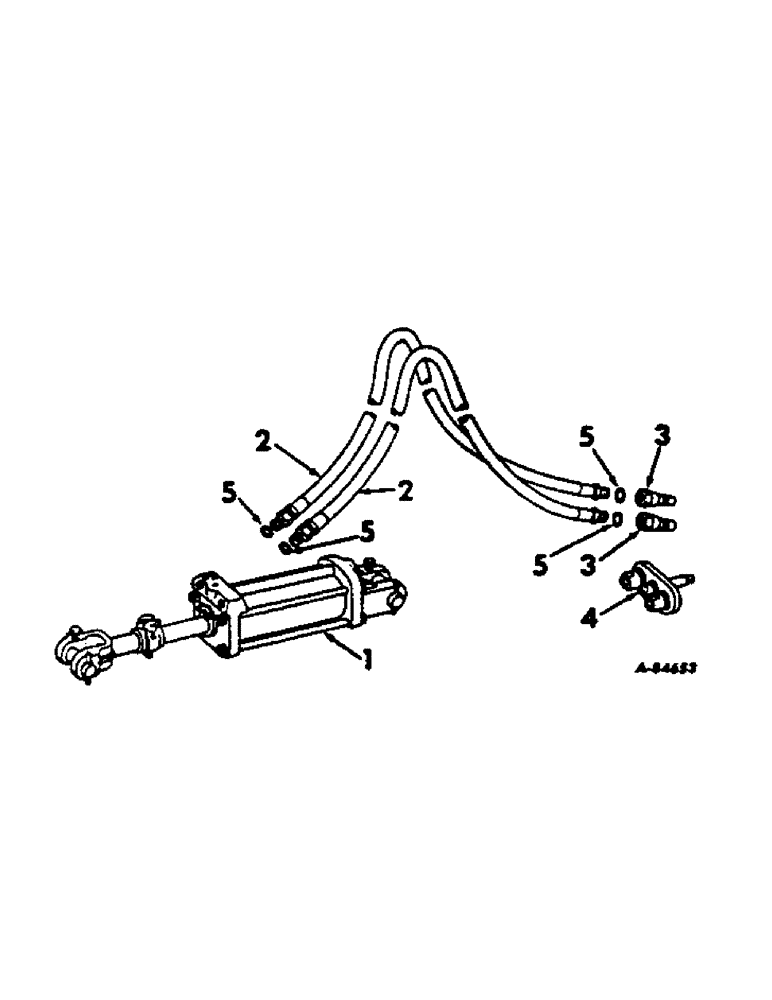

Запчасти Case IH 380 (AA-9) - HYDRAULIC CYLINDER AND CONNECTIONS

1

388688R96

CYLINDER

hydraulic 4 x 8 in., refer to cyl, 1 for components

1шт.

1

1343711C1R

REMAN-HYD CYLINDER

380 INTERNATIONAL HARVESTER SPRING-TOOTH HARROW, hydraulic 4 x 8 in., Reman for New PN 388688R96

1шт.

1

1343711C1C

REMAN-HYD CYLINDER

Return Number

1шт.

1

403842R94

CYLINDER

hyd 3-1/2 x 8 in., unit B, refer to cyl, 1 for components

1шт.

2

463076R91

HOSE, 1/2 x 180 in.

4шт.

3

395149R1

QUICK MALE COUPLING

COUPLING, hyd

4шт.

4

373984R91

VALVE

RESCRICTOR, adjustable hyd, used in conjunction with 395149R1

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

12шт.

373984R91

VALVE

adjustable drop retarding, consists of, (1) body 373986R1 (NSS), (1) pin, 17072R1, (1) pin 113498, (1) o-ring 362226R1, (1) regulator 362906R1, (1) washer 362908R1, (1) spring 362907R1

1шт.
