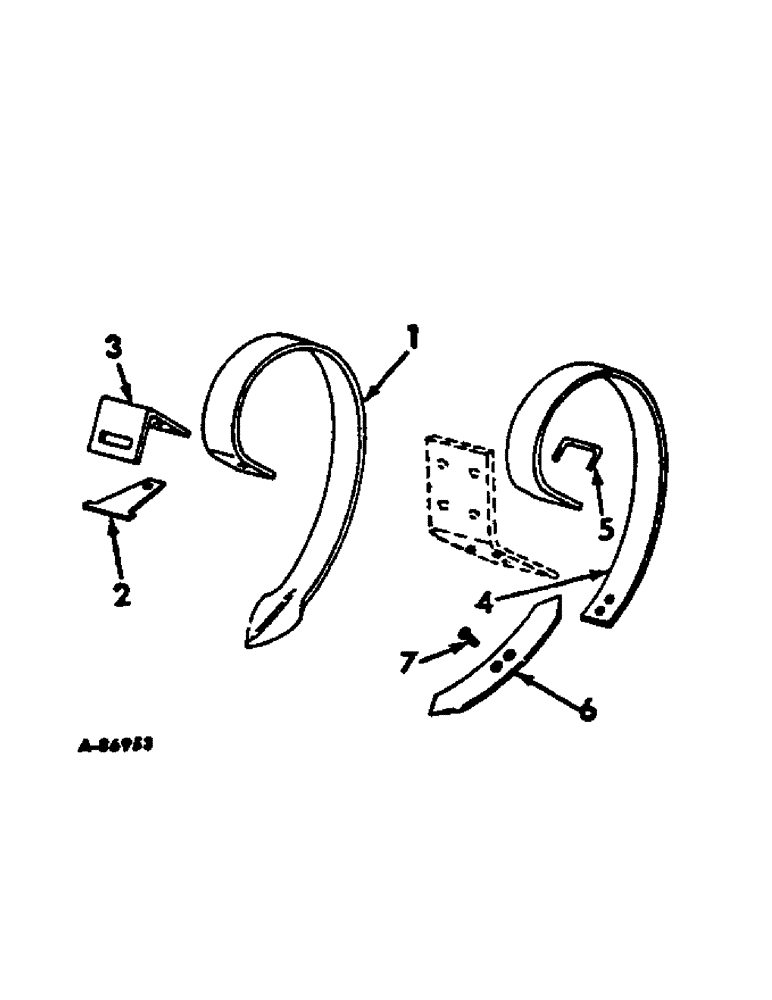

Запчасти Case IH 380 (AA-8[A]) - POINTED SPRING TEETH W/DETACHABLE POINT AND QUACK GRASS SPRING

1

470963R2

SPRING

TOOTH, pointed spring, see note

1шт.

2

484625R1

STRAP

tooth locator, one used per tooth

1шт.

3

484623

ANGLE, tooth clamp, one used per tooth

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex, one used per angle

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , 1 used per angle 7/16"

1шт.

DKN6466

SPRING

SCREW, 7/16-14 x 3-1/4 hex-hd cap, one used per angle

1шт.

4

470964R11

SPRING

TOOTH W/DETACHABLE POINT, heavy duty, see note

1шт.

4

464762R1

TOOTH, quack grass spring, see note

1шт.

5

523913R1

BOLT, U

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

6

5886

POINT

reversible tooth, one used per tooth

1шт.

7

67821/2X

BOLT ASSY, reversible tooth point, 2 used per point

1шт.

120377

NUT,3/8" - 16, Gr 5

2 used per point 3/8"-16, G5

1шт.
