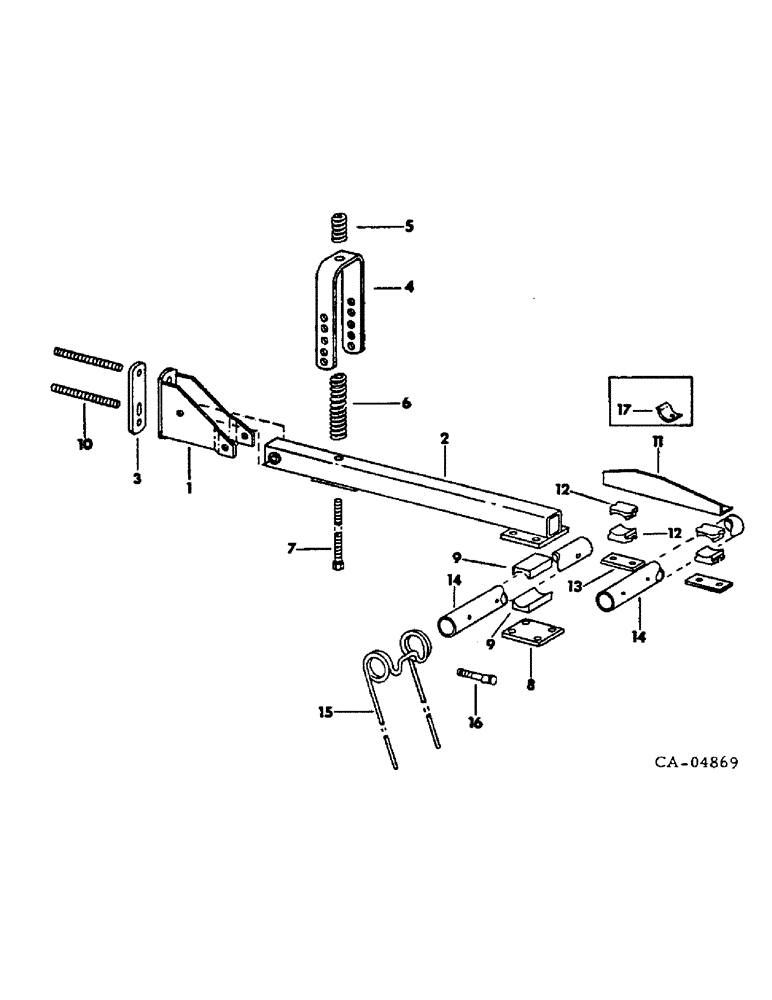

Запчасти Case IH 356 (AU-09) - MULCHER ATTACHMENT

1

63238C1

BRACKET

ASSY, mounting, 1 for unit A, 13 for units B and C

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 znd hex-hd mach, 2 per bracket

1шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2-13 x 3 znd hex-hd mach, 1 per bracket

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 znd hex. lock, 1 per bolt

1шт.

2

63239C1

ARM

ASSY, carrier, 1 per bracket

1шт.

3

63252C1

BAR

CLAMP, flat, 1 per arm

1шт.

4

63253C1

ANCHOR

spring, 1 per arm

1шт.

5

63254C1

SPRING

compression, 1 per arm

1шт.

6

63255C1

SPRING

compression, 1 per arm

1шт.

7

63256C1

BOLT

ROD, compression, 1 per arm

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 znd hex, jam

2шт.

8

63257C1

BAR

PLATE, 1 per arm

1шт.

9

547853R1

CLAMP

casting, 2 per arm

1шт.

18804R1

BOLT,Hex, 7/16"-14 x 4", G2

7/16-14 x 4 znd hex-hd mach

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex.

2шт.

10

63258C1

STUD

2 per arm

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074 znd

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

11

63228C1

SUPPORT

FRAME, 14 for unit A, 16 for unit B, 18 for unit C

1шт.

12

63222C1

CLAMP

casting, 4 per frame

1шт.

18804R1

BOLT,Hex, 7/16"-14 x 4", G2

7/16-14 x 4 znd hex-hd mach

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

271501

SOCKET

NUT, 7/16-14 znd hex.

1шт.

13

63223C1

PLATE

clamp, 2 per frame

1шт.

14

63231C1

TOOTH BAR, 6.5 ft., 4 for unit A

1шт.

14

63232C1

TUBE

TOOTH BAR, 7.5 ft., 4 for unit B

1шт.

14

63233C1

TUBE

TOOTH BAR, 8.5 ft., 4 for unit C

1шт.

14

63234C1

TOOTH BAR, 10.5 ft., 4 for unit A

1шт.

14

63261C1

TOOTH BAR, 12.5 ft., 4 for unit B

1шт.

14

63360C1

TOOTH BAR, 13.5 ft., 2 for unit A and B, 6 for unit C

1шт.

15

63235C2

TOOTH

6 in. spacing, 100 for unit A, 112 for unit B, 124 for unit C

1шт.

16

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

shoudler, 2 per tooth

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/5-16 cad prev. torque, 1 per bolt

1шт.

17

63206C1

STOP, tooth

1шт.
