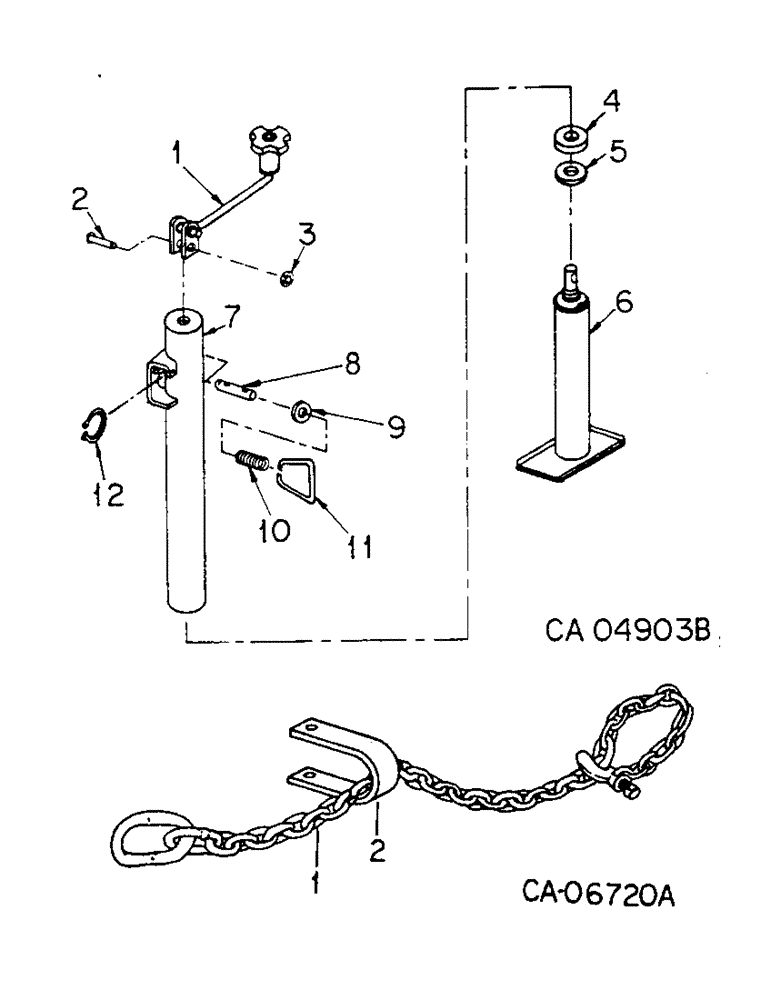

Запчасти Case IH 356 (AU-08) - JACK UNIT

63353C91

JACK ASSY

1шт.

1

1256366C1

CRANK

1шт.

2

1256367C1

PIN

headed crank

1шт.

3

1256368C1

NUT

retaining

1шт.

4

1256370C1

BEARING, roller

1шт.

5

59113C1

THRUST WASHER

1шт.

6

TUBE, inner, not serviced separately

1шт.

7

TUBE, outer, not seviced separately

1шт.

8

204654C1

PLUNGER

1шт.

9

59102C1

WASHER

1/2 ID x 7/8 OD

1шт.

10

204655C1

SPRING

1шт.

11

204658C1

RING, pull

1шт.

12

684645R1

SNAP RING,#250, Ext

Ring, Snap, , swivel, not part of jack assy #250, Ext

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

62842C1

WASHER

17/32 x 7/8 x 16 ga flat

1шт.

1

100682C3

CHAIN (AG)

CHAIN, safety

1шт.

2

148558C1

CLEVIS

replaces S9173A

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 znd hex-hd cap

1шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 nylon insert

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 znd hex-hd cap

1шт.

26512R1

WASHER

.781 x 2 x .164 znd

1шт.

18444R1

NUT,3/4"-10, GB

3/4-10 nylon insert

1шт.

61913C92

PACKAGE

chain hardware, consists of clevis and attaching hardware

1шт.
