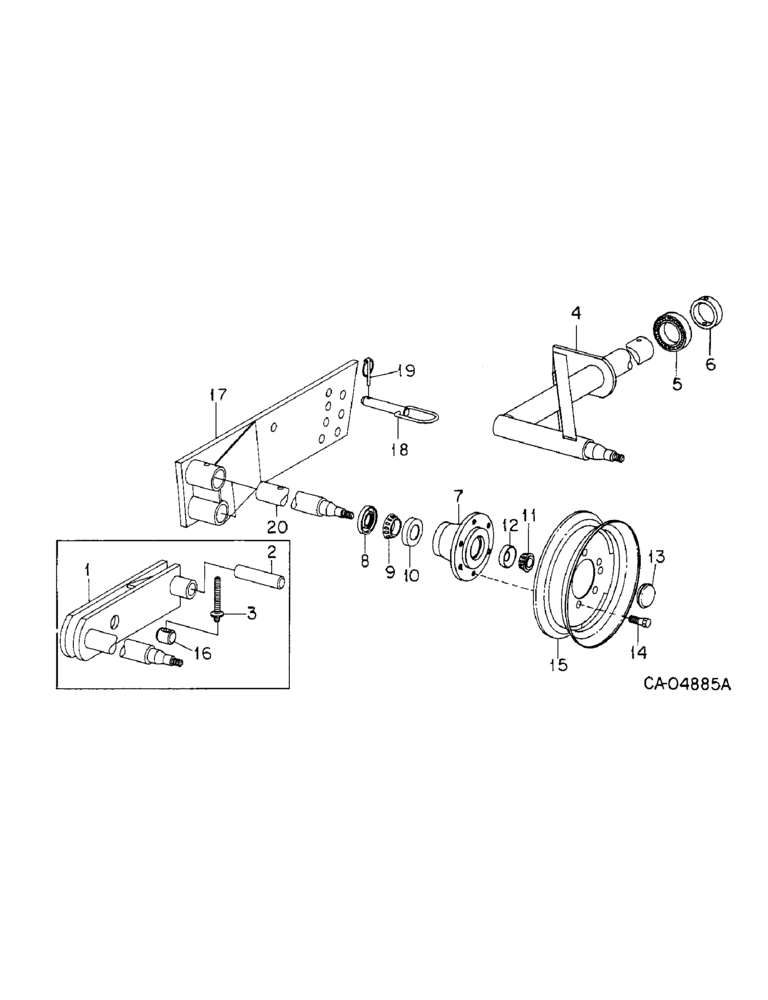

Запчасти Case IH 356 (AU-07) - WHEEL, AXLE & HUB UNIT

1

63319C1

AXLE, adjustable, Serial Range: -783

4шт.

64537C1

AXLE, center gauge, Serial Range: -783

2шт.

446265

WASHER, Serial Range: -783

6шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8 hex. slotted, Serial Range: -783

6шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4", Serial Range: -783

6шт.

2

63320C1

PIN, adj axle pivot, Serial Range: -783

6шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2", Serial Range: -783

6шт.

3

63209C1

SCREW

adjustable, Serial Range: -783

4шт.

3

1256362C1

ADJUSTMENT SCREW

adjustable, Start Serial: 784

4шт.

4

63321C1

AXLE

ASSY, pivot, shaft

2шт.

131017

WASHER

.812 x 1.469 x .108

2шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8 hex. slotted

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

5

62829C1

THRUST BEARING

thrust

2шт.

6

62831C1

BUSHING

TUBE, locking

2шт.

18784R1

BOLT,Hex, 3/8"-16 x 2 3/4", G2

3/8 x 2-3/4 hex-hd mach

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 znd hex. lock

2шт.

7

62509C1

HUB

W/CUPS, 6 bolt, Serial Range: -783

8шт.

7

1256626C1

HUB

W/CUPS, 6 bolt, Start Serial: 784

8шт.

8

56514C1

OIL SEAL

8шт.

9

160558C91

BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"

BEARING, inner cone

8шт.

10

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, outer cone

8шт.

11

478793R1

BEARING CUP

BEARING, inner cup

8шт.

12

651817R1

BEARING CUP

BEARING, outer cup

8шт.

12

651817R1GV

BEARING CUP

Value, Bearing Cup

8шт.

13

62510C1

CAP

hub

8шт.

14

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel

48шт.

15

486101R2

RIM

WHEEL, 15 x 8LHB, 6 bolt

8шт.

16

63210C1

PIN

round adj, note 1

6шт.

63494C1

NUT

adjustable, Serial Range: -783

6шт.

1256365C1

NUT

adjustable, Start Serial: 784

6шт.

63493C1

WASHER, machine bushing, Serial Range: -783

6шт.

17080R1

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, 5/32" x 1 1/4", Slotted

6шт.

17

1256624C1

PLATE ADJUSTABLE AXLE LH, Start Serial: 784

3шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

3/4 x 3-1/2 type 5

2шт.

9413962

LOCK NUT,3/4"-10, GB

NUT, 3/4 PHC p/t lock type 5

3шт.

17

1256625C1

PLATE ADJUSTABLE AXLE RH, Start Serial: 784

3шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

3/4 x 3-1/4 type 5

3шт.

9413962

LOCK NUT,3/4"-10, GB

NUT, 3/4 PHC p/t lock type 5

3шт.

18

80070C1

PIN, axle plate lockout, Start Serial: 784

6шт.

19

373025R91

PIN ASSY.

PIN, axle plate pin click, Start Serial: 784

6шт.

20

1256627C1

SPINDLE

adjutable axle, Start Serial: 784

6шт.

181677

DRIVING SPROCKET

7/16-NF x 2-3/4 type 5

3шт.

19526R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-NF p/t lock type 5

3шт.
