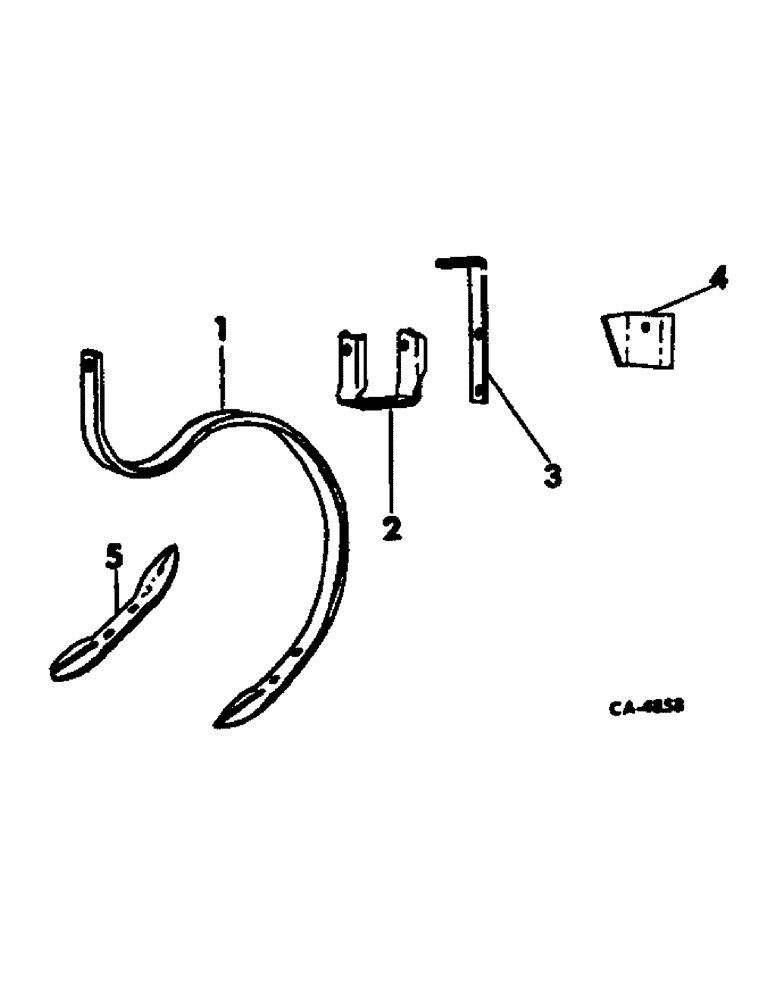

Запчасти Case IH 356 (AU-06) - TEETH AND CLAMP

1

63203C1

TOOTH

97 for 48 ft., 109 for 54 ft., 121 for 60 ft.

1шт.

2

74018C1

CLAMP

tooth, 1 per tooth, replaces 73656C1

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 znd hex-hd cap, 99 for 48 ft., 111 for 54 ft., 123 for 60 ft.

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 znd hex. lock, 1 per screw

1шт.

3

63205C2

GUIDE, cable

2шт.

4

(Note used in this application)

1шт.

5

63250C1

POINT

reversible spring

1шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 plow type 1

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.
