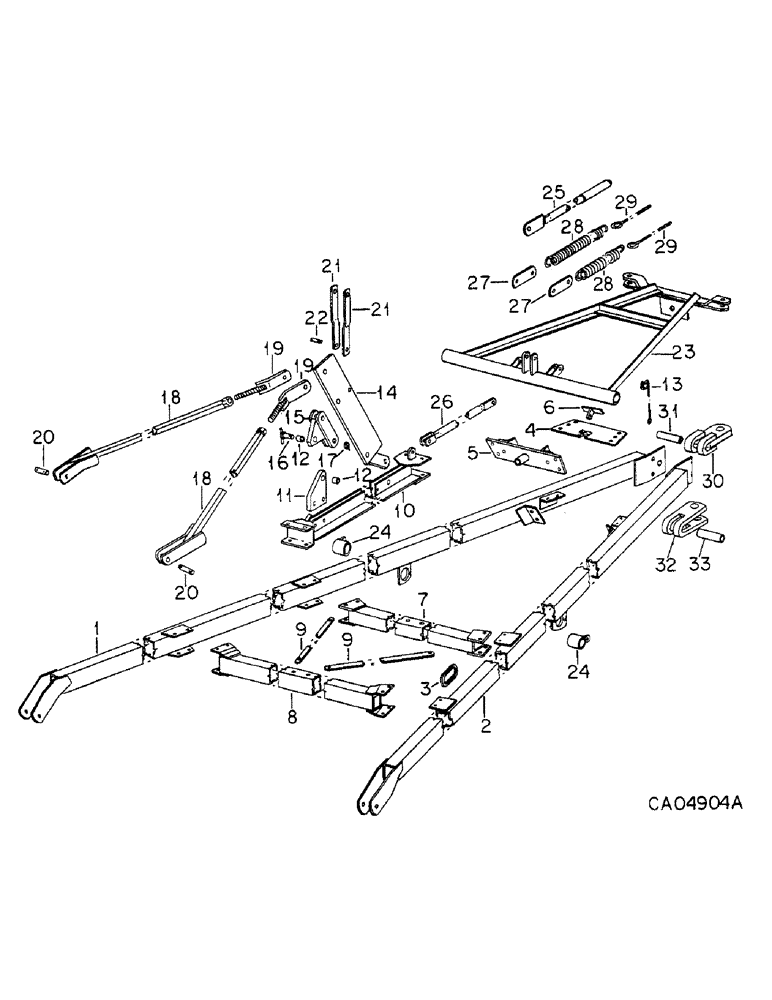

Запчасти Case IH 356 (AU-04) - CARRIER FRAME AND HITCH

1

63322C1

FRAME ASSY, hitch LH

1шт.

2

63323C1

FRAME ASSY, hitch RH

1шт.

22837R1

SCREW

1-8 x 5-1/2 znd hex-hd cap

2шт.

24567R1

LOCK NUT,1"-8, GB

NUT, 1-8 znd hex. lock

2шт.

3

63186C1

GROMMET, rubber

1шт.

4

63324C1

SUPPORT ASSY, bar

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 znd hex-hd mach

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

5

63325C1

SUPPORT, safety lock, guide

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znd hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

1шт.

6

63326C1

SUPPORT, safety, flag

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 znd hex-hd mach

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 znd hex. lock

1шт.

7

63327C1

TUBE, front spanner

1шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 znd hex-hd cap

2шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

NLS

NO LONGER SERVICED

.812 x 1.469 x .108

8шт.

8

63328C1

TUBE, rear spanner

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

NLS

NO LONGER SERVICED

.812 x 1.469 x .108

8шт.

9

63329C1

BAR

2шт.

10

64480C1

SUPPORT ASSY, cylinder

1шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

SCREW, 5/8-11 x 5 znd hex-hd cap

2шт.

21275R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

SCREW, 5/8-11 x 6-1/2 znd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

11

63331C1

SUPPORT, cylinder anchor

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 znd hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

12

63332C1

SPACER, flip link, bushing

2шт.

13

63333C1

SPRING, hose guide

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 znd hex-hd cap

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 znd hex-hd cap

1шт.

130999

WASHER,5/8"

.688 x 1.750 x .108 znd

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

14

64481C1

SUPPORT

ASSY, torque arm

1шт.

271859

VALVE,Hex, 1" - 8 x 3", Gr 5

SCREW, 1-8 x 3 znd hex-hd cap

1шт.

24567R1

LOCK NUT,1"-8, GB

NUT, 1-8 znd hex.

1шт.

15

64482C1

LINK, torque arm flip

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

3/4 x 3-1/4 type 5

1шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4 cad p/t lock type 5

1шт.

16

63336C1

PIN ASSY, note 1

1шт.

16

1256623C1

PIN ASSY, note 2

1шт.

17

373025R91

PIN ASSY.

PIN, click

1шт.

18

63337C1

ROD ASSY, lift arm

1шт.

19

63338C1

ROD ASSY, adjustable leg

2шт.

21613R1

BOLT,Hex, 1" - 8 x 3 3/4", Gr 5

SCREW, 1-8 x 3-3/4 znd hex-hd cap

1шт.

131002

WASHER,1"

1.06 x 2.50 x .136 znd

1шт.

24567R1

LOCK NUT,1"-8, GB

NUT, 1-8 znd hex. lock

1шт.

20

63339C1

PIN, 1 x 3-1/2

2шт.

131002

WASHER,1"

1.06 x 2.50 x .136

4шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

21

64483C1

SUPPORT, transport lock, arm

2шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

1шт.

9413969

NUT,5/8"-11, GB

5/8 cad p/t lock type 5

1шт.

22

20812R1

PIN,5/8" x 2 1/4"

5/8 x 2.250 hd type 1

1шт.

130999

WASHER,5/8"

.688 x 1.750 x .108

1шт.

480523R1

HAIR PIN COTTER

quick attachable

1шт.

23

63341C2

FRAME ASSY, cable control, arm

1шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 4-1/2 znd hex-hd cap

2шт.

495-21081

WASHER,3/4"

.812 x 2.00 x .22 znd

4шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 znd hex. lock

2шт.

24

63343C1

SPACER

locking, collar

2шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 znd hex-hd mach

2шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 znd hex. lock

2шт.

25

63344C1

ROD, front safety lock

1шт.

21957R1

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2 hd type 1

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

26

63345C1

ROD ASSY, rear safety lock

1шт.

21957R1

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2 hd type 1

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

27

63347C1

BAR, spring, linkage

2шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 znd hex-hd mach

2шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. lock

2шт.

28

63182C1

SPRING

extension

2шт.

29

63348C1

BOLT,Eye, 1/2" - 13 x 16 1/16"

eye

2шт.

51693D

BAR

WASHER, 1/2 in. wedge

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

30

63354C1

BAR, hitch

1шт.

31

63355C1

BUSHING, hitch

1шт.

17294R1

BOLT,Hex, 1" - 8 x 6", Gr 5

SCREW, 1-8 x 6 znd hex-hd cap

1шт.

131002

WASHER,1"

1.062 x 2.50 x .136 znd

2шт.

24567R1

LOCK NUT,1"-8, GB

NUT, 1-8 znd hex. lock

1шт.

32

1256628C1

CLEVIS, hitch, note 2

1шт.

33

1256629C1

BUSHING

hitch clevis, note 2

1шт.

17294R1

BOLT,Hex, 1" - 8 x 6", Gr 5

1 x 6 znd type 5

1шт.

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1.062 x 2.000 x .108

2шт.

26566R1

LOCK NUT

1 p/t lock type 5

1шт.
