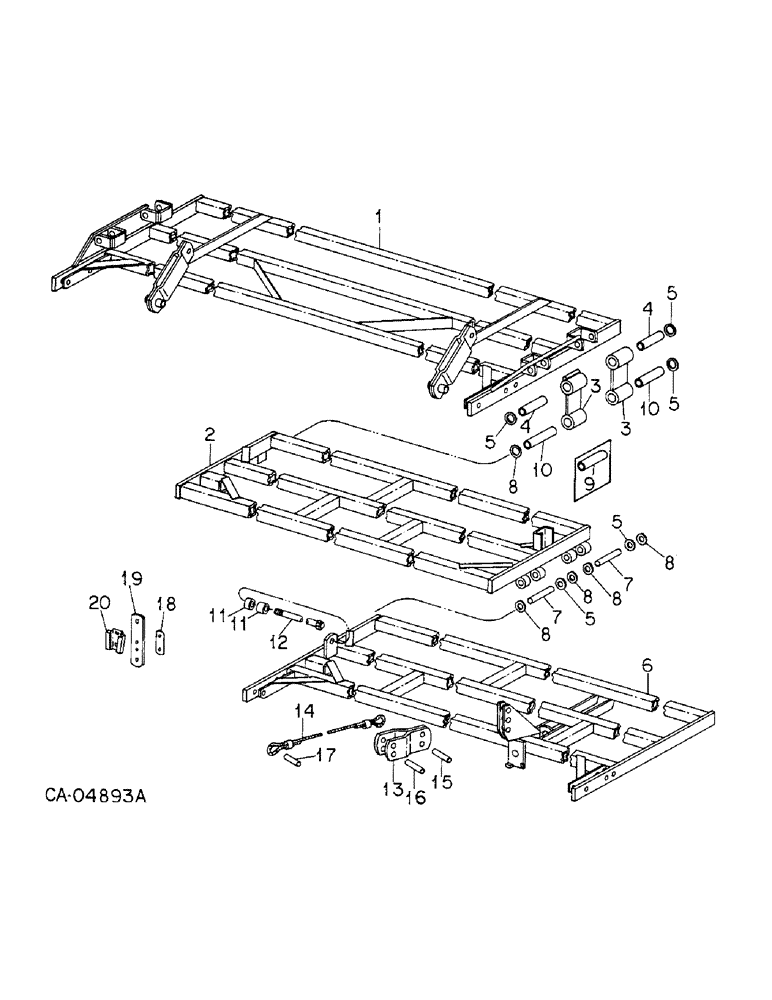

Запчасти Case IH 356 (AU-02) - CENTER FRAME AND WING FRAMES

1

1256610C1

FRAME ASSY, center, Start Serial: 784

1шт.

1

63289C1

FRAME ASSY, center, Serial Range: -783

1шт.

2

63290C1

FRAME ASSY, inner wing LH, Serial Range: -783

1шт.

2

1256611C1

FRAME ASSY, inner wing LH, 48 ft. machines, Start Serial: 784

1шт.

2

63291C1

FRAME ASSY, inner wing RH, Serial Range: -783

1шт.

2

1256612C1

FRAME ASSY, inner wing RH, 48 ft. machines, Start Serial: 784

1шт.

2

63292C1

FRAME ASSY, inner wing LH, Serial Range: -783

1шт.

2

1256615C1

FRAME ASSY, inner wing LH, 54 ft. machines, Start Serial: 784

1шт.

2

63293C1

FRAME ASSY, inner wing RH, Serial Range: -783

1шт.

2

1256616C1

FRAME ASSY, inner wing RH, 54 ft. machines, Start Serial: 784

1шт.

2

63294C1

FRAME ASSY, inner wing LH, Serial Range: -783

1шт.

2

1256619C1

FRAME ASSY, inner wing LH, 60 ft. machines, Start Serial: 784

1шт.

2

63295C1

FRAME ASSY, inner wing RH, Serial Range: -783

1шт.

2

1256620C1

FRAME ASSY, inner wing RH, 60 ft. machines, Start Serial: 784

1шт.

3

63296C1

HINGE, connector

4шт.

4

63297C1

TUBE,1.25" OD, 6.5" Length

center hinge, bushing

7шт.

413-16128

BOLT,Hex, 1" - 8 x 8", Gr 5

SCREW, 1-8 x 8 znd hex-hd cap

4шт.

131002

WASHER,1"

1.062 x 2.50 x .136 znd

8шт.

24567R1

LOCK NUT,1"-8, GB

NUT, 1-8 znd hex. lock

4шт.

5

63298C1

WASHER, special mach, bushing

12шт.

6

63299C1

FRAME OUTER WING LH, Serial Range: -783

1шт.

6

1256613C1

FRAME, outer wing LH, 48 ft. machines, Start Serial: 784

1шт.

6

63300C1

FRAME, outer wing RH, Serial Range: -783

1шт.

6

1256614C1

FRAME, outer wing RH, 48 ft. machines, Start Serial: 784

1шт.

6

63301C1

FRAME, outer wing LH, Serial Range: -783

1шт.

6

1256617C1

FRAME, outer wing LH, 54 ft. machines, Start Serial: 784

1шт.

6

63302C1

FRAME, outer wing RH, Serial Range: -783

1шт.

6

1256618C1

FRAME, outer wing RH, 54 ft. machines, Start Serial: 784

1шт.

6

63303C1

FRAME OUTER WING LH, Serial Range: -783

1шт.

6

1256621C1

FRAME, outer wing LH, 60 ft. machines, Start Serial: 784

1шт.

6

63304C1

FRAME, outer wing RH, Serial Range: -783

1шт.

6

1256622C1

FRAME, outer wing RH, 60 ft. machines, Start Serial: 784

1шт.

7

63305C1

TUBE,1.25" OD, 7.312" Length

middle hinge wing, bushing

4шт.

20930R1

BOLT,Hex, 1" - 8 x 9", Gr 5

SCREW, 1-8 x 9 znd hex-hd cap

8шт.

131002

WASHER,1"

1.062 x 2.50 x .136 znd

8шт.

24567R1

LOCK NUT,1"-8, GB

NUT, 1-8 znd hex. lock

8шт.

8

63306C1

WASHER, trimmed

8шт.

9

63307C1

TUBE, rear wing hinge, bushing, 1.25" OD, 7.187" Length

2шт.

10

63308C1

TUBE,1.25" OD, 7.437" Length

front wing hinge, bushing, Serial Range: -783

2шт.

10

63308C1

TUBE,1.25" OD, 7.437" Length

front wing hinge, bushing, Start Serial: 784

4шт.

11

63309C1

PAD, urethane, spring

8шт.

12

63310C1

BOLT, 7/8, stud

2шт.

63311C1

WASHER, special

12шт.

9413973

LOCK NUT,7/8"-9, GB

NUT, 7/8-9 znd hex. lock

2шт.

13

63212C1

REFLECTOR

CLEVIS, adj cable, bar

2шт.

14

63313C1

CABLE, wing, 48 ft. machines

2шт.

22387R1

BOLT, 1 x 5-1/2 type 5

2шт.

24567R1

LOCK NUT,1"-8, GB

NUT, 1 cad p/t lock type 5

2шт.

14

63317C1

CABLE, wing, 54 ft. machines

2шт.

22837R1

SCREW

BOLT, 1 x 5-1/2 type 5

2шт.

24567R1

LOCK NUT,1"-8, GB

NUT, 1 cad p/t lock type 5

2шт.

14

63318C1

CABLE, wing, 60 ft. machines

2шт.

22837R1

SCREW

BOLT, 1 x 5-1/2 type 5

2шт.

24567R1

LOCK NUT,1"-8, GB

NUT, 1 cad p/t lock type 5

2шт.

15

63314C1

SPACER, adj bar, bushing

2шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 znd hex-hd cap

2шт.

495-21081

WASHER,3/4"

.812 x 2.00 x .122 znd

4шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 znd hex. lock

2шт.

16

63315C1

SPACER, adj bar cable, bushing

2шт.

271781

BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5

BOLT, 3/4 x 4-1/2 type 5

2шт.

495-21081

WASHER,3/4"

.812 x 2.00 x .122 znd

4шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 znd hex. lock

2шт.

17

63316C1

SPACER, cable control arm, bushing

2шт.

18

62593C1

BAR

SUPPORT, S.M.V lamp

1шт.

19

63242C1

BAR

CLAMP, S.M.V. mounting

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

20

398976R1

BRACKET

SOCKET, lamp bracket

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

271501

SOCKET

NUT, 7/16-14 znd hex.

1шт.
