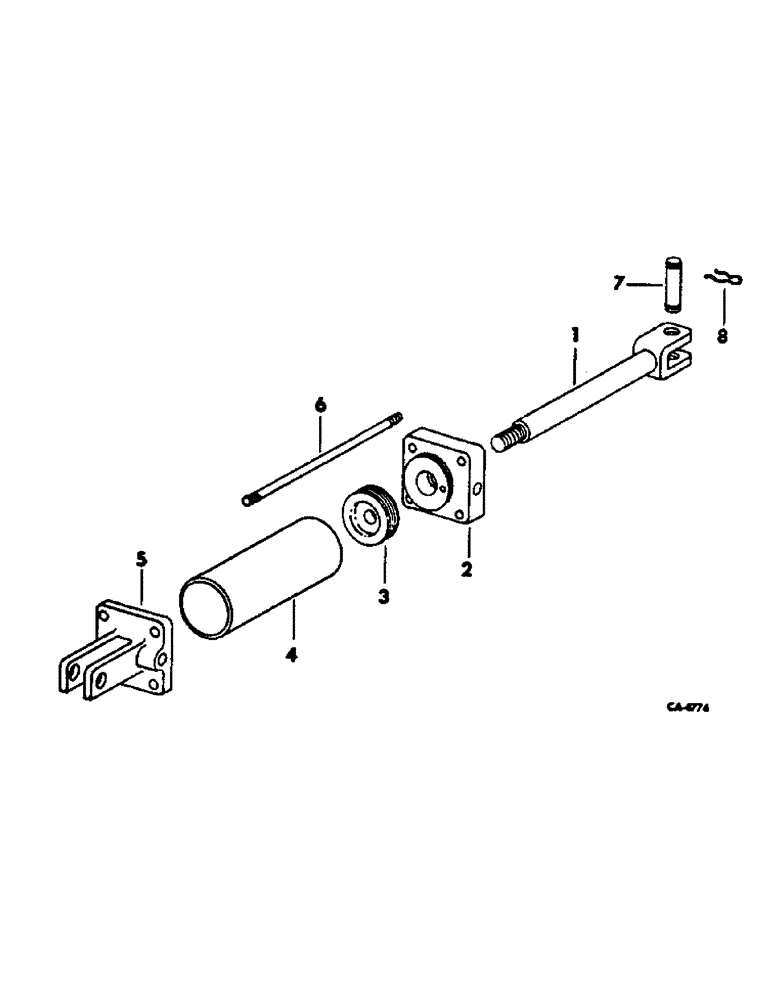

Запчасти Case IH 356 (AU-13) - HYDRAULIC CYLINDER 5 X 16 IN., DOUBLE ACTING

63378C91

CYLINDER

ASSY, hyd 5 x 16 in. da, for service replacement order 959947R91

1шт.

1

63486C1

ROD ASSY, piston

1шт.

2

63487C1

END, cylinder

1шт.

3

63488C1

PISTON, cylinder

1шт.

26476R1

NUT, 1-1/8-7 hex. lock

1шт.

4

63489C1

SLEEVE, cylinder tube

1шт.

5

63490C1

YOKE, clevis & head

1шт.

6

63491C1

ROD, cylinder tie

4шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. M-flock

8шт.

7

63484C1

PIN, clevis

2шт.

8

63485C1

PIN, retainer

4шт.

63492C1

KIT

cylinder repair

1шт.
