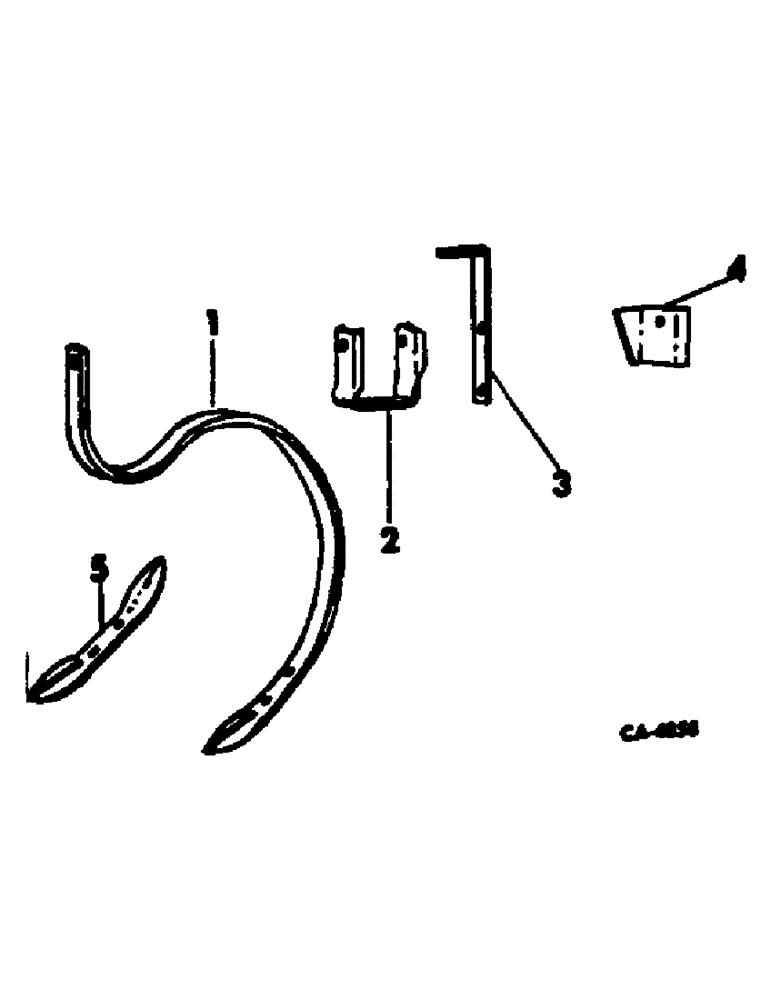

Запчасти Case IH 354 (AS-08) - TEETH, CLAMPS AND GUARDS, 6 IN. SPACING

1

63203C1

TOOTH

61 used w/unit A, 67 used w/unit B, 73 used w/unit C, 79 used w/unit D

1шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

SCREW, 1/2-13 x 4-1/2 znd hex-hd cap

2шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 7 znd hex-hd cap, 59 used w/unit A, 65 used w/unit B, 71 used w/unit C, 77 used w/unit D

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 znd hex. lock, 1 per screw

1шт.

2

74018C1

CLAMP

tooth, replaces 73656C1, 1 per tooth

1шт.

3

63205C2

GUIDE, cable

2шт.

NLS

NO LONGER SERVICED

BOLT, 3/4 x 4-1/2 type 5

2шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4 cad p/t lock type 5

2шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 znd hex. lock

2шт.

4

63251C1

GUARD, cable

2шт.

5

63250C1

POINT

reversible spring

1шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 plow type 1

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.
