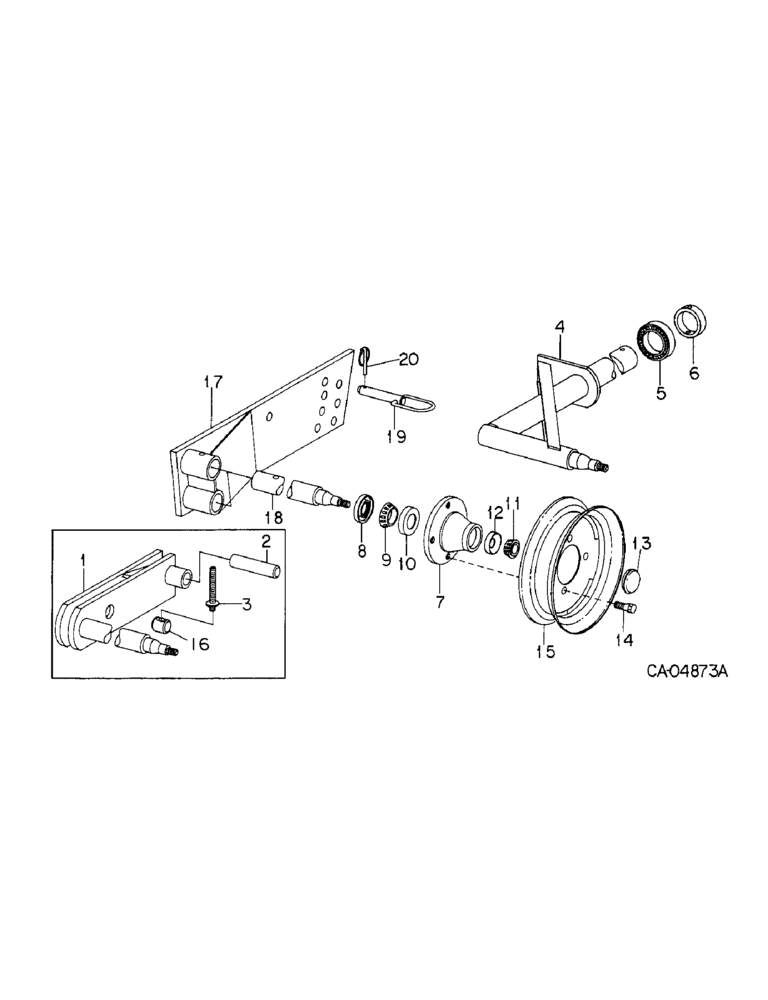

Запчасти Case IH 354 (AS-06) - WHEEL, AXLE AND HUB UNIT

1

63207C1

AXLE

adjustable, note *1, Serial Range: -1120

2шт.

1

64538C1

AXLE, center gauge, note *1, Serial Range: -1120

2шт.

NLS

NO LONGER SERVICED

21/32 x 1-5/16 x 13 ga

4шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

4шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

4шт.

2

63208C1

PIN, 1 x 5.2, note *1, Serial Range: -1120

4шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

4шт.

3

63209C1

SCREW

adjusting, note 1, Serial Range: -1120

4шт.

3

1256362C1

ADJUSTMENT SCREW

adjusting, note 2, Start Serial: 1121

4шт.

63494C1

NUT

adjusting screw, note 1, Serial Range: -1120

4шт.

1256365C1

NUT

adjusting, note 2, Start Serial: 1121

4шт.

63493C1

WASHER, machine bushing, note a, Serial Range: -1120

4шт.

23277R1

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, 5/32" x 1 1/4", Slotted

4шт.

4

63211C1

SPINDLE ASSY, caster

2шт.

5

62829C1

THRUST BEARING

thrust

2шт.

6

62831C1

BUSHING

TUBE, collar

2шт.

18784R1

BOLT,Hex, 3/8"-16 x 2 3/4", G2

3/8 x 2-3/4 znd hex-hd mach

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 znd hex. lock

2шт.

7

460149R11

HUB

ASSY W/CUPS

6шт.

8

652769R91

OIL SEAL

grease

8шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, inner cone

6шт.

10

651817R1

BEARING CUP

BEARING, inner cup

6шт.

10

651817R1GV

BEARING CUP

Value, Bearing Cup

6шт.

11

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING, outer cone

6шт.

11

651815R91GV

BEARING CONE

Value, Cone Bearing

6шт.

12

651814R1

BEARING CUP

BEARING, outer cup

6шт.

13

564773R1

CAP

hub

6шт.

14

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

24шт.

15

455169R92

WHEEL

15 x 5KB, recommend 7.60, 15 tire

6шт.

387841R91

VALVE

TR 413

1шт.

16

63210C1

PIN

round adjusting, Serial Range: -1120

1шт.

NLS

NO LONGER SERVICED

21/32 x 1-5/16 x 13 ga

2шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

17

1256387C1

PLATE, adjustable axle LH, Start Serial: 1121

2шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

9413962

LOCK NUT,3/4"-10, GB

NUT, 3/4 PHC p/t lock type 5

2шт.

17

1256388C1

PLATE, adjustable axle RH, Start Serial: 1121

2шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

9413962

LOCK NUT,3/4"-10, GB

NUT, 3/4 PHC p/t lock type 5

2шт.

18

1256389C1

SPINDLE

adjustable axle, Start Serial: 1121

4шт.

181678

BOLT,Hex, 7/16"-20 x 3", G5

7/16-NF x 3 type 5

4шт.

9413954

LOCK NUT,7/16"-14, GB

NUT, 7/16 PHC p/t lock type 5

4шт.

19

80070C1

PIN, axle plate lockout, Start Serial: 1121

1шт.

20

373025R91

PIN ASSY.

PIN, axle plate pin click, Start Serial: 1121

1шт.
