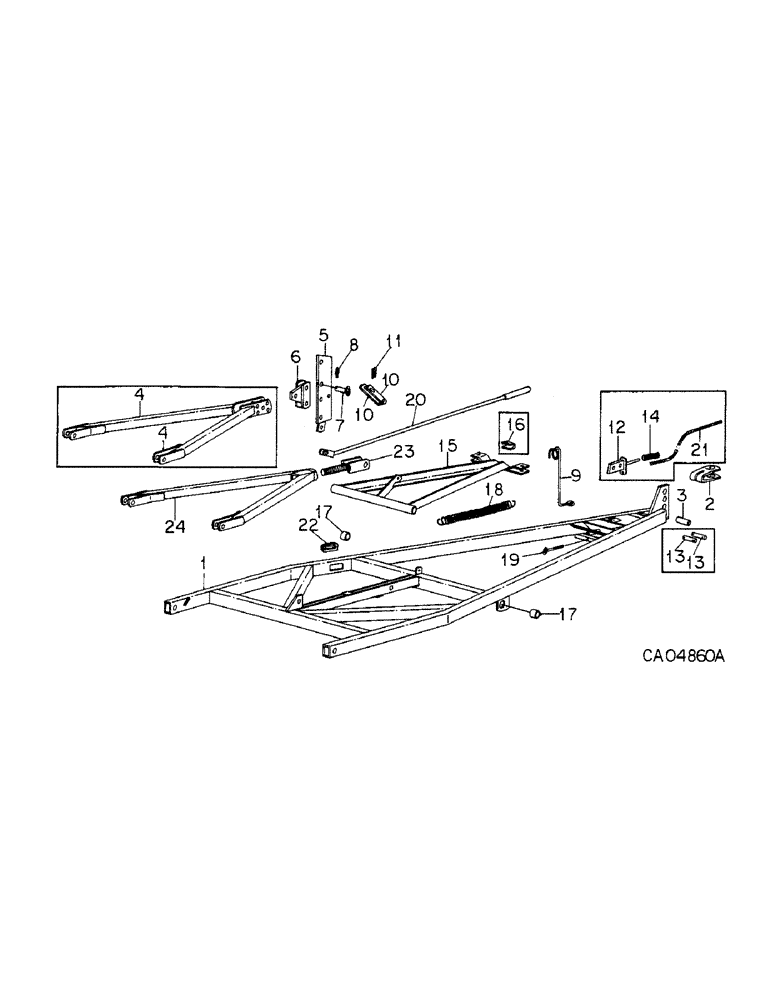

Запчасти Case IH 354 (AS-04) - CARRIER FRAME AND HITCH

1

1256490C1

FRAME ASSY, carrier, replaces 63167C2

1шт.

271781

BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5

SCREW, 3/4-10 x 4-1/2 znd hex-hd cap

2шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 znd hex. lock

2шт.

2

145852C1

CLEVIS

hitch, replaces 62503C1

1шт.

3

62504C1

BUSHING

hitch

1шт.

18844R1

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 2

3/4 x 5-1/2 znd hex-hd mach

1шт.

26512R1

WASHER

.781 x 2.00 x .164 znd

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

3/4-10 znd hex.

1шт.

4

63170C1

ARM ASSY, lift, serial no. 1050 and below

2шт.

5

63171C1

ARM ASSY, torque, serial no. 1050 and below

1шт.

5

73793C1

ARM ASSY, torque, serial no. 1051 and above

1шт.

6

63172C1

LINK ASSY, flip

1шт.

7

63173C1

PIN ASSY, flip link

1шт.

8

373025R91

PIN ASSY.

PIN, click, replaces 520177R11

1шт.

9

63175C1

GUIDE, hose

1шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 znd hex-hd mach

1шт.

188755R1

WASHER

.469 x 1.470 x .09 znd

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex.

1шт.

10

63174C1

ARM, transport, serial no. 1050 and below

2шт.

10

73792C1

ARM, transport, serial no. 1051 thru 1110

2шт.

10

75739C1

ARM, transport, serial no. 1111 and above

2шт.

21849R1

PIN, 5/8 x 2.125 hd type 5 5/8" x 2 1/8"

2шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

480523R1

HAIR PIN COTTER

quick attachable

1шт.

21989R1

PIN, 7/16 x 2 znd hd

2шт.

188755R1

WASHER

.469 x 1.470 x .09 znd

3шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

1шт.

11

480523R1

HAIR PIN COTTER

quick attachable

1шт.

12

63176C1

LOCK ASSY, serial no. 1120 and below

1шт.

13

63177C1

PIN, 3/4 x 2-7/8 znd, serial no. 1120 and below

2шт.

Q1552

WASHER

.781 x 1.25 x .120 flat

4шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

4шт.

14

63178C1

SPRING, 5 in. compression

1шт.

21053R1

WASHER

.594 x 1.250 x .105 znd

1шт.

15

63179C1

ARM ASSY, cable control, serial no. 1110 and below

1шт.

15

75738C1

ARM ASSY, cable control, seiral no. 1111 and above

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 znd hex-hd cap

2шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 znd hex.

2шт.

16

63180C1

CHANNEL

GUARD, lock, serial no. 1120 and below

1шт.

17

63181C1

COLLAR, locking

2шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 znd hex-hd mach

4шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 znd hex. lock

2шт.

18

63182C1

SPRING

extension

1шт.

19

63183C1

BOLT, eye

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

20

63184C1

LOCK, push rod

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 znd hex-hd mach

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 znd hex. lock

1шт.

21

63185C1

ROPE, trip

1шт.

22

63186C1

GROMMET

1шт.

23

73767C1

SCREW ASSY, adj clevis, serial no. 1051 and above

1шт.

24

73769C1

ARM ASSY, lift, serial no. 1051 and above

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 znd hex-hd cap

2шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 znd hex. lock

5шт.

495-11081

WASHER,3/4", SAE

.812 x 1.469 x .108 ga

2шт.
