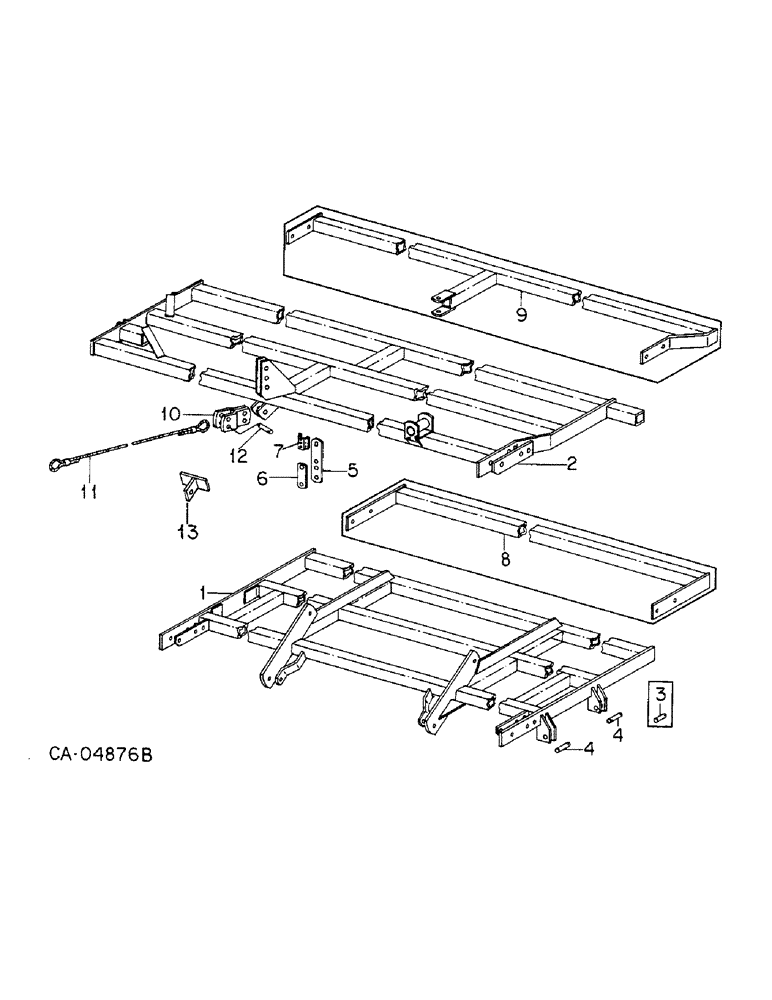

Запчасти Case IH 354 (AS-02) - CENTER FRAME AND WING FRAMES

1

73768C1

FRAME ASSY, center, replaces 63187C1, Serial Range: -1120

1шт.

1

1256491C1

FRAME ASSY, center, Start Serial: 1121

1шт.

2

63188C1

FRAME ASSY, 30 ft wing LH, Serial Range: -1120

1шт.

2

1256492C1

FRAME ASSY, 30 ft wing LH, Start Serial: 1121

1шт.

2

63189C1

FRAME ASSY, 30 ft wing RH, Serial Range: -1120

1шт.

2

1256493C1

FRAME ASSY, 30 ft wing RH, Serial Range: -1120

1шт.

2

63190C1

FRAME ASSY, 33 ft wing LH, Serial Range: -1120

1шт.

2

1256494C1

FRAME ASSY, 33 ft wing LH, Start Serial: 1121

1шт.

2

63191C1

FRAME ASSY, 33 ft wing RH, Serial Range: -1120

1шт.

2

1256495C1

FRAME ASSY, 33 ft wing RH, Start Serial: 1121

1шт.

2

63192C1

FRAME ASSY, 36 ft wing LH, Serial Range: -1120

1шт.

2

1256496C1

FRAME ASSY, 36 ft wing LH, Start Serial: 1121

1шт.

2

63193C1

FRAME ASSY, 36 ft wing RH, Serial Range: -1120

1шт.

2

1256497C1

FRAME ASSY, 36 ft wing RH, Start Serial: 1121

1шт.

2

63194C1

FRAME ASSY, 39 ft wing LH, Serial Range: -1120

1шт.

2

1256498C1

FRAME ASSY, 39 ft wing LH, Start Serial: 1121

1шт.

2

63195C1

FRAME ASSY, 39 ft wing RH, Serial Range: -1120

1шт.

2

1256499C1

FRAME ASSY, 39 ft wing RH, Start Serial: 1121

1шт.

3

63196C1

PIN

rear hinge, Serial Range: -1120

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

22767R1

WASHER

1.094 x 1.500 x .105

2шт.

4

63197C1

PIN hinge, front, Serial Range: -1120

2шт.

4

63197C1

PIN hinge, front, Start Serial: 1121

4шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

22767R1

WASHER

1.094 x 1.50 x .105 znd

1шт.

5

62593C1

BAR

SUPPORT, SMV lamp

1шт.

6

63242C1

BAR

CLAMP, SMV mtg.

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 znd type 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

7

398976R1

BRACKET

SOCKET, lamp bracket

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

271501

SOCKET

NUT, 7/16-14 znd hex.

1шт.

8

63244C1

BAR ASSY, center 3rd

1шт.

9

63245C1

WING, 3rd bar, w/30 ft wing

2шт.

9

63246C1

WING, 3rd bar, w/33 ft wing

2шт.

9

63247C1

WING, 3rd bar, w/36 ft wing

2шт.

9

63248C1

WING, 3rd bar, w/39 ft wing

2шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 znd hex-hd cap

2шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 xnd hex. lock

2шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

12шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

12шт.

280954

NUT,3/4"-10, G5

12шт.

10

63198C1

BAR ASSY, adjusting cable

2шт.

22929R1

HEADED PIN,19.05mm OD x 66.67mm L

PIN, HEADED, 3/4" x 2 5/8"

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

11

63199C1

CABLE

wing, w/30 ft wing

2шт.

11

63200C1

CABLE

wing, w/322 and 36 ft wing

2шт.

11

63201C1

CABLE, wing, w/39 ft wing

2шт.

12

63202C1

PIN, 3/4 x 2-7/8 znd

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

13

63326C1

SUPPORT, safety-flag

1шт.
