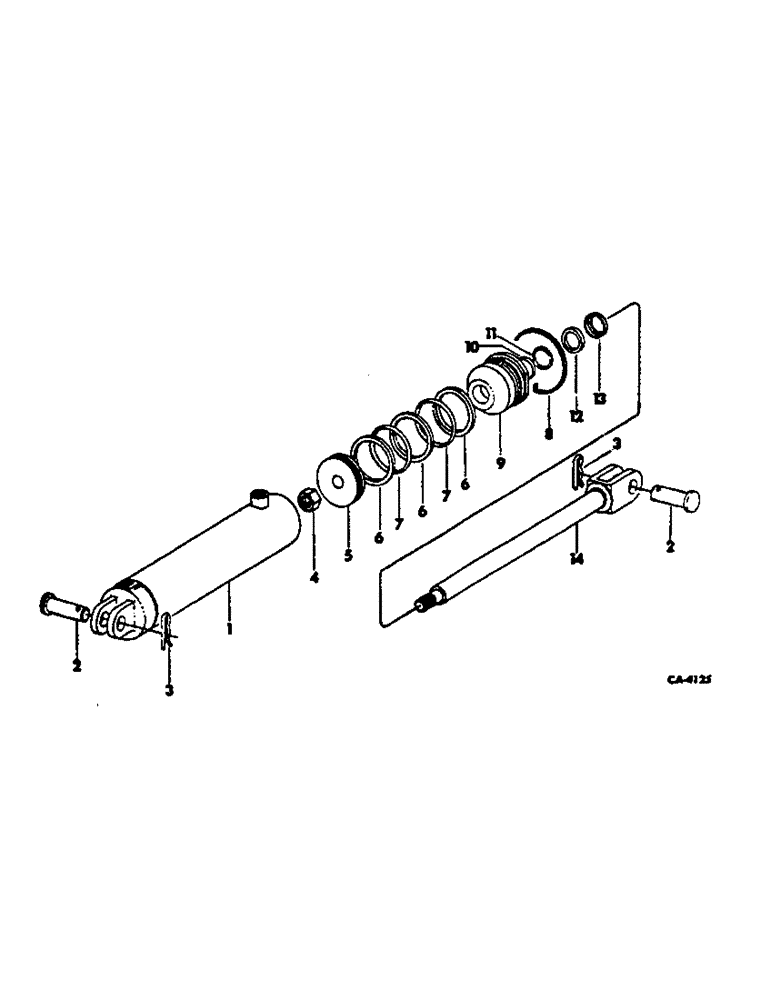

Запчасти Case IH 354 (AS-12) - HYDRAULIC CYLINDER AND CONNECTIONS, HYDRAULIC COUPLERS, HYDRAULIC CYLINDER 4 X 16 DA
№
Артикул
Название
Примечание
Количество
548002R92
CYLINDER
ASSY, hyd 4 x 16 da, for components, see list of parts under details of hyd cylinder
1шт.
63249C1
HOSE ASSY, 216 in.
2шт.
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
5/8 OD tube
2шт.
108686
ELBOW,90 Degree, 1/2" NPT Street
1/2 x 90 deg street, black
2шт.
1272150C91
CYLINDER
ASSY, hyd 4 x 16 da, replaces 145213C92, refer to cyl, 1 for components
1шт.
395149R1
QUICK MALE COUPLING
COUPLER, poppet type, 7/8-14 thread
1шт.
544787R91
COUPLING, BREAK AWAY
COUPLER, self sealing type, 7/8-14 thread
1шт.
1285718C2
QUICK MALE COUPLING
COUPLER, self sealing type, ISO standard, 3/4-16 thread
1шт.
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
5/8 OD tube class 6, used on coupler with 7/8-14 threads
1шт.
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1/2 OD tube class 6, use on couplers with 3/4-16 threads
1шт.
407045R1
FITTING
BUSHING, 3/4-16 std thd x 7/8-14, str thd, used to adapt 3/4-16 hose fitting to 7/8-14 coupling
1шт.
407545R1
FITTING
BUSHING REDUCER, 7/8-14 hose fitting to 3/4-14 hose fitting to 3/4-16 coupling
1шт.
548002R92
CYLINDER
ASSY, 4 x 16 in. da
1шт.
1
548018R1
BODY, hydraulic cyl
1шт.
2
60909C1
PIN
cyl pivot head
2шт.
3
520175R1
CLIP
PIN, q.a. cotter
2шт.
4
9413974
LOCK NUT,7/8"-14, GB
NUT, 7/8-14 lock
1шт.
5
548013R1
PISTON
1шт.
6
381107R1
BACK-UP RING
WASHER, back-up
3шт.
7
347801R1
O-RING,0.21" Thk x 3.6" ID, -342, Cl 6, 90 Duro
3-5/8 x 4 class 6
2шт.
8
548025R1
RETAINER
frt head
1шт.
9
548022R1
HEAD
frt
1шт.
10
378735R1
O-RING,1.475" ID x 0.21" Width
1-1/2 x 1-7/8 class 6
1шт.
11
403622R1
BACK-UP RING
WASHER, quad ring back-up
2шт.
12
383770R1
WASHER
WIPER, piston rod
1шт.
13
383771R1
SEALING WASHER
RETAINER, piston rod wiper
1шт.
14
548020R1
ROD
ASSY, piston
1шт.
548024R91
KIT
seal rebuild
1шт.
Выбрано товаров: 29
