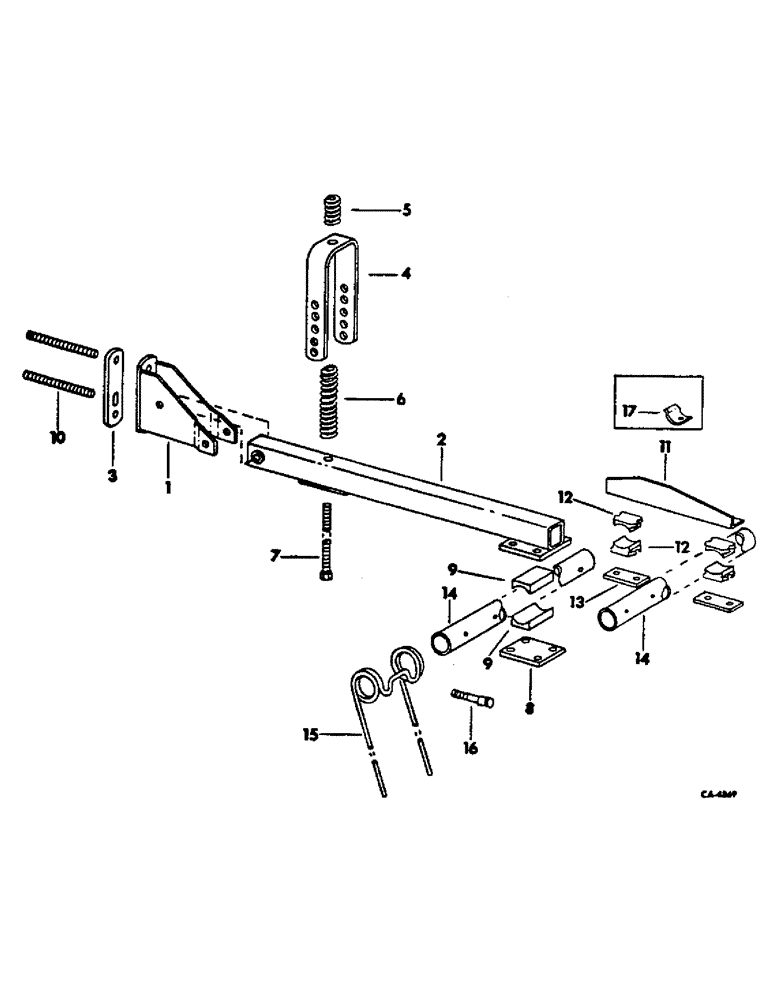

Запчасти Case IH 352 (AT-09) - MULCHER ATTACHMENT

1

63238C1

BRACKET

ASSY, mounting

6шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 znd hex-hd mach

12шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2-13 x 3 znd hex-hd mach

6шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 znd hex. MF lock

18шт.

2

63239C1

ARM

ASSY, carrier

6шт.

3

63252C1

BAR

CLAMP, flat

6шт.

4

63253C1

ANCHOR

spring

6шт.

5

63254C1

SPRING

compression

6шт.

6

63255C1

SPRING

compression

6шт.

7

63256C1

BOLT

ROD, compression

6шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 znd hex. jam

12шт.

8

63257C2

PLATE

6шт.

9

547853R1

CLAMP

casting

12шт.

18804R1

BOLT,Hex, 7/16"-14 x 4", G2

7/16-14 x 4 znd hex-hd mach

24шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

24шт.

271501

SOCKET

NUT, 7/16-14 znd hex.

24шт.

10

63258C1

STUD

12шт.

120396

WASHER

.531 x 1.062 x .074 znd

24шт.

120384

WASHER,1/2"

LOCK, 1/2"

24шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

24шт.

11

63228C1

SUPPORT

FRAME, 7 for units A, B and C, 9 for unit D

1шт.

12

63222C1

CLAMP

casting, 4 per frame

1шт.

18804R1

BOLT,Hex, 7/16"-14 x 4", G2

7/16-14 x 4 znd hex-hd mach, 1 per clamp

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , 1 per clamp 7/16"

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex., 1 per clamp

1шт.

13

63223C1

PLATE

clamp, 2 per frame

1шт.

14

63430C1

TOOTH

BAR, 3.5 ft., unit A

4шт.

14

63230C1

TUBE

TOOTHBAR, 5.5 ft., unit B

4шт.

14

63231C1

TOOTHBAR, 6.5 ft., unit C

4шт.

14

63233C1

TUBE

TOOTHBAR, 8.5 ft., unit D

4шт.

14

63234C1

TOOTHBAR, 10.5 ft.

2шт.

15

63235C2

TOOTH

6 in. spacing, 38 for unit A, 46 for unit B, 50 for unit C, 58 for unit D

1шт.

16

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

shoulder, 2 per tooth

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cad prev. torque, 2 per tooth

1шт.

17

(Not used in this application)

1шт.
