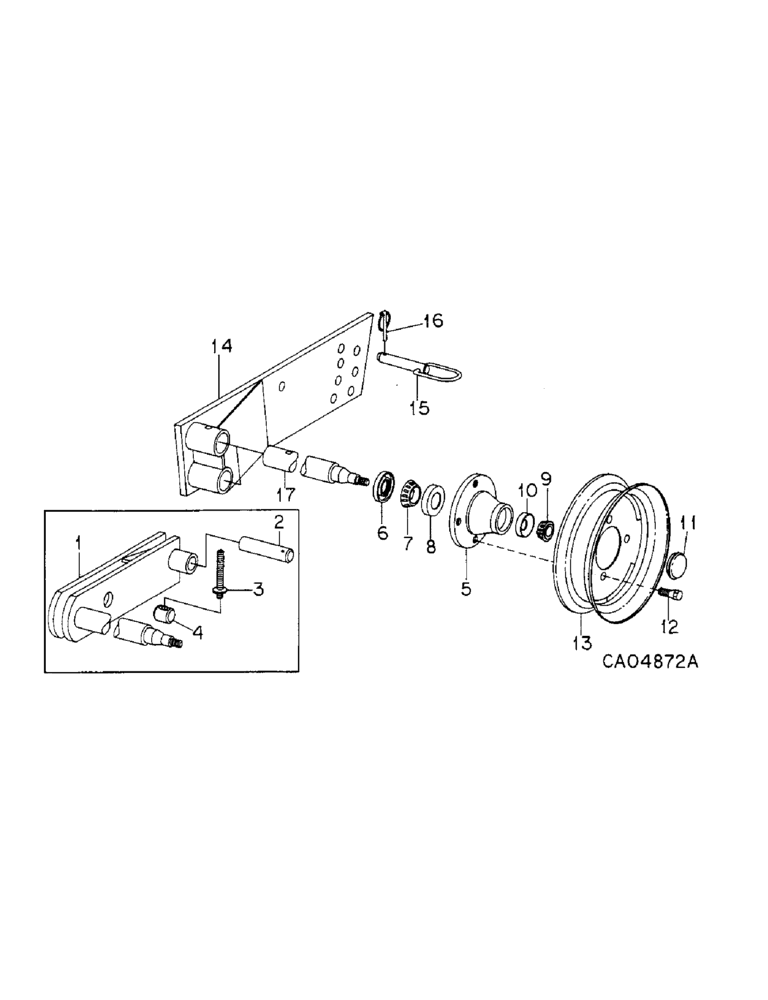

Запчасти Case IH 352 (AT-06) - WHEEL, AXLE AND HUB UNIT
№
Артикул
Название
Примечание
Количество
1
63207C1
AXLE
adjustable, note 1
4шт.
2
63208C1
PIN, x 5.2, note 1
4шт.
32-1632
COTTER PIN,1/4" x 2"
PIN, SPLIT (COTTER), 1/4" x 2"
4шт.
3
63209C1
SCREW
adjustable, note 1
4шт.
3
1256362C1
ADJUSTMENT SCREW
adjustable, note 2
4шт.
4
63210C1
PIN
round adj, note 1
4шт.
63494C1
NUT
adjustable, note 1
4шт.
1256365R1
NUT, adjustable, note 2
4шт.
63493C1
WASHER, machines bushing, note 1
4шт.
23277R1
LOCK PIN,5/32" x 1 1/4", Slotted
PIN, 5/32" x 1 1/4", Slotted
4шт.
5
460149R11
HUB
ASSY W/CUPS
4шт.
NLS
NO LONGER SERVICED
.656 x 1.312 x .074
4шт.
103396
PIN, SPLIT (COTTER),5/32" x 1"
5/32" x 1"
4шт.
6
652769R91
OIL SEAL
4шт.
8
651815R91
BEARING ASSY,7.508" ID x 17.82" OD x 6"
BEARING, outer cone
4шт.
8
651815R91GV
BEARING CONE
Value, Cone Bearing
4шт.
9
651817R1GV
BEARING CUP
Value, Bearing Cup
4шт.
10
651814R1
BEARING CUP
BEARING, outer cup
4шт.
11
564773R1
CAP
hub
4шт.
12
351079R1
BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"
wheel
16шт.
13
455169R92
WHEEL
.15 x 5 KB, recommend 7.60, 15 tire
4шт.
181678
BOLT,Hex, 7/16"-20 x 3", G5
7/16-NF x 3 type 5, note 2
4шт.
9413954
LOCK NUT,7/16"-14, GB
NUT, 7/16 PHC p/t lock type 5
4шт.
387841R91
VALVE
TR 413
1шт.
14
1256387C1
PLATE, adjustable axle LH, note 2
2шт.
9413962
LOCK NUT,3/4"-10, GB
NUT, 3/4 PHC p/t lock type 5
2шт.
14
1256388C1
PLATE, adjustable axle RH, note 2
2шт.
9413962
LOCK NUT,3/4"-10, GB
NUT, 3/4 PHC p/t lock type 5
2шт.
15
80070C1
PIN, adjustable axle plate, note 2
4шт.
16
373025C1
PIN, click, note 2
4шт.
17
1256389C1
SPINDLE
8-1/4 in. long, note 2
4шт.
181678
BOLT,Hex, 7/16"-20 x 3", G5
7-16-NF x 3 type 5, not serviced separately, note 2
4шт.
9413954
LOCK NUT,7/16"-14, GB
NUT, 7/16 PHC p/t lock type 5, note 2
4шт.
Выбрано товаров: 38
