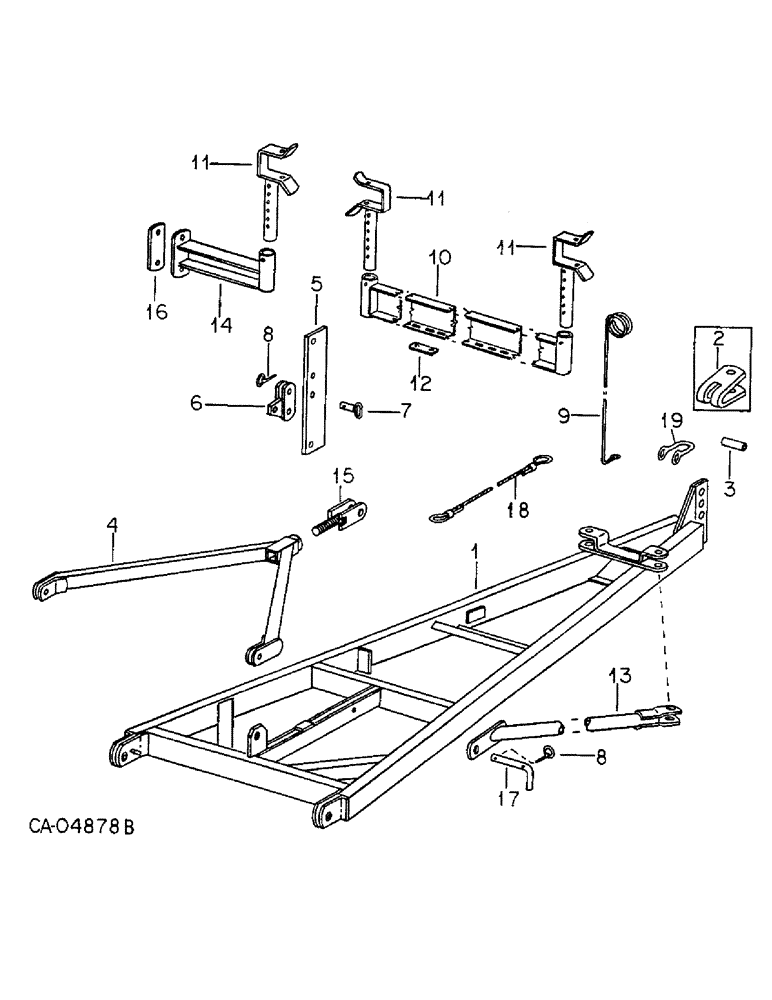

Запчасти Case IH 352 (AT-04) - CARRIER FRAME AND HITCH

1

63389C1

FRAME ASSY, carrier, note 1, for 18, 21 and 24 ft. machines

1шт.

1

1256372C1

FRAME ASSY, carrier, note 2, for 18, 21, 24 ft machiens

1шт.

1

63390C1

FRAME ASSY, carrier, note 1, for 27 ft. machines

1шт.

1

1256373C1

FRAME ASSY, carrier, note 2, for 27 ft machines

1шт.

2

145852C1

CLEVIS

hitch, note 1

1шт.

3

62504C1

BUSHING

BEARING, hitch

1шт.

18844R1

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 2

3/4 x 5-1/2 znd hex-hd mach

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

495-21081

WASHER,3/4"

13/16 x 2 x .148 znd plain

2шт.

280954

NUT,3/4"-10, G5

1шт.

4

63391C1

ARM ASSY, lift, for machines w/serial no. 982 and below

2шт.

4

74292C1

ARM ASSY, lift, for machines w/serial no. 983 and above

2шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 znd hex-hd cap

4шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 znd hex. lock

4шт.

5

63392C1

ARM, torque, note 1

1шт.

5

1256390C1

ARM, torque, note 2, FR 18, 21, 24 ft machines

2шт.

5

1256397C1

ARM, torque, note 2, for 27 ft machines

1шт.

22919R1

PIN, 3/8 x 1-3/4 znd roll

1шт.

6

63393C1

LINK, flip, note 1

1шт.

6

1256391C1

LINK, flip, note 2

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

3/4 x 2-3/4 znd type 5

1шт.

280954

NUT,3/4"-10, G5

1шт.

7

63173C1

PIN ASSY, flip link

1шт.

8

373025R91

PIN ASSY.

PIN, click

3шт.

9

63175C1

GUIDE, hose

1шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16-14 x 1-1/2 znd hex-hd mach

1шт.

496-21047

WASHER

.469 x .922 x .051 znd plain

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex.

1шт.

10

63394C1

CARRIER, wing, note 1, for 21, 24 and 27 ft. machines

1шт.

10

1256374C1

CARRIER, wing note 2, for 21, 24. 27 ft machines

1шт.

11

63395C1

STIRRUP ASSY, adj

2шт.

18801R1

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 2

7/16-14 x 2-3/4 znd hex-hd mach

2шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 znd hex. lock

2шт.

12

63396C1

CLAMP, for 21, 24 and 27 ft. machines

1шт.

18807R1

BOLT

7/16-14 x 5-1/2 znd hex-hd mach

4шт.

18801R1

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 2

7/16-14 x 2-3/4 znd hex-hd mach

6шт.

496-21047

WASHER

.469 x .922 x .051 znd plain

2шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 znd hex. lock

6шт.

13

63397C1

TUBE, wing brace, for 18, 21 and 24 ft. machines

2шт.

13

63398C1

TUBE,164.937" Length

wing brace, for 27 ft. machines

2шт.

22096R1

HEADED PIN,3/4" x 2 1/4"

PIN, 3/4 x 2.250 hd type 5

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

14

1256375C1

CARRIER ASSY, wing LH, for 18 ft. machines

1шт.

14

1256376C1

CARRIER ASSY, wing RH, for 18 ft. machines

1шт.

15

74293C1

SCREW, adjustable clevis

1шт.

16

63401C1

BAR, retaining, for 18 ft. machines

2шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

17

63402C1

P[IN, lock

2шт.

553050R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, 1/4" x 1 3/4", Slotted

2шт.

373025R1

PIN, click

1шт.

74293C1

SCREW, adj clevis

1шт.

18

1256393C1

CABLE, wing, 124.5 in., note 2, for 18 ft machines

1шт.

18

1256394C1

CABLE, wing, 137.0 in., note 2, for 21 ft machines

1шт.

18

1256395C1

CABLE, wing, 150.5 in., note 3, 24 ft machines

1шт.

18

1256396C1

CABLE, wing, 190.0 in., note 2

1шт.

19

1256392C1

CLEVIS, hitch, note 2

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

5/8 x 2-1/2 znd type 5

2шт.

22892R1

NUT, 5/8 p/t lock type 5

2шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

22444R1

CLEVIS PIN,3/8" x 1"

NUT, 3/4 p/t lock type 5

1шт.
