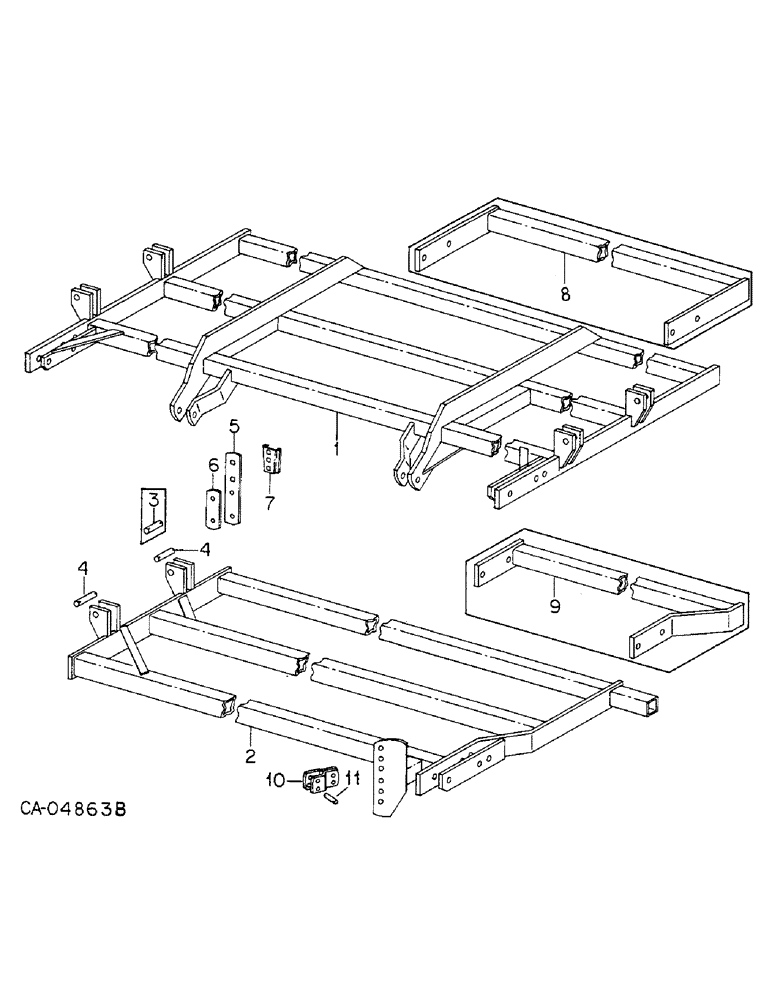

Запчасти Case IH 352 (AT-02) - CENTER FRAME AND WING FRAMES

1

63408C1

FRAME ASSY, center, Serial Range: -1246

1шт.

1

1256377C1

FRAME ASSY, center, 18 ft. 21 ft and 24 ft machines, Start Serial: 1247

1шт.

1

1256378C1

FRAME ASSY, center, 27 ft machines, Start Serial: 1247

1шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 4-1/2 znd hex-hd cap

2шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 znd hex. lock

2шт.

2

63409C1

FRAME ASSY, wing LH, 18 ft. machines, Serial Range: -1246

1шт.

2

1256379C1

FRAME ASSY, wing LH, 18 ft machines, Start Serial: 1247

1шт.

2

63410C1

FRAME ASSY, wing RH, 18 ft. machines, Serial Range: -1246

1шт.

2

1256380C1

FRAME ASSY, wing RH, 18 ft machines, Start Serial: 1247

1шт.

2

63411C1

FRAME ASSY, wing LH, 21 ft. machines, Serial Range: -1246

1шт.

2

1256381C1

FRAME ASSY, wing LH, 21 ft machines, Start Serial: 1247

1шт.

2

63412C1

FRAME ASSY, wing RH, 21 ft. machines, Serial Range: -1246

1шт.

2

1256382C1

FRAME ASSY, wing RH, 21 ft machines, Start Serial: 1247

1шт.

2

63413C1

FRAME ASSY, wing LH, 24 ft. machines, Serial Range: -1246

1шт.

2

1256383C1

FRAME ASSY, wing LH, 24 ft machines, Start Serial: 1247

1шт.

2

63414C1

FRAME ASSY, wing RH, 24 ft. machines, Serial Range: -1246

1шт.

2

1256384C1

FRAME ASSY, wing RH, 24 ft machines, Start Serial: 1247

1шт.

2

63415C1

FRAME ASSY, wing LH, 27 ft. machines, Serial Range: -1246

1шт.

2

1256385C1

FRAME ASSY, wing LH, 27 ft machines, Start Serial: 1247

1шт.

2

63416C1

FRAME ASSY, wing RH, 27 ft. machines, Serial Range: -1246

1шт.

2

1256386C1

FRAME ASSY, wing RH, 27 ft. machines, Start Serial: 1247

1шт.

3

63196C1

PIN

hinge, Serial Range: -1246

2шт.

20704R1

WASHER

1.03 x 1.50 x .105 znd plain

4шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

4

63197C1

PIN hinge, Serial Range: -1246

2шт.

4

63197C1

PIN hinge, Start Serial: 1247

4шт.

20704R1

WASHER

1.03 x 1.50 x .105 znd plain

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

5

62593C1

BAR

SUPPORT, S.M.V. lamp

1шт.

6

63242C1

BAR

CLAMP, S.M.V. mounting

1шт.

18786R1

BOLT,Hex, 3/8"-16 x 3 1/2", G2

3/8-16 x 3-1/2 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

7

398976R1

BRACKET

SOCKET, lamp bracket

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

271501

SOCKET

NUT, 7/16-14 znd hex.

1шт.

8

63244C1

BAR, center third tooth

1шт.

9

63422C1

BAR, 3rd wing tooth, for 18 ft. machines

2шт.

9

63421C1

BAR, 3rd wing tooth, note 1, for 21 ft. machines, Serial Range: -1246

1шт.

9

63423C1

BAR, 3rd wing tooth,for 24 ft. machines

2шт.

9

63424C1

BAR, 3rd wing tooth, note 1, for 27 ft. machines, Serial Range: -1246

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

12шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

12шт.

280954

NUT,3/4"-10, G5

12шт.

10

63198C1

BAR, adj. cable

2шт.

22929R1

HEADED PIN,19.05mm OD x 66.67mm L

PIN, HEADED, 3/4" x 2 5/8"

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

11

63202C1

PIN, 3/4 x 2-7/8 znd

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.
