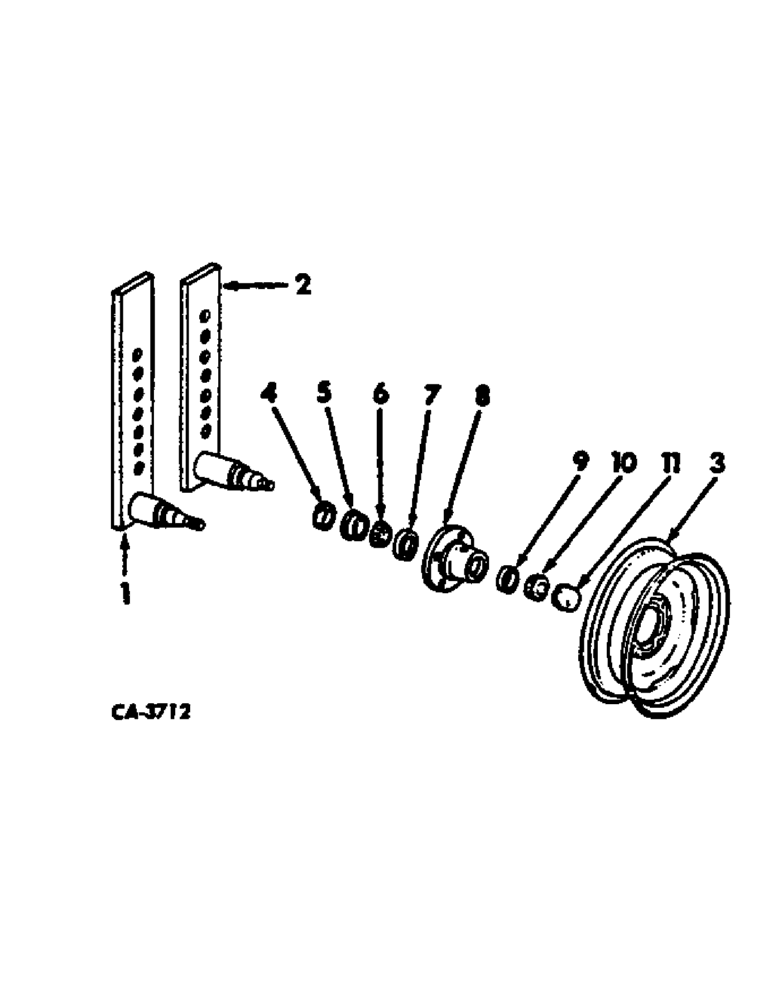

Запчасти Case IH 345 (AH-6) - GAUGE WHEELS

1

59233C1

WHEEL ASSY, gauge

2шт.

2

59235C1

WHEEL ASSY, wing gauge

2шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

3

608780R1

WHEEL ASSY, 14 in.

4шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel hub

4шт.

4

472222R1

SLEEVE

oil seal

4шт.

5

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil

4шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, inner cone

4шт.

7

651817R1

BEARING CUP

BEARING, inner cup

4шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

4шт.

8

465492R2

HUB

wheel

4шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

1шт.

69442D

NUT

3/4-16 slt hex.

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

9

651814R1

BEARING CUP

BEARING, outer cup

4шт.

10

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, outer cone

4шт.

10

651815R91GV

BEARING CONE

Value, Cone Bearing

4шт.

11

651194R1

CAP

wheel hub

4шт.
