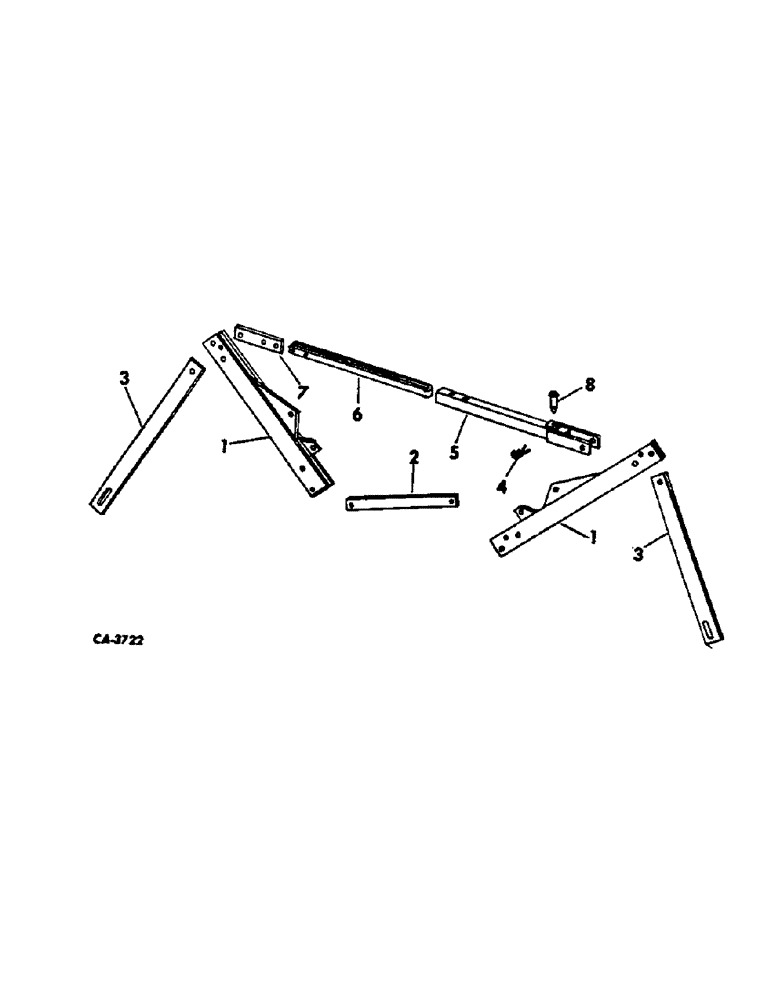

Запчасти Case IH 345 (AH-5) - HYDRAULIC FOLD PACKAGE

1

59249C1

LEVER ASSY, cylinder

2шт.

392194R1

HEADED PIN,3/4" x 2 3/8"

PIN, 3/4 x 2-3/8 std-hd

1шт.

366122R1

WASHER, 25/32 x 1-1/4 x 11 ga C-Z

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

2

493278R1

BAR, equalizer

2шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 znd hex-hd cap

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 znd hex-hd cap

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

9413948

NUT,5/8"-11, GA

5/8-11 cdp hex. lock

2шт.

3

59253C1

BAR, lift

2шт.

392194R1

HEADED PIN,3/4" x 2 3/8"

PIN, 3/4 x 2-3/8 std-hd

1шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

4

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN, quick attachable cotter

1шт.

5

484605R91

TUBE ASSY, stop

1шт.

6

484651R1

STOP, wing extension

1шт.

7

484652R1

BAR, pivot

1шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2 x 2 znd hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

392194R1

HEADED PIN,3/4" x 2 3/8"

PIN, 3/4 x 2-3/8 std-hd

1шт.

20813R1

PIN, 3/4 x 3-1/8 znd std-hd

1шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

2шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

8

484762R1

PIN, lockout

1шт.
