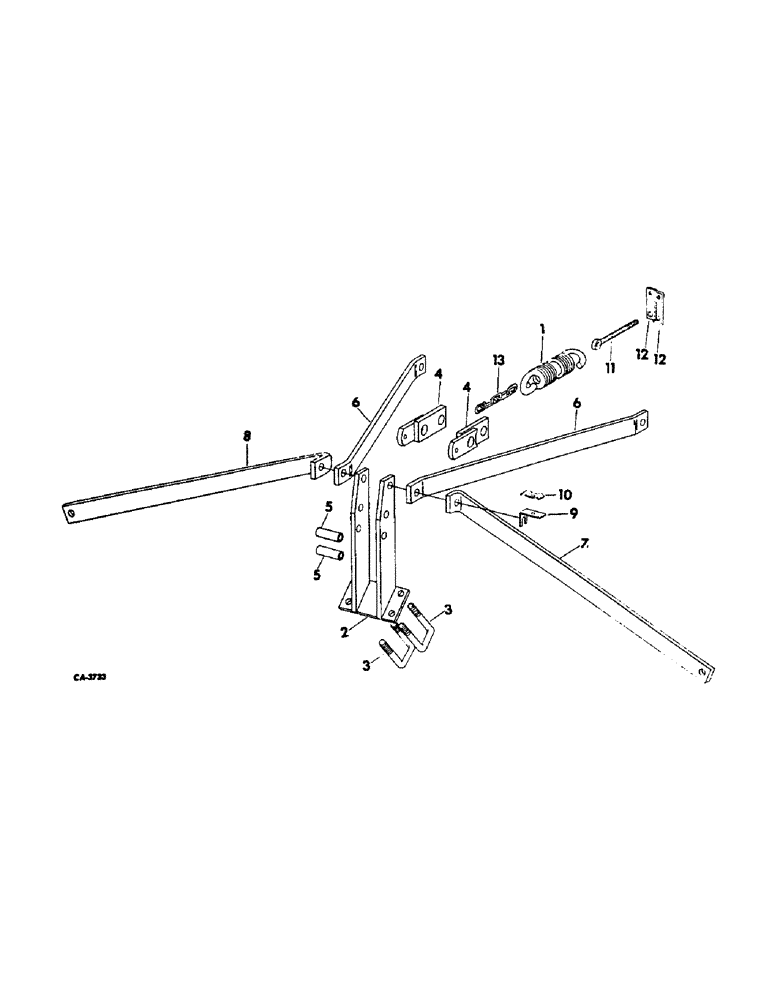

Запчасти Case IH 345 (AH-3) - HITCH AND MAST

1

486995R1

SPRING, return

1шт.

2

59237C1

MAST ASSY

1шт.

3

492903R1

U-BOLT

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

4

59240C1

PIVOT ASSY, spring

2шт.

5

59243C1

SPACER, mast

2шт.

20919R1

BOLT,Hex, 3/4" - 10 x 9", Gr 5

SCREW, 3/4-10 x 9 znd hex-hd cap

1шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

3/4-10 x 6 znd hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

6

59244C1

BAR, inner brace

2шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

7

59245C1

BAR, outer brace LH

1шт.

8

59246C1

BAR, outer brace RH

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

9

471301R2

ANGLE

MOUNTING, hose clamp

1шт.

10

515030R1

CLAMP

hose

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 znd sq-nk crg

1шт.

126032

WING NUT,3/8"-16

NUT, 3/8-16 C-Z wing

1шт.

11

59247C1

BOLT, eye

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

12

29248C1

BAR, clamping

2шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

13

480820R1

CHAIN

1шт.

21899R1

HEADED PIN

PIN, 1/2 x 2-1/2 C-Z std-hd

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.
