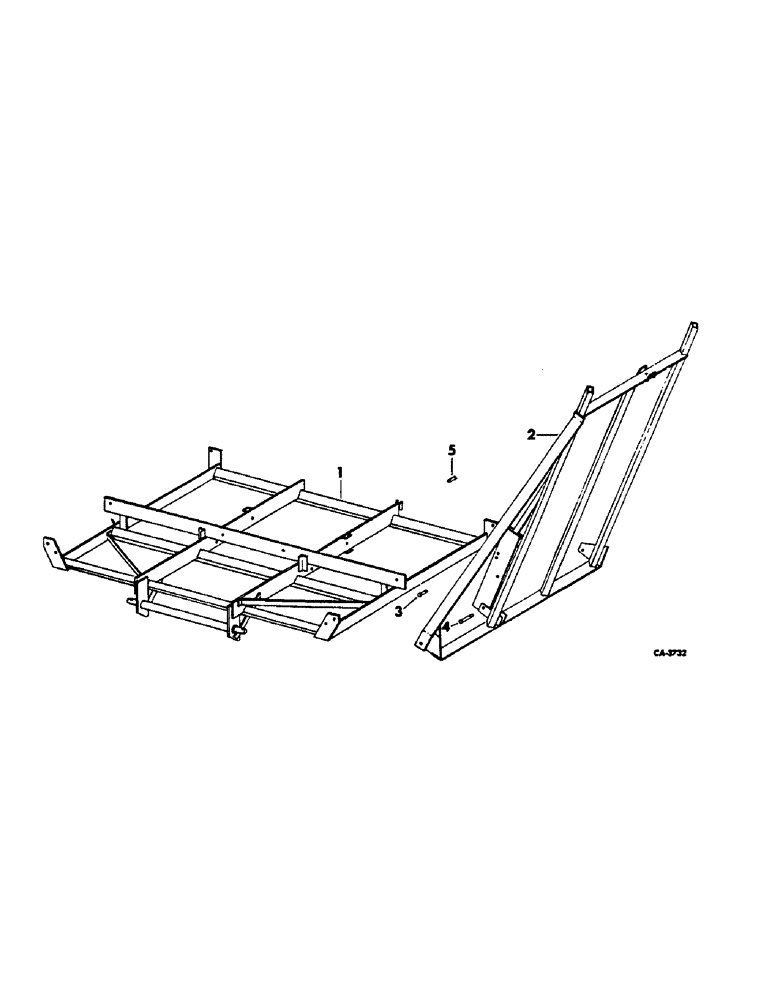

Запчасти Case IH 345 (AH-2) - FRAME

1

59190C1

FRAME ASSY, center 7 foot

1шт.

2

59203C1

FRAME ASSY, wing 4 ft 6 in. LH used w/unit A

1шт.

2

59212C1

FRAME ASSY, wing 5 ft 9 in. LH used w/unit B

1шт.

2

59218C1

FRAME ASSY, wing 7 ft. LH, used w/unit C

1шт.

2

59204C1

FRAME ASSY, wing 4 ft 6 in. RH, used w/unit A

1шт.

2

59213C1

FRAME ASSY, wing 5 ft 9 in. RH, used w/unit B

1шт.

2

59219C1

FRAME ASSY, wing 7 ft RH, used w/unit C

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

2шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

4шт.

462248R1

LOCK NUT

3/4-10 C-Z hex. lock

4шт.

3

21377R1

HEADED PIN,3/4" x 2"

PIN, 3/4 x 2 znd std-hd

2шт.

4

22095R1

PIN

3/4 x 3 znd std-hd

2шт.

366112R1

WASHER

25/32 x 1.215 x 11 ga C-Z

2шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

5

21880R1

PIN

5/8 x 1-7/8 znd std-hd

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.
